Engine Controls Components

Engine Controls Components:



Engine Controls Components:



Top Of The Engine:

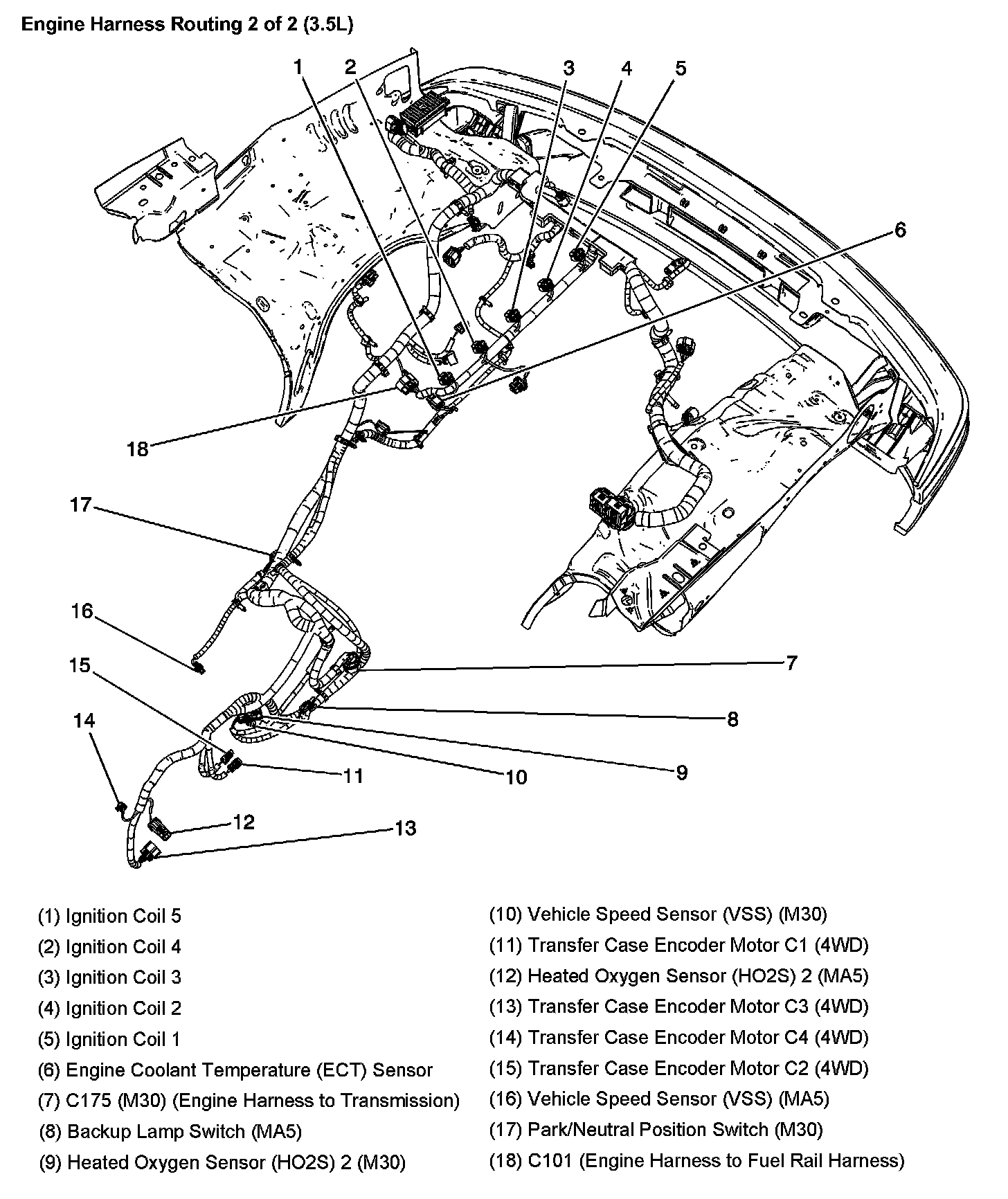

Engine Harness Routing (3.5L) Part 2:
