Steering Controls Schematics

Fig 1: Power, Ground, And DLC Schematics
GM687601Courtesy of GENERAL MOTORS CORP.

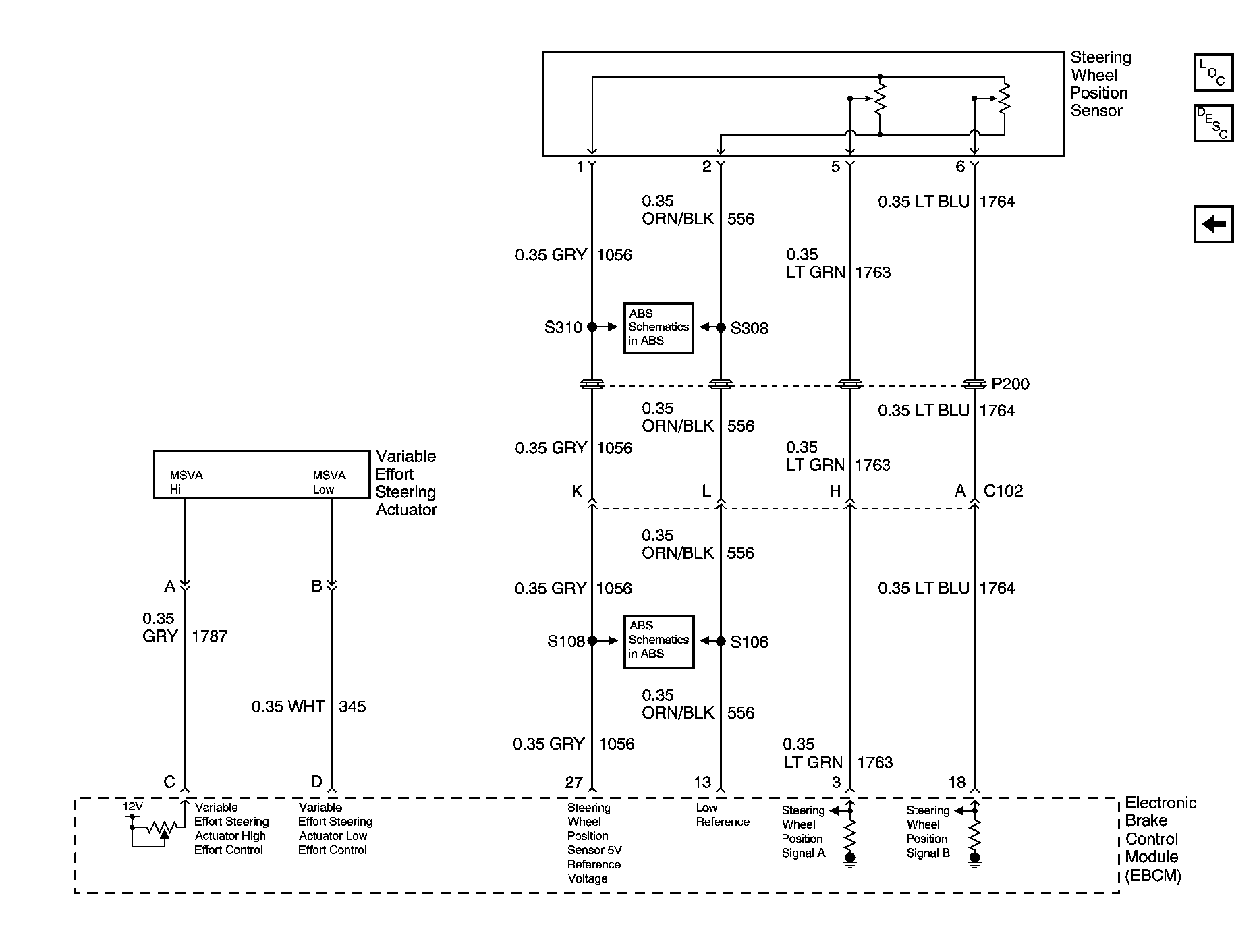

Fig 2: Steering Wheel Position Sensor Schematics
GM687611Courtesy of GENERAL MOTORS CORP.
