Power Door Systems Component Views

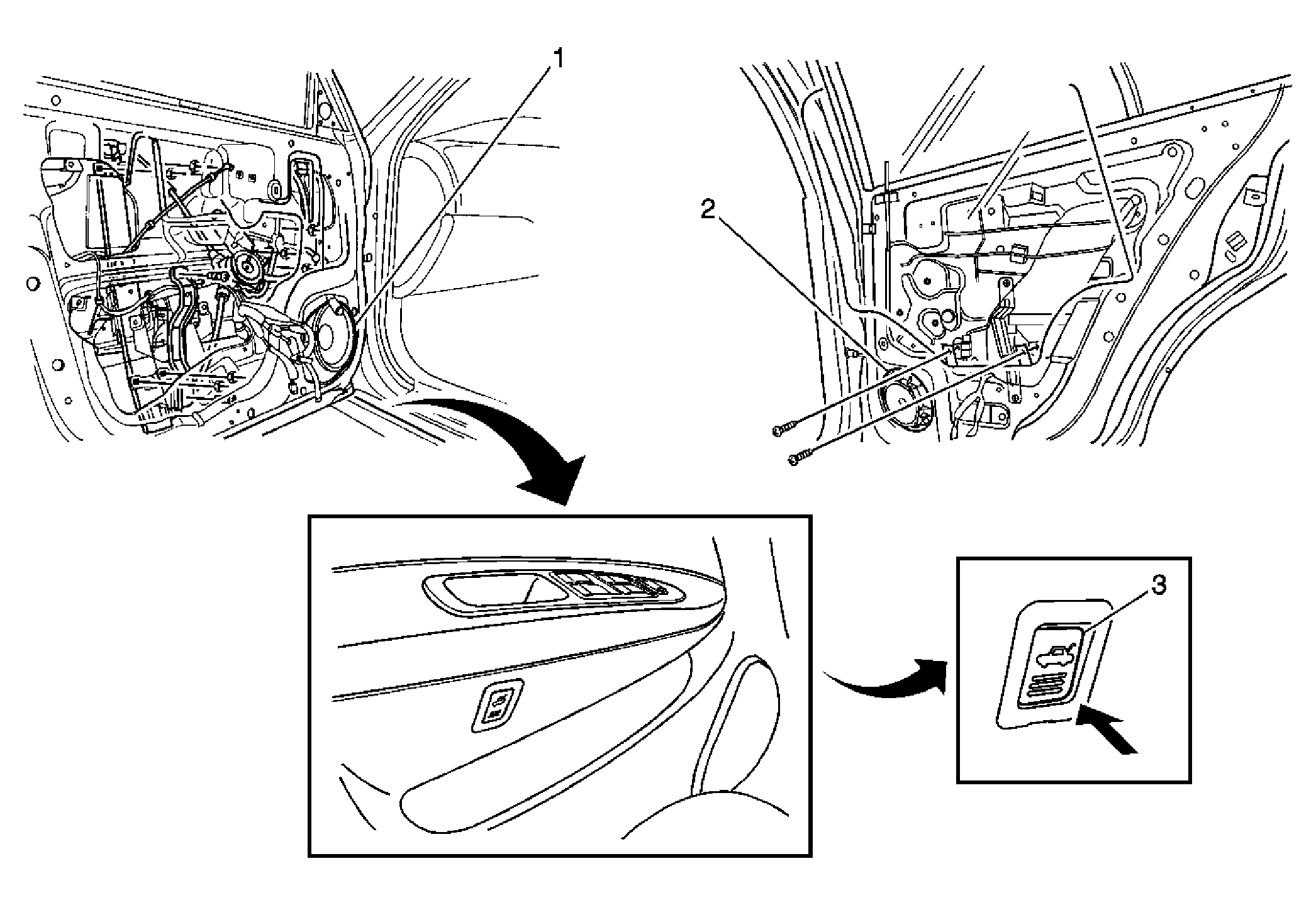

Fig 1: View Of Door Speakers And Rear Compartment Lid Release Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Speaker - Right Front, Left Front
2	Door Speaker - Left Rear, Right Rear
3	Rear Compartment Lid Release Switch

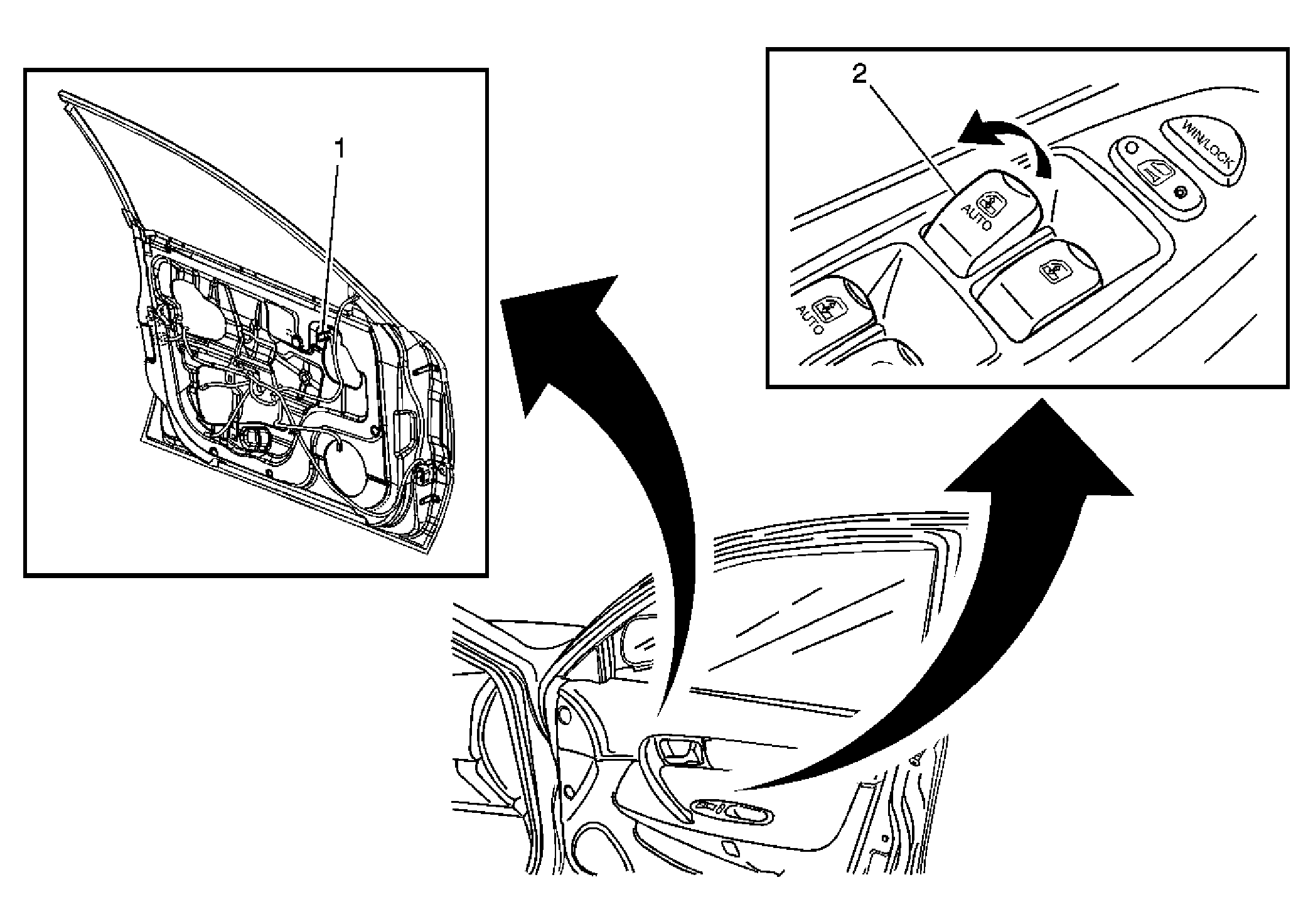

Fig 2: View Of Window Motor And Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Motor - Left Front, Right Similar
2	Window Switch - Right Front, Left Front, and Rear Similar

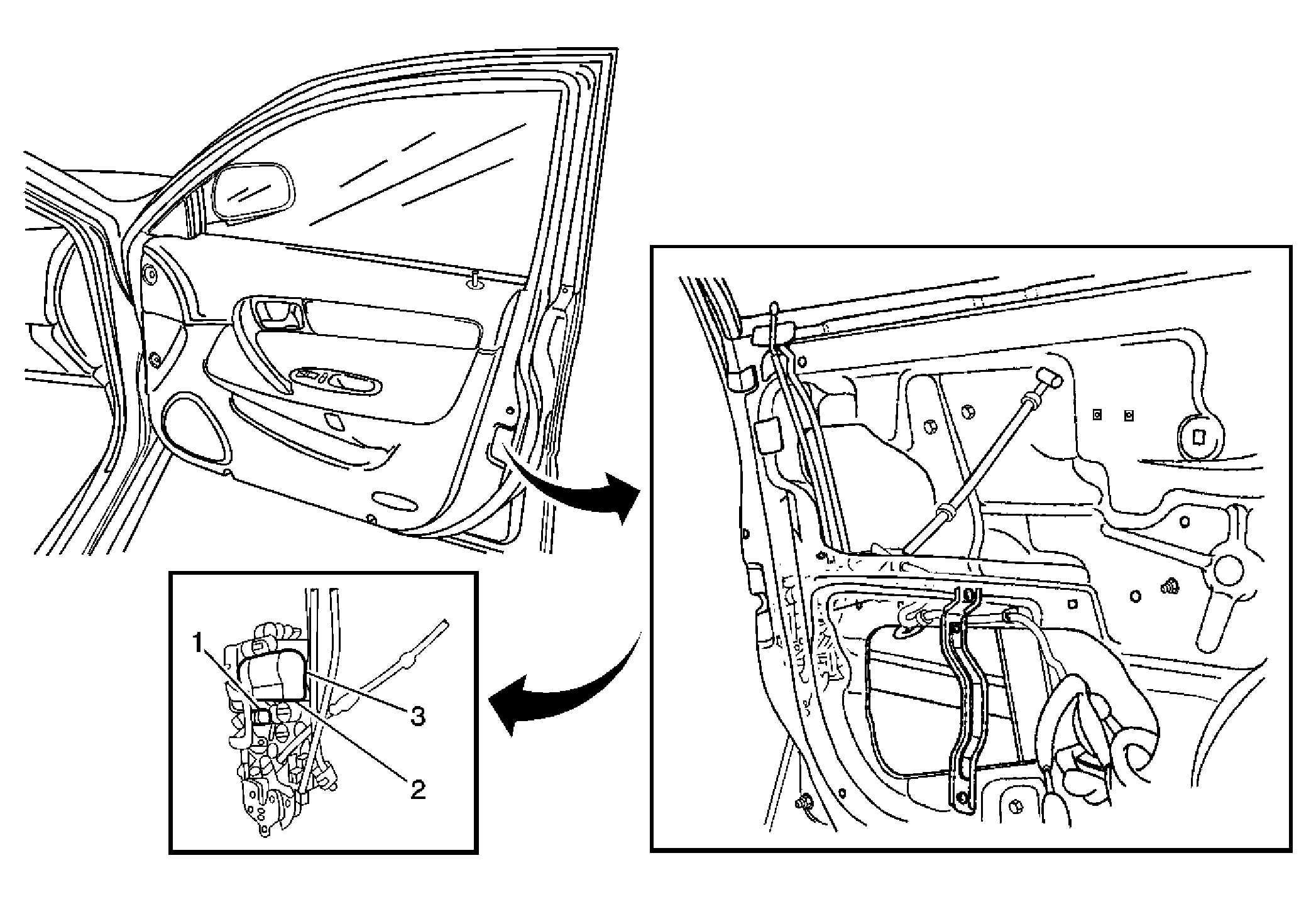

Fig 3: View Of Door Tamper Switch, Actuator And Jamb Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch (Tamper Switch) (C3)
2	Door Latch (Actuator) - Left Front, Right Front (C1)
3	Door Latch (Ajar Switch) (C2)

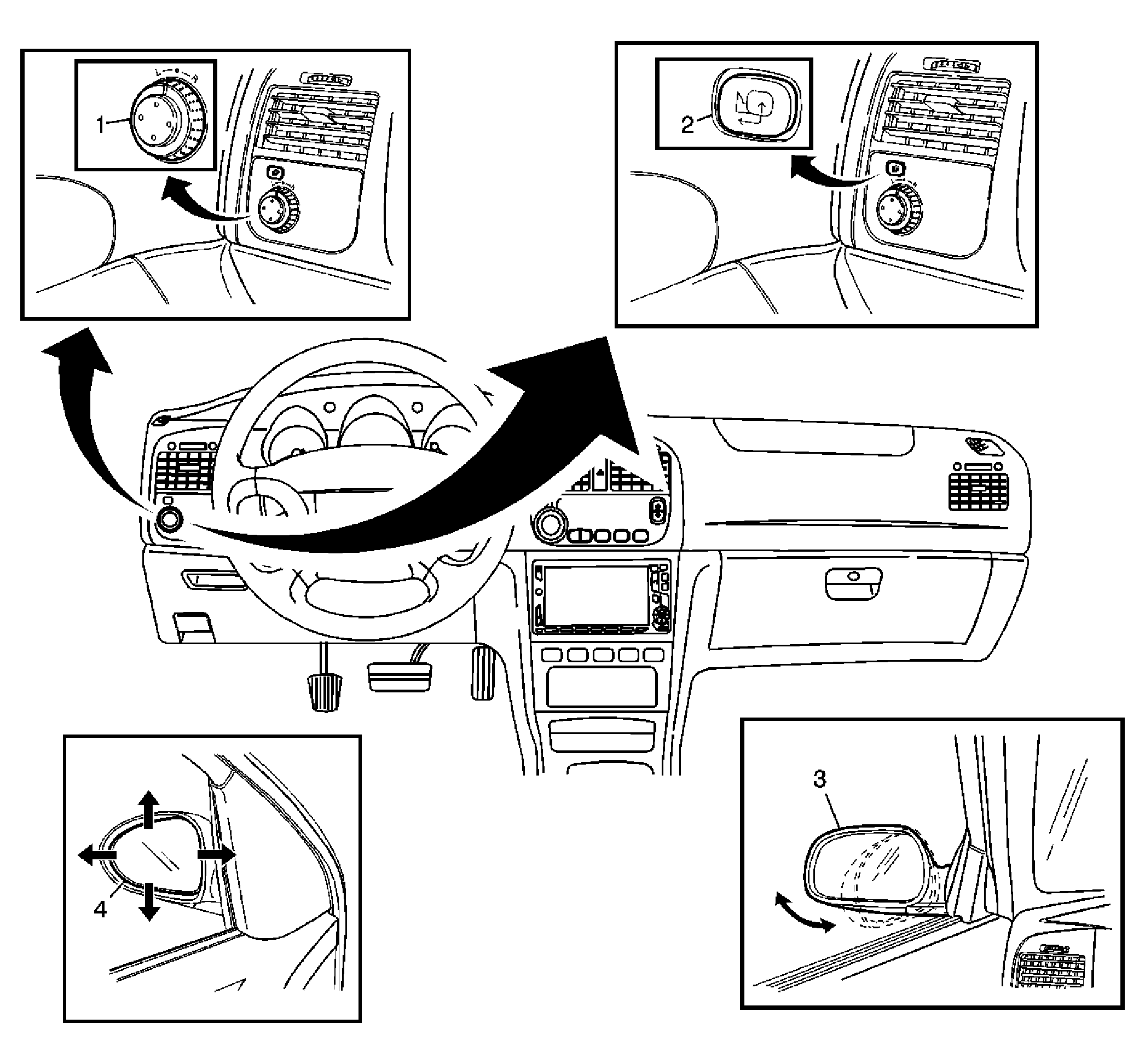

Fig 4: View Of Mirrors And Mirror Switches

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Mirror Control Switch
2	Folding Mirror Switch
3	Outside Rearview Mirror Power Folding Mirror Module
4	Outside Rearview Mirror/Power

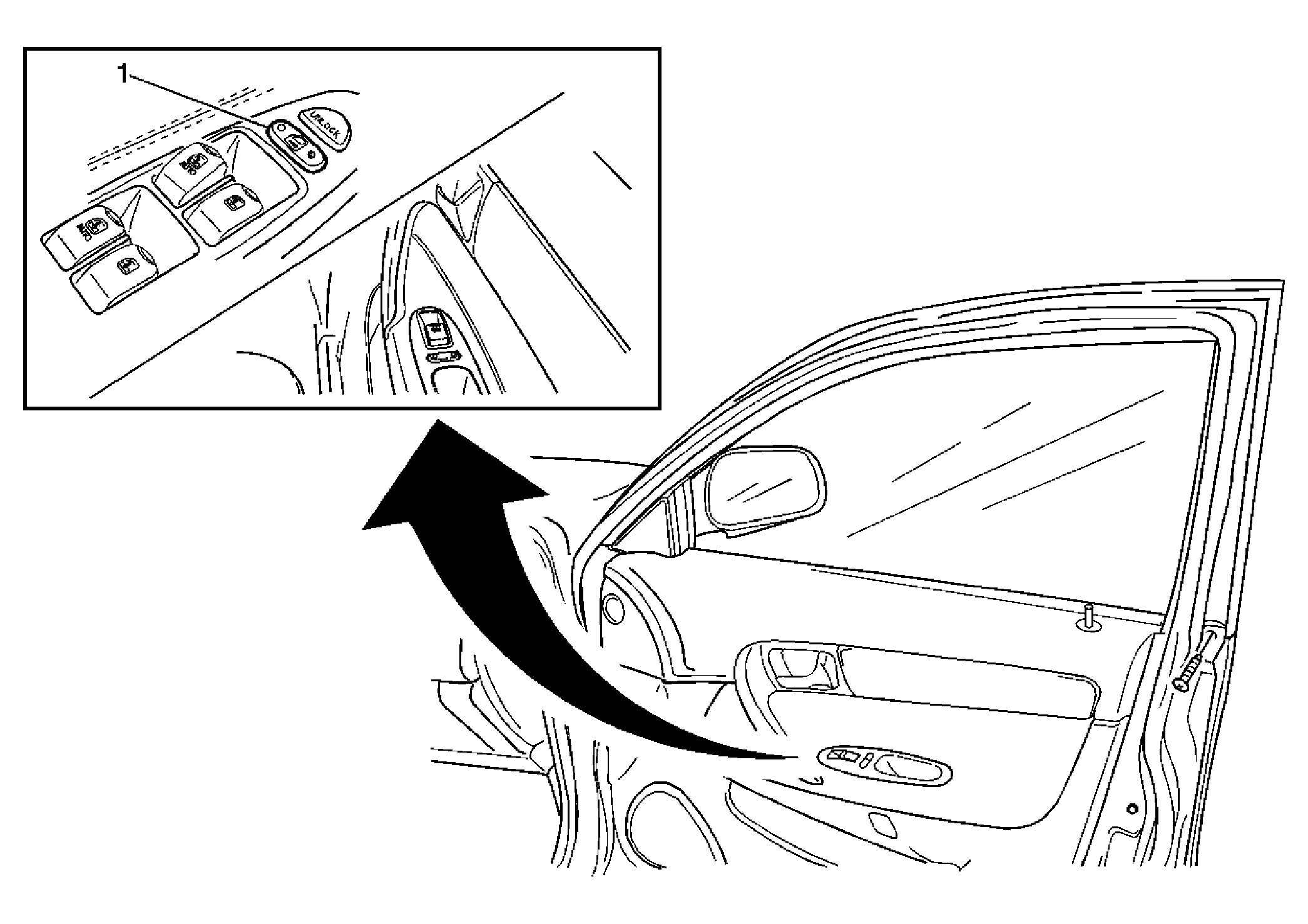

Fig 5: View Of Door Lock Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Left Front, Right Front

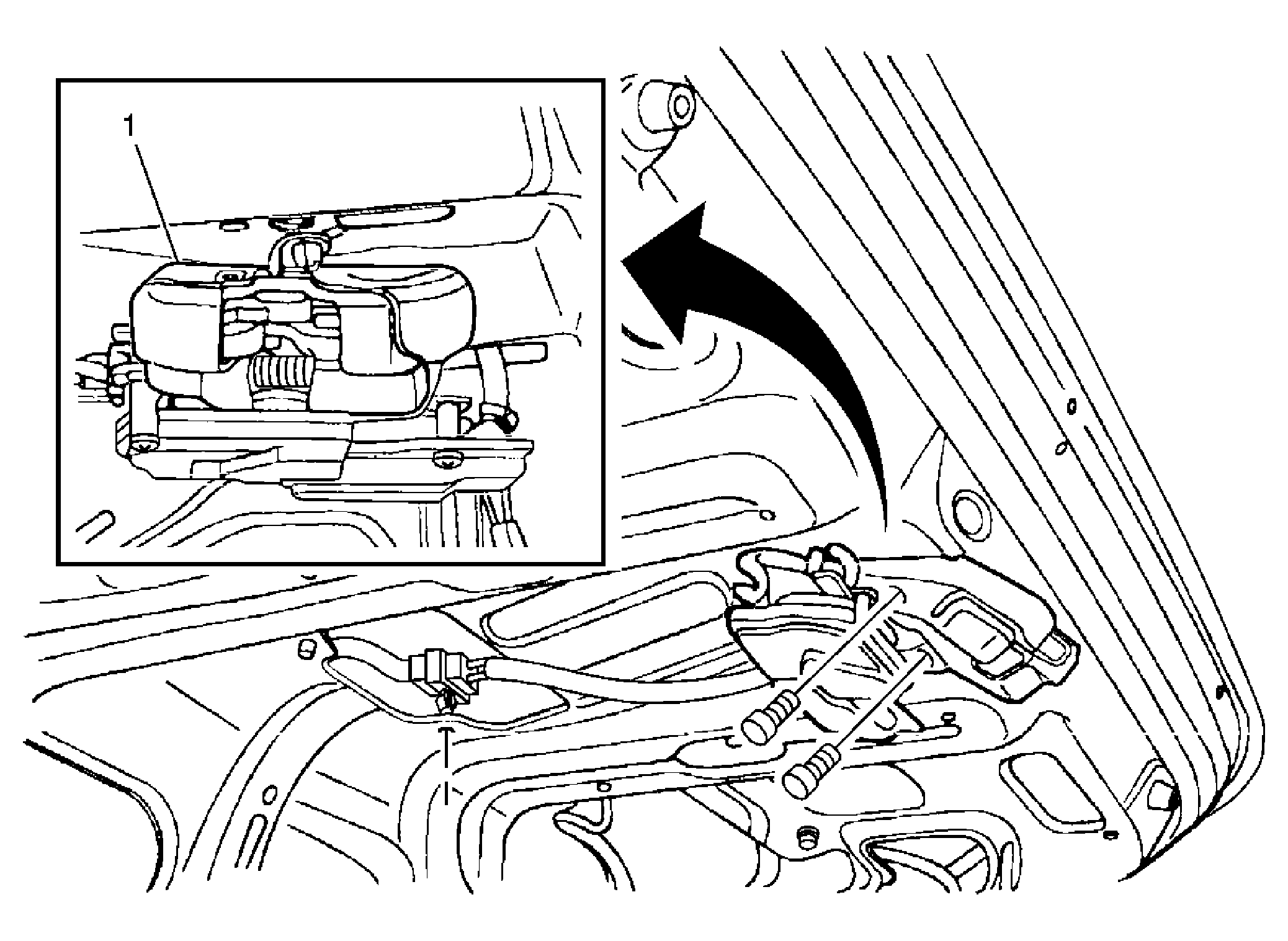

Fig 6: View Of Rear Compartment Lid Latch And Screws

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Compartment Lid Latch
