Installation Procedure

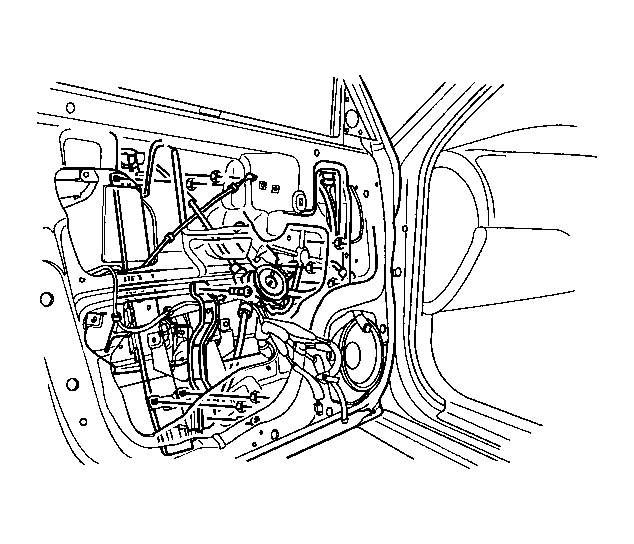

    Fig 1: View Of Window Regulator, Electrical Connector And Attachment Nuts
    GM1256835Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the window regulator with the nuts.

    Tighten:  Tighten the window regulator nuts to 10 N.m (89 lb in)  .

  2. Connect the electrical connector.
  3. Install the door glass. Refer to Window Replacement - Front Door  in Stationary Windows.
  4. Connect the negative battery cable.
