Engine Mechanical Specifications

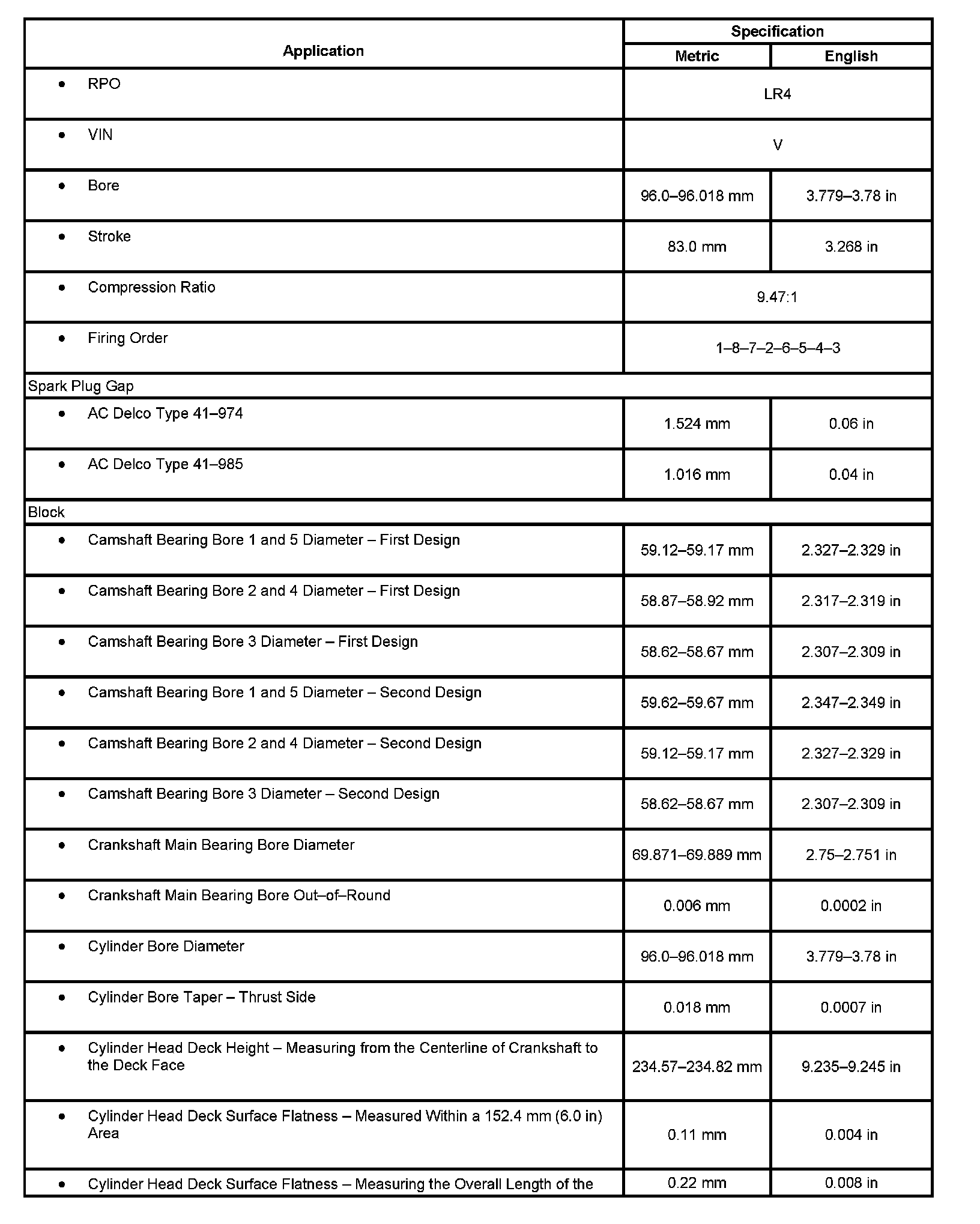

Engine Mechanical Specifications, Part 1:

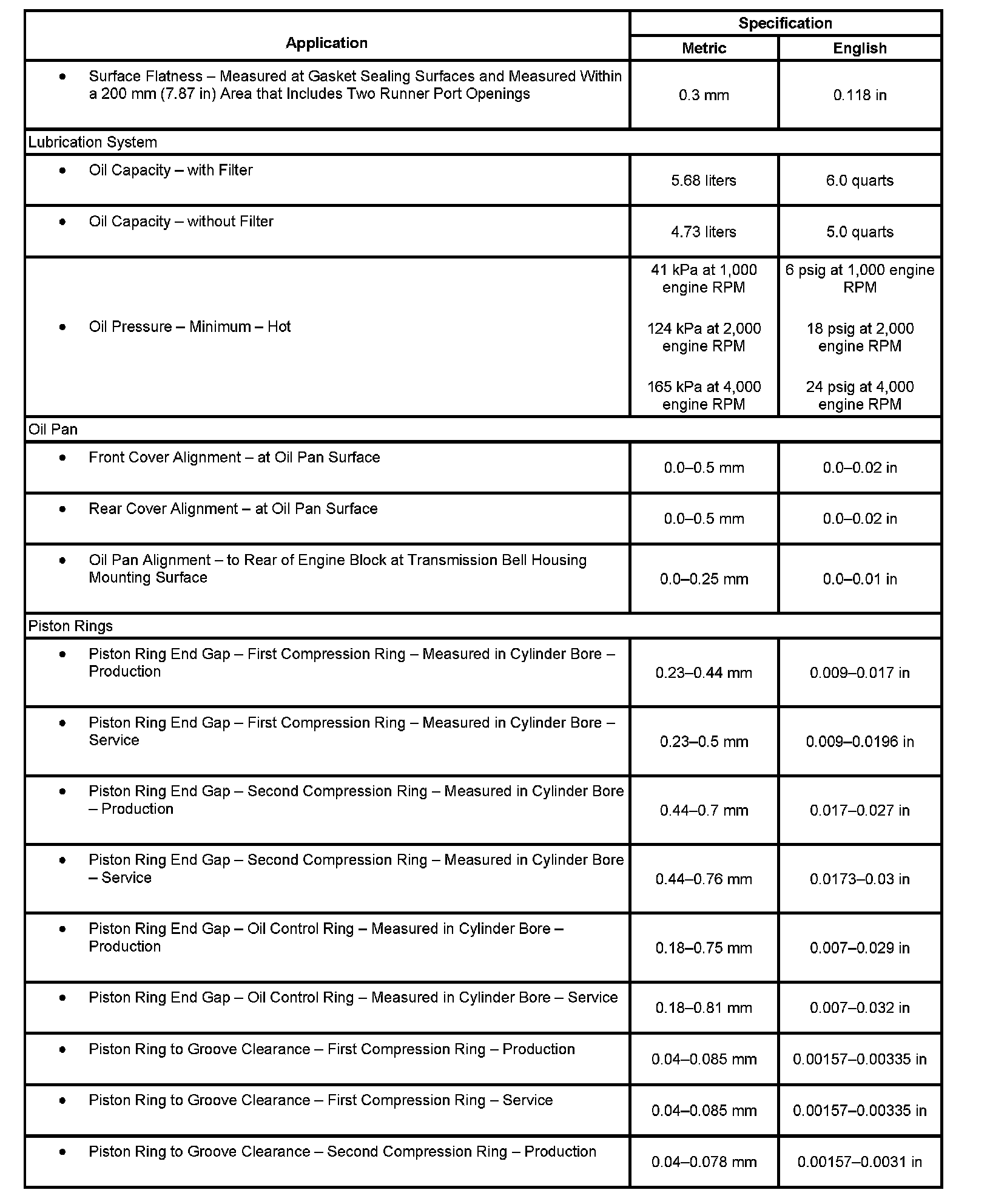

Engine Mechanical Specifications, Part 2:

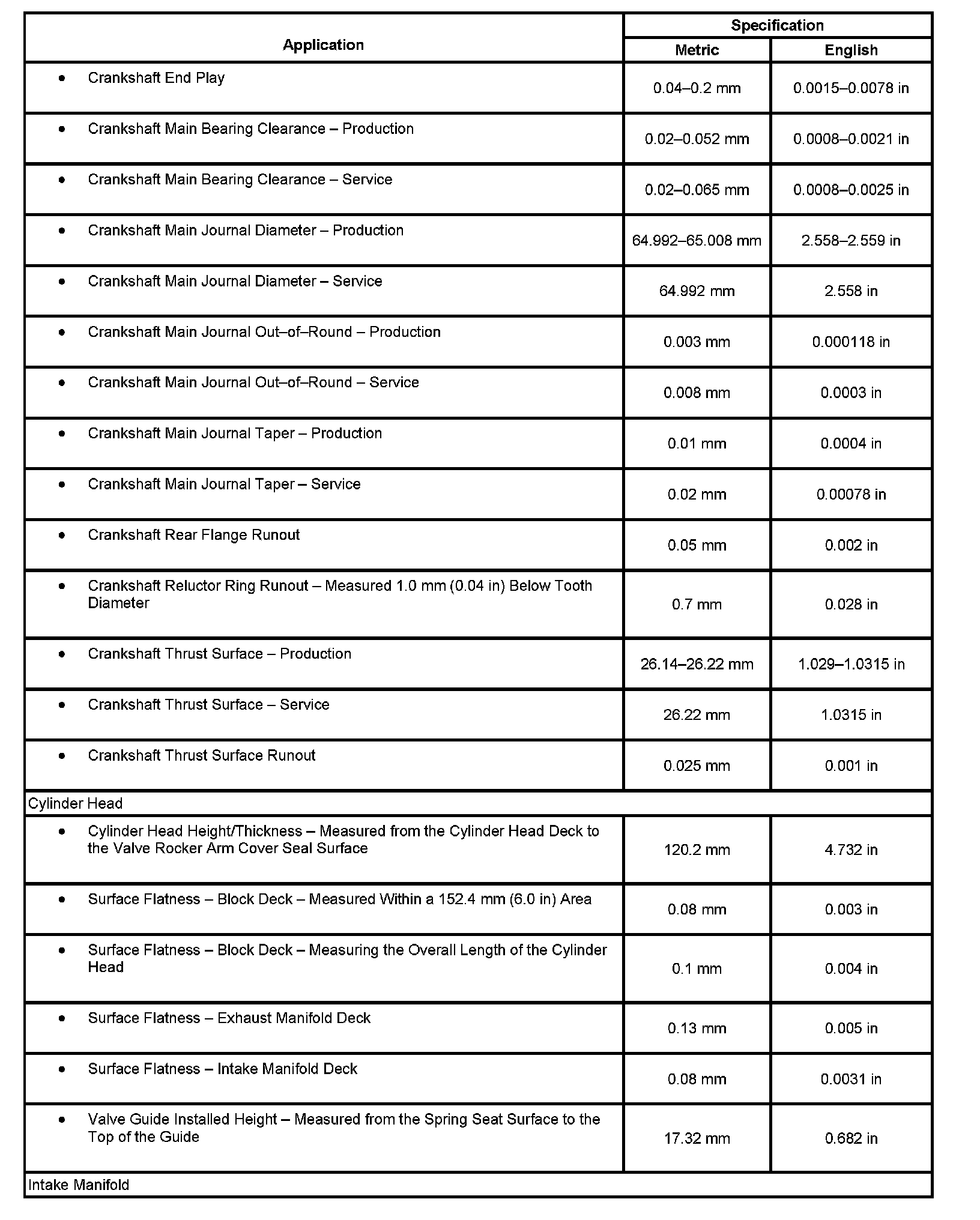

Engine Mechanical Specifications, Part 3:

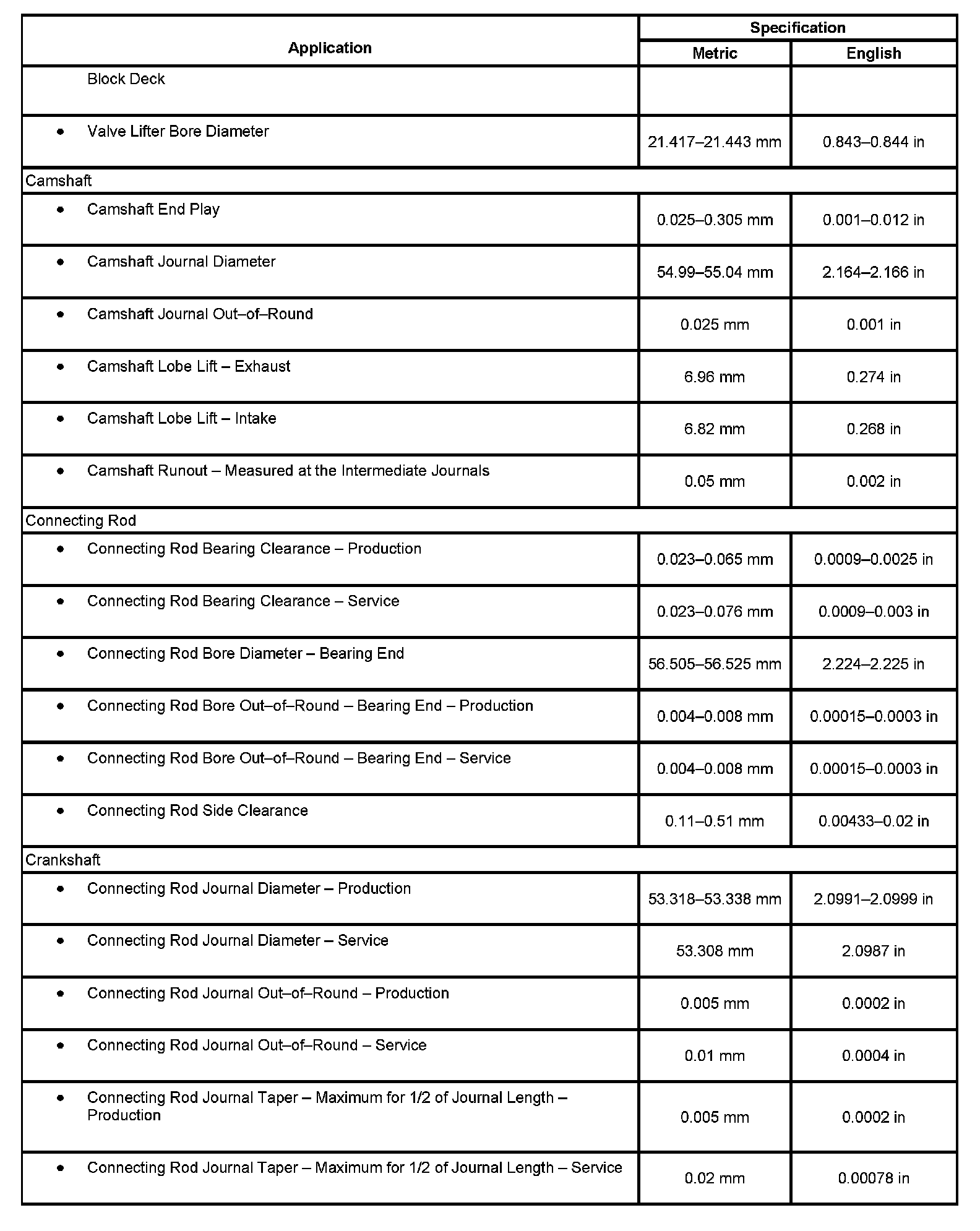

Engine Mechanical Specifications, Part 4:

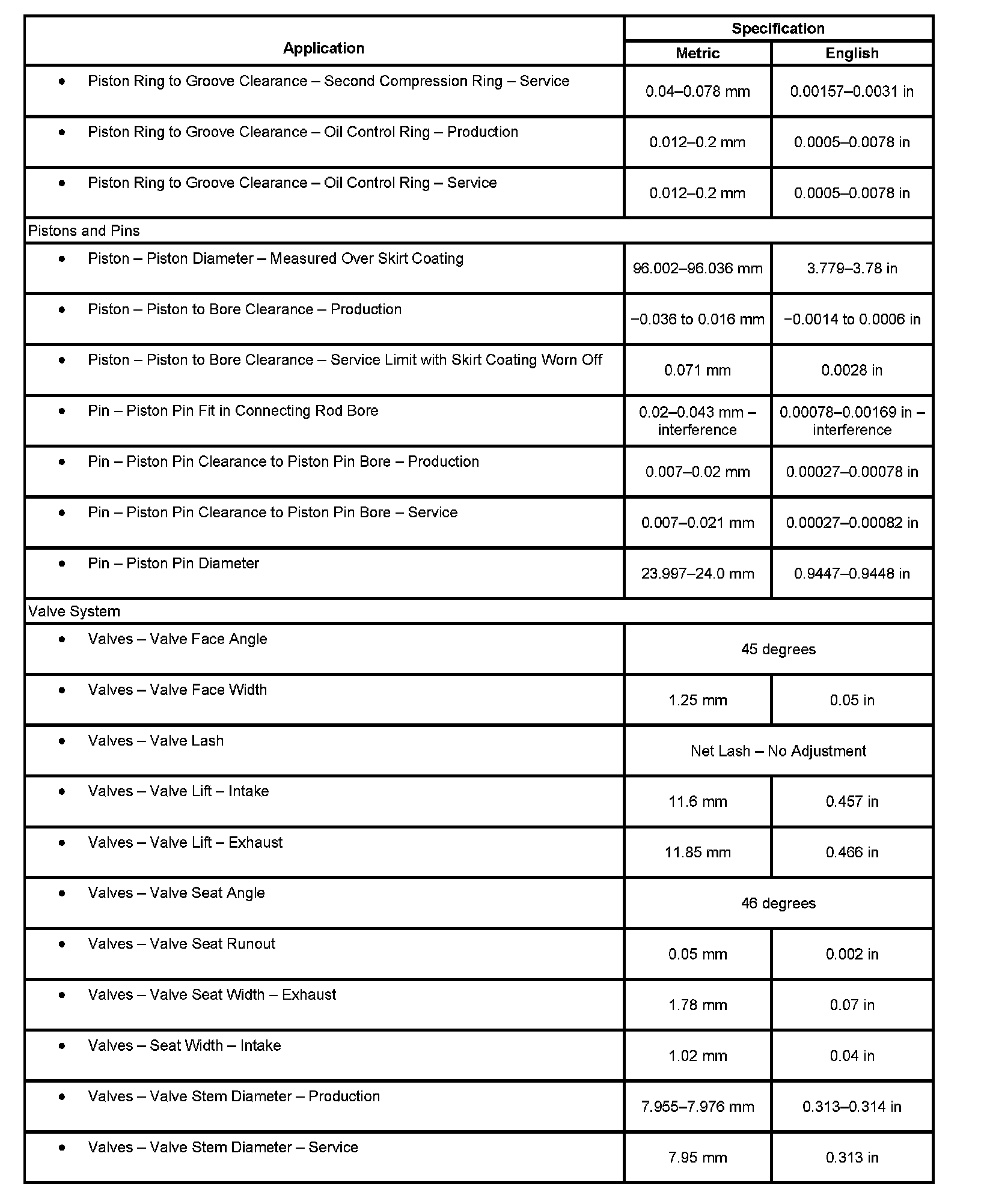

Engine Mechanical Specifications, Part 5:



Engine Mechanical Specifications, Part 6:



Engine Mechanical Specifications, Part 7:
