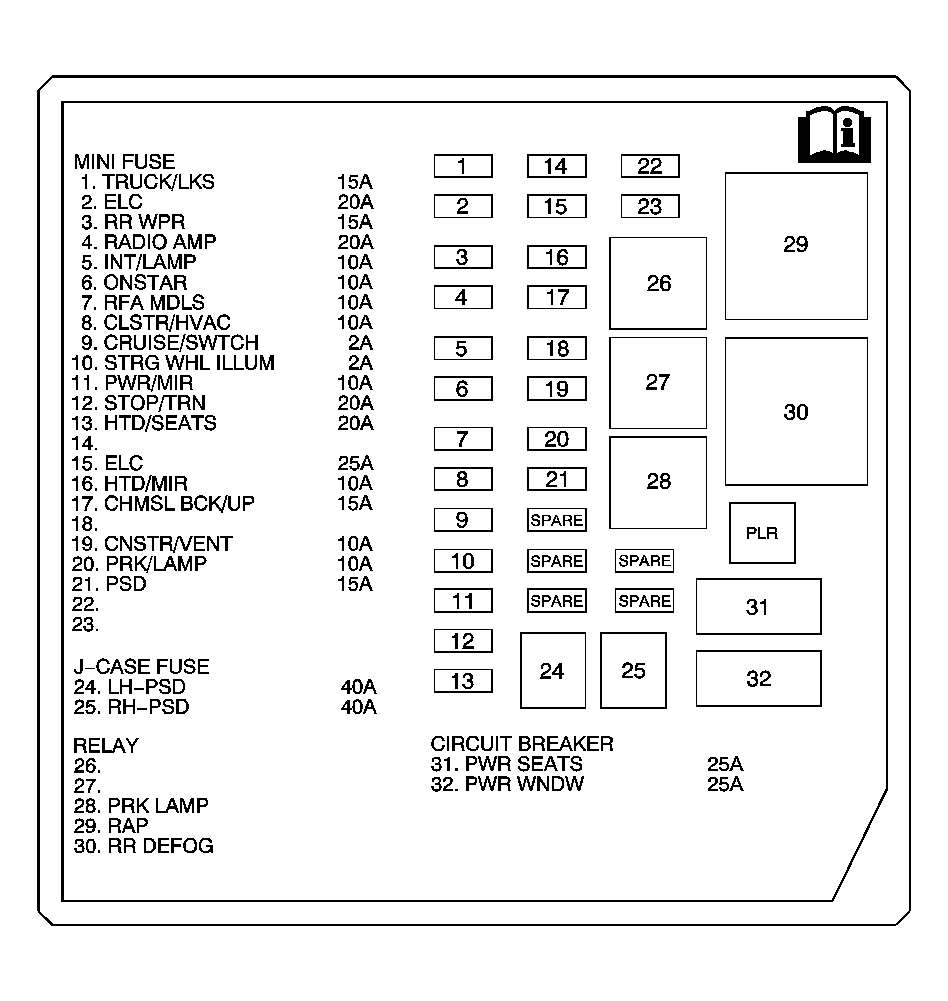

Fuse Block - I/P Label
WARNING: This page is about a different car, the 2006 Pontiac Montana SV6, 2006 Chevrolet Uplander, and 2006 Buick Terraza. However, it is still accessible from the selected car via links, so may be relevant.
Fuse Block - I/P Label Usage
| No. | Device | Rating | Description |
|---|---|---|---|
| 1 | TRUNK/LKS Fuse | 15A | BCM |
| 2 | ELC Fuse | 20A | ALC Sensor, Multifunction Switch - Overhead Console and Rear Window Washer Fluid Pump Relay |
| 3 | RR WPR Fuse | 15A | Rear Window Wiper Motor |
| 4 | RADIO AMP Fuse | 20A | DVD Player and Radio |
| 5 | INT/LAMP Fuse | 10A | BCM |
| 6 | ONSTAR Fuse | 10A | DLC and VCU |
| 7 | RFA MDLS Fuse | 10A | Digital Radio Receiver and RCDLR |
| 8 | CLSTR/HVAC Fuse | 10A | HVAC Control Module and IPC |
| 9 | CRUISE/SWTCH Fuse | 2A | Cruise Control Lever |
| 10 | STRG WHL ILLUM Fuse | 2A | Steering Wheel Control Switch Assembly - Left and Steering Wheel Control Switch Assembly - Right |
| 11 | PWR/MIR Fuse | 10A | Garage Door Opener and Outside Rearview Mirror Switch |
| 12 | STOP/TRN Fuse | 20A | BCM |
| 13 | HTD/SEATS Fuse | 20A | Heated Seat Relay - Driver and Heated Seat Relay - Passenger |
| 14 | - | - | Not Used |
| 15 | ELC Fuse | 25A | ALC Compressor, ALC Inflator Air Switch, ALC Sensor, ALC Solenoid Valve and Trailer Wiring Blunt Cut |
| 16 | HTD/MIR Fuse | 10A | Outside Rearview Mirror - Driver and Outside Rearview Mirror - Passenger |
| 17 | CHMSL BCK/UP Fuse | 15A | BCM |
| 18 | - | - | Not Used |
| 19 | CNSTR/VENT Fuse | 10A | EVAP Canister Vent Solenoid |
| 20 | PRK/LAMP Fuse | 10A | PRK LAMP Relay |
| 21 | PSD Fuse | 15A | LSDM and RSDM |
| 22-23 | - | - | Not Used |
| 24 | LH-PSD Fuse | 40A | LSDM |
| 25 | RH-PSD Fuse | 40A | RSDM |
| 26-27 | - | - | Not Used |
| 28 | PRK LAMP Relay | - | License Lamp - Left, License Lamp - Right, Tail Lamp - Left, Tail Lamp - Right, Tail/Stop and Turn Signal Lamp - Left, Tail/Stop and Turn Signal Lamp - Right and Trailer Wiring Blunt Cut |
| 29 | RAP Relay | - | ELC and RR WPR Fuses and PWR WNDW Circuit Breaker |
| 30 | RR DEFOG Relay | - | HTD/MIR Fuse and Rear Window Defogger Grid |
| 31 | PWR SEATS Circuit Breaker | 25A | Seat Adjuster Switch - Driver or Memory Seat Module - Driver and Seat Adjuster Switch - Passenger |
| 32 | PWR WNDW Circuit Breaker | 25A | Window Switch - Driver and Window Switch - Passenger |
