Body Control Module Replacement

WARNING: This page is about a different car, the 2010 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

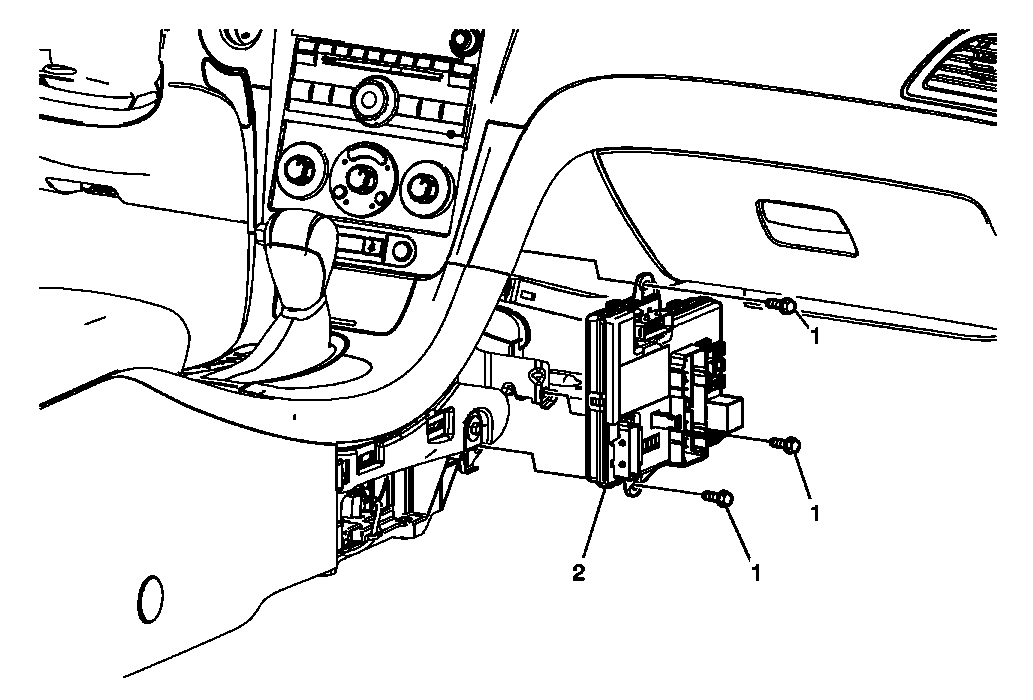

Fig 1: View Of Body Control Module

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front floor console extension panel - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side .
1	Body Control Module Bolt Screw (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten: 1.5 N.m (13 lb in)
2	Body Control Module Procedure If the scan tool can communicate with the BCM that is being replaced, select BCM copy and flash to copy information from that BCM before removal. Disconnect the electrical connections. Refer to Control Module References for programming and set up procedures.

Callout

Component Name

Preliminary Procedure:
Remove the front floor console extension panel - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side .

Body Control Module Bolt Screw (Qty: 3)

CAUTION: Refer to Fastener Caution .

Tighten: 1.5 N.m (13 lb in)

Body Control Module

Procedure

If the scan tool can communicate with the BCM that is being replaced, select BCM copy and flash to copy information from that BCM before removal.
Disconnect the electrical connections.
Refer to Control Module References for programming and set up procedures.
