Power Roof Systems Component Views
WARNING: This page is about a different car, the 2004 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Inside Rearview Mirror Connector |
| 2 |
LH Courtesy/Reading Lamp (TR9) |
| 3 |
RH Courtesy/Reading Lamp (TR9) |
| 4 |
Sunroof Switch |

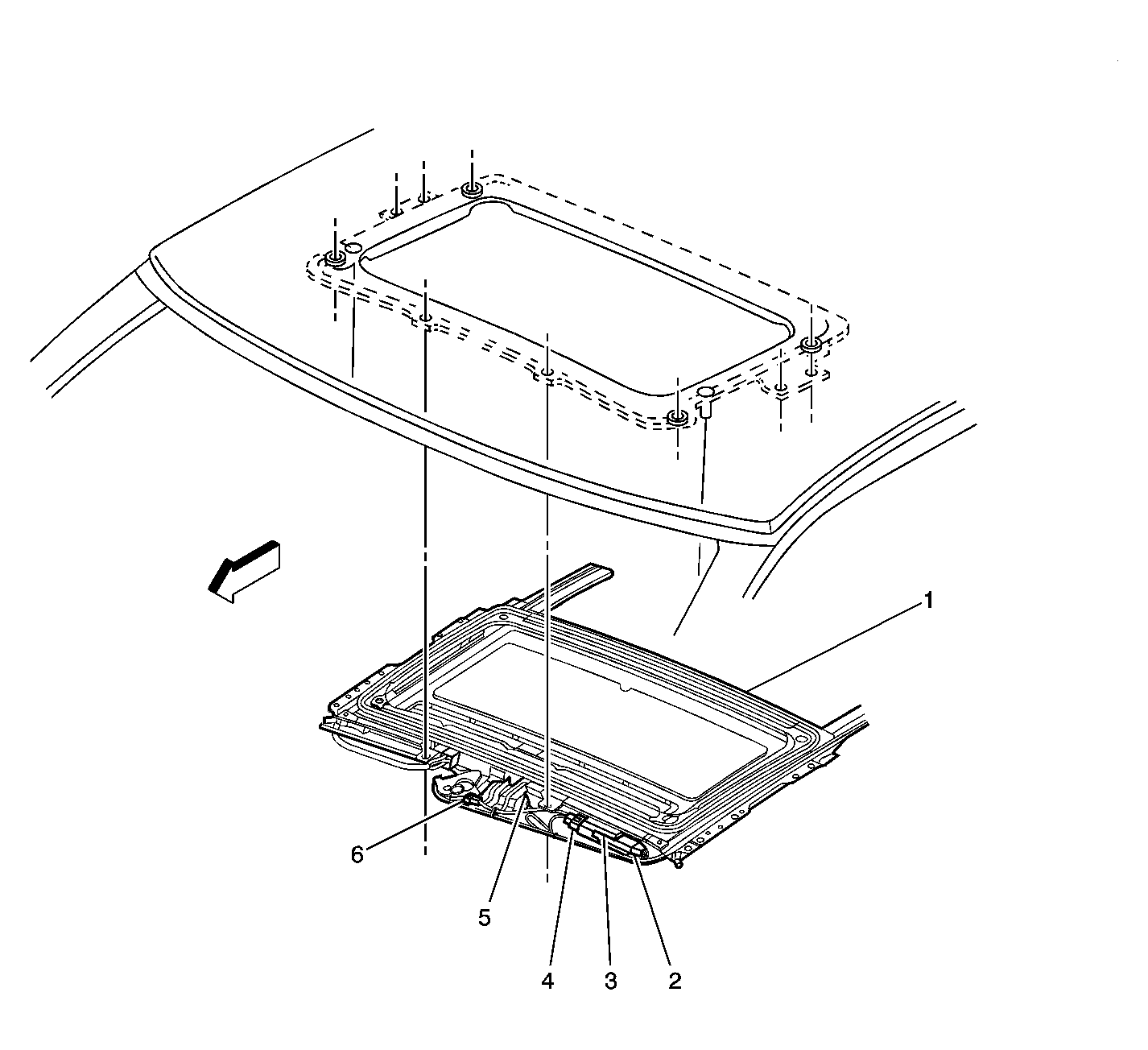

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Power Sunroof |
| 2 |
Sunroof Module - C1 |
| 3 |
Sunroof Module |
| 4 |
Sunroof Module - C2 |
| 5 |
Sunroof Motor |
| 6 |
Sunroof Motor - C2 |
