Entertainment/Communication Component Views

WARNING: This page is about a different car, the 2007 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

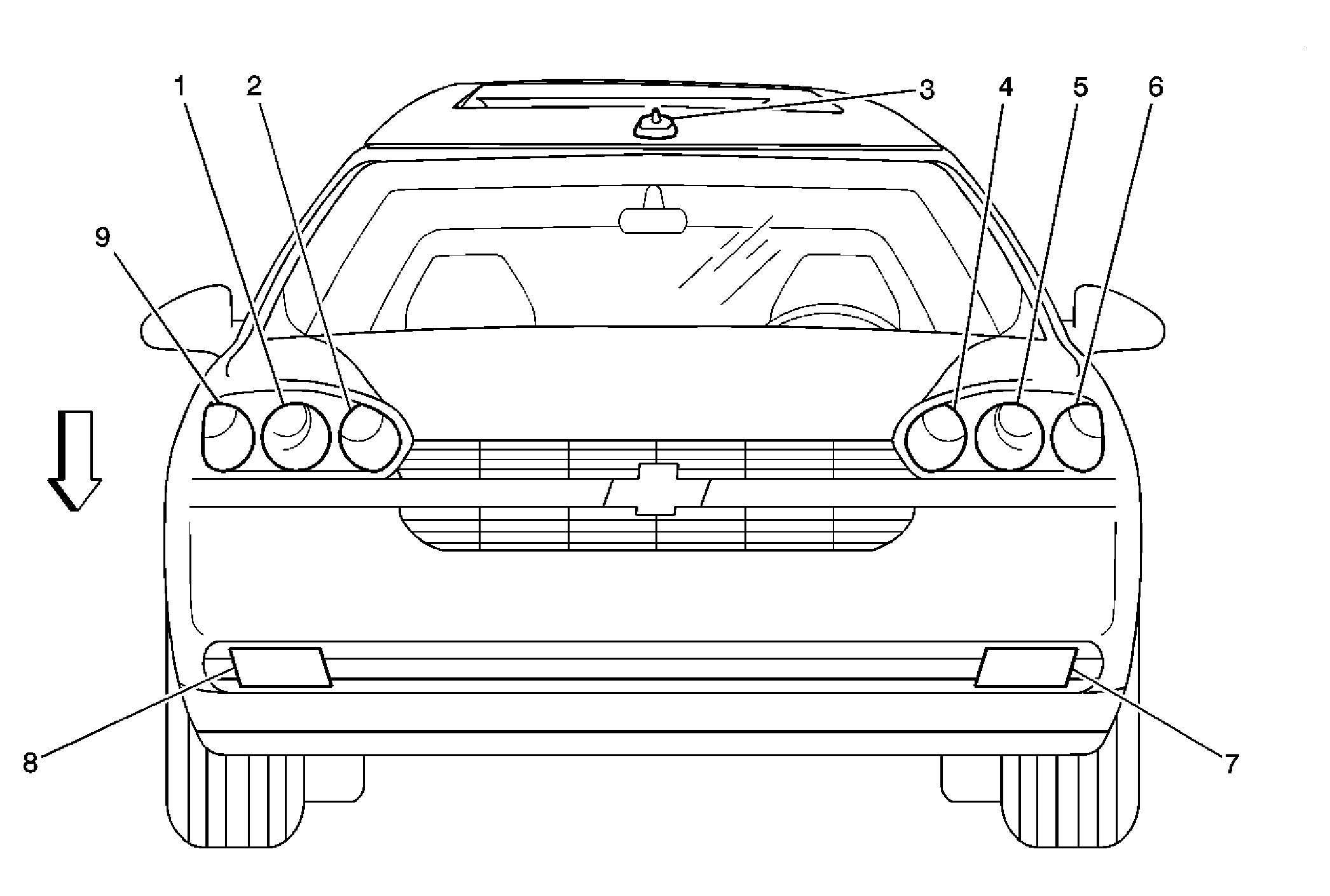

Fig 1: Front of Vehicle

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Cellular/Navigation and Digital Radio Antenna (UE1/U2K)
4	Headlamp - High Beam - Left
5	Headlamp - Low Beam - Left
6	Park/Turn Signal Lamp - LF
7	Fog Lamp - LF (T96)
8	Fog Lamp - RF (T96)
9	Park/Turn Signal Lamp - RF

Fig 2: Forward Overhead View Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Courtesy/Reading Lamps - Front, Left Reading
2	Cellular Telephone Microphone (UE1)
3	Sunroof Switch (CF5)
4	Garage Door Opener Transmitter (UG1)
5	Courtesy/Reading Lamps - Front, Right Reading
6	Dome/Reading Lamp
7	Sunroof (CF5)
8	Vanity Mirror Lamp - Right (DH6)
9	Inside Rearview Mirror
10	OnStar Keypad (UE1)
11	Vanity Mirror Lamp - Left (DH6/D74)

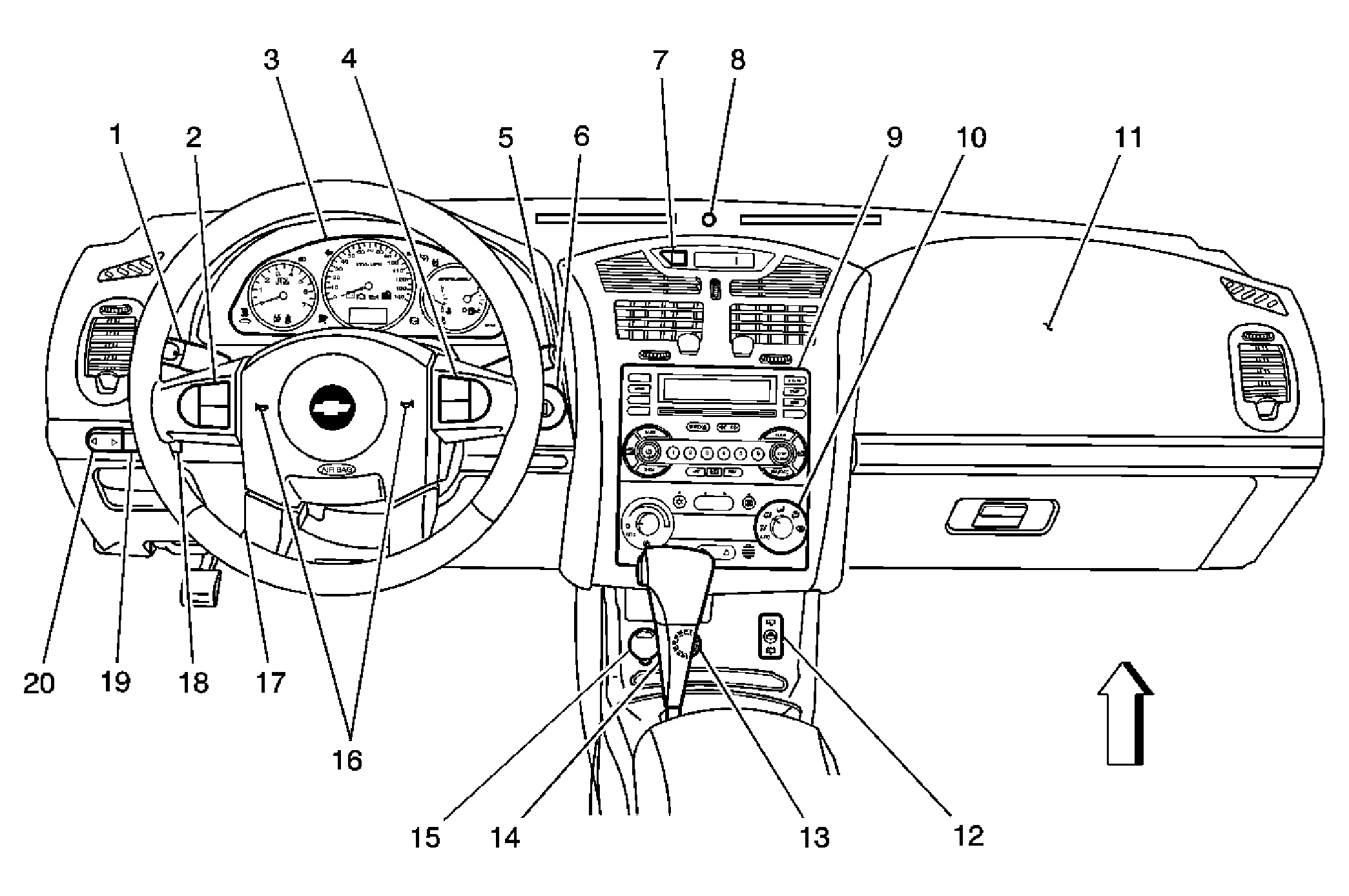

Fig 3: Instrument Panel

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Steering Wheel Controls - Left (K34/UK3)
3	Instrument Panel Cluster (IPC)
4	Steering Wheel Controls - Right (K34/UK3)
5	Windshield Washer/Wiper Switch
6	Ignition Switch
7	Hazard Switch
8	Ambient Light Sensor
9	Radio
10	HVAC Control Module
11	Inflatable Restraint I/P Module
12	Rear Wiper/Washer Switch (C25)
13	Auxiliary Power Outlet - Front (w/o NW7, NW9)
14	Transmission Shifter
15	Cigar Lighter
16	Horn Buttons/Inflatable Restraint Steering Wheel Module
17	Data Link Connector (DLC)
18	Fog Lamp Switch
19	Dimmer Switch
20	Adjustable Pedals Position Switch (JF4)

Fig 4: Behind Right Side of Instrument Panel Compartment Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communication Interface Module (VCIM)(UE1)

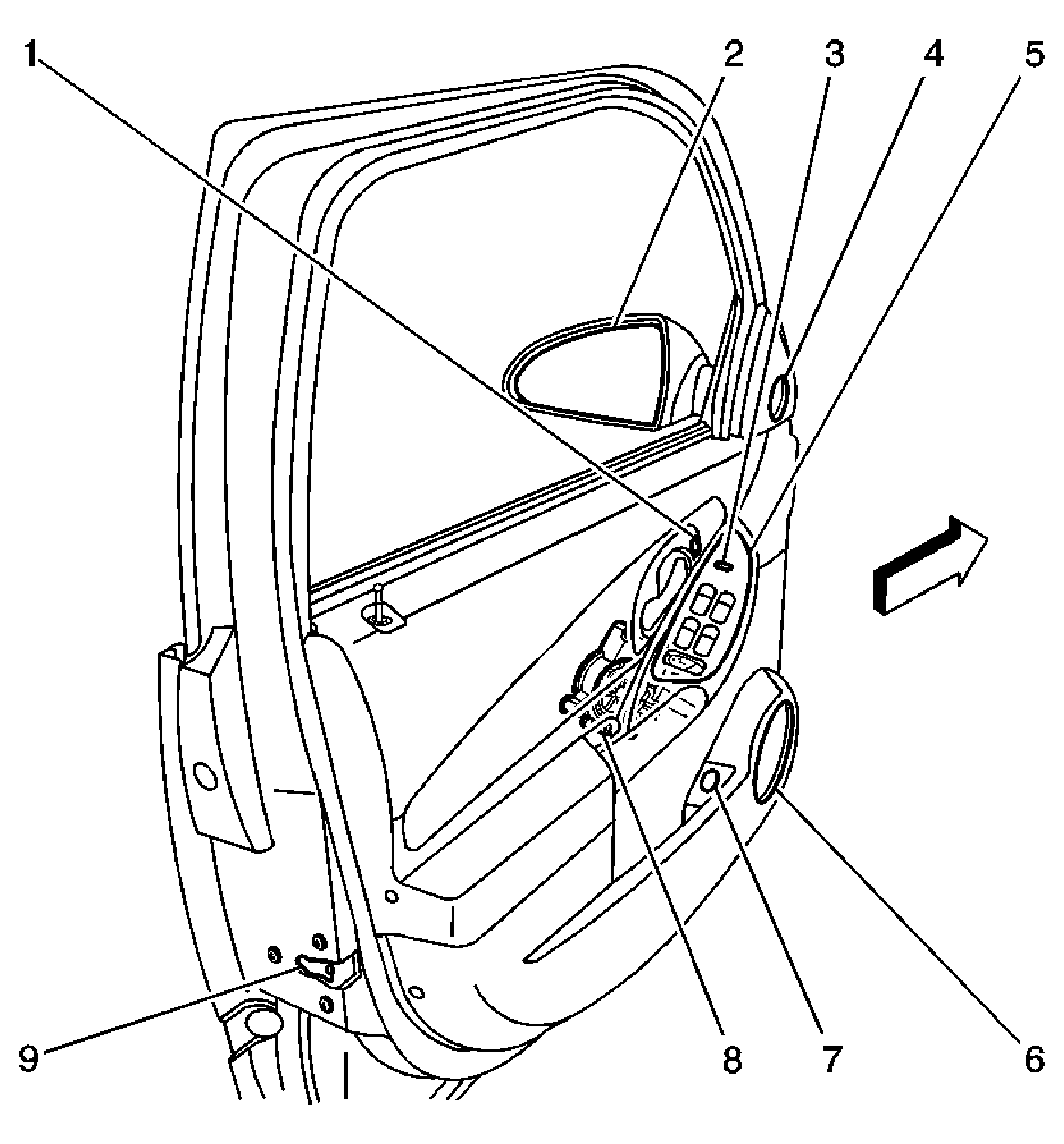

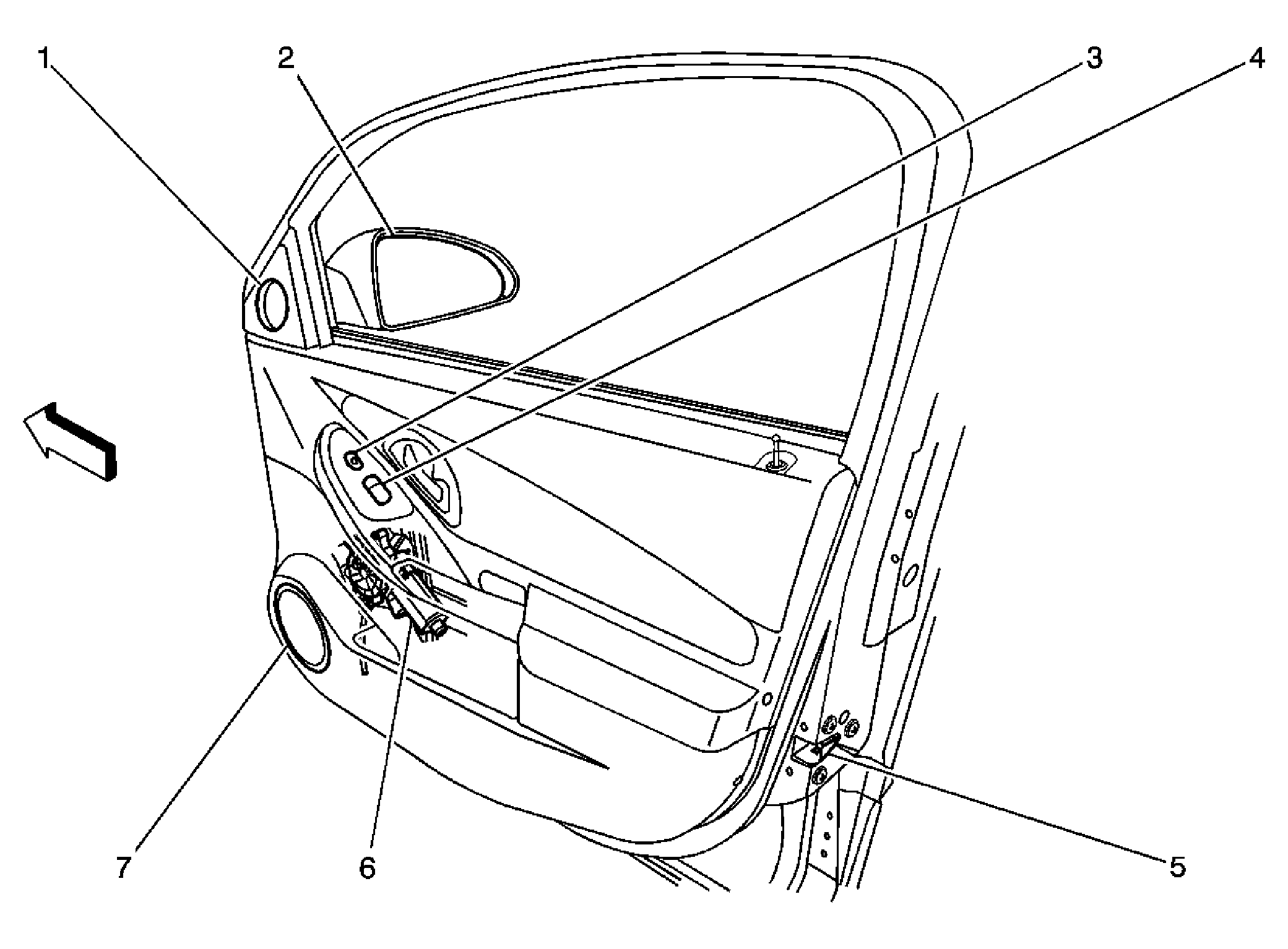

Fig 5: Left Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Lock Switch - Driver
2	Outside Rearview Mirror - Driver
3	Outside Rearview Mirror - Switch
4	Speaker - LF Door Tweeter (UZ6)
5	Window Switch - Driver
6	Speaker - LF Door
7	Rear Compartment/Liftgate Release Switch
8	Window Motor - Driver
9	Door Latch Assembly - Driver

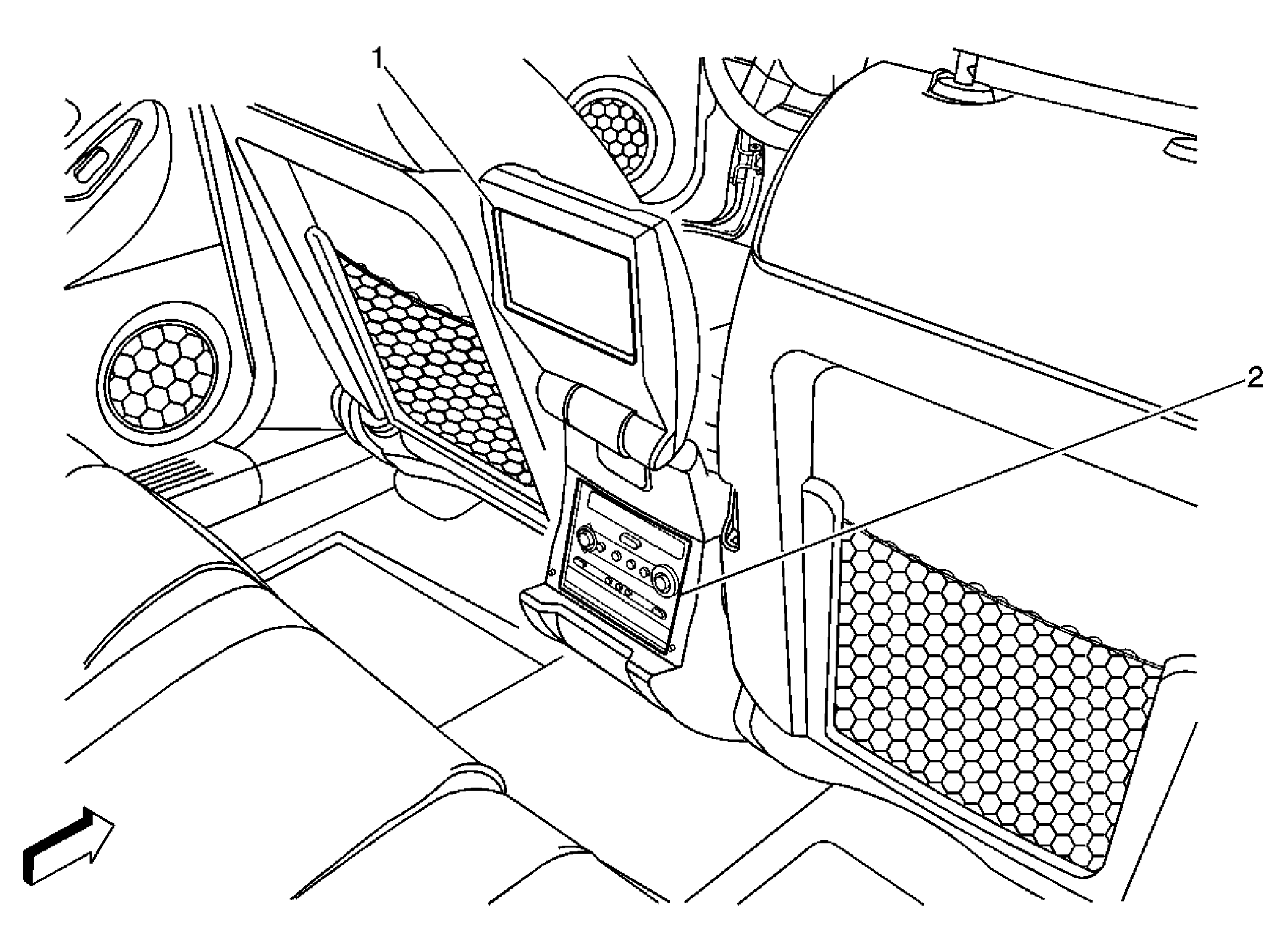

Fig 6: Rear of Center Console (UK6, U32) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Video Screen (U32)
2	DVD Player (U32) (Rear Seat Audio (RSA) Controller (UK6))

Fig 7: Right Front Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RF Door Tweeter (UZ6)
2	Outside Rearview Mirror - Front Passenger
3	Door Lock Switch - Passenger
4	Window Switch - Passenger
5	Door Latch Assembly - Passenger
6	Window Motor - Passenger
7	Speaker - RF Door

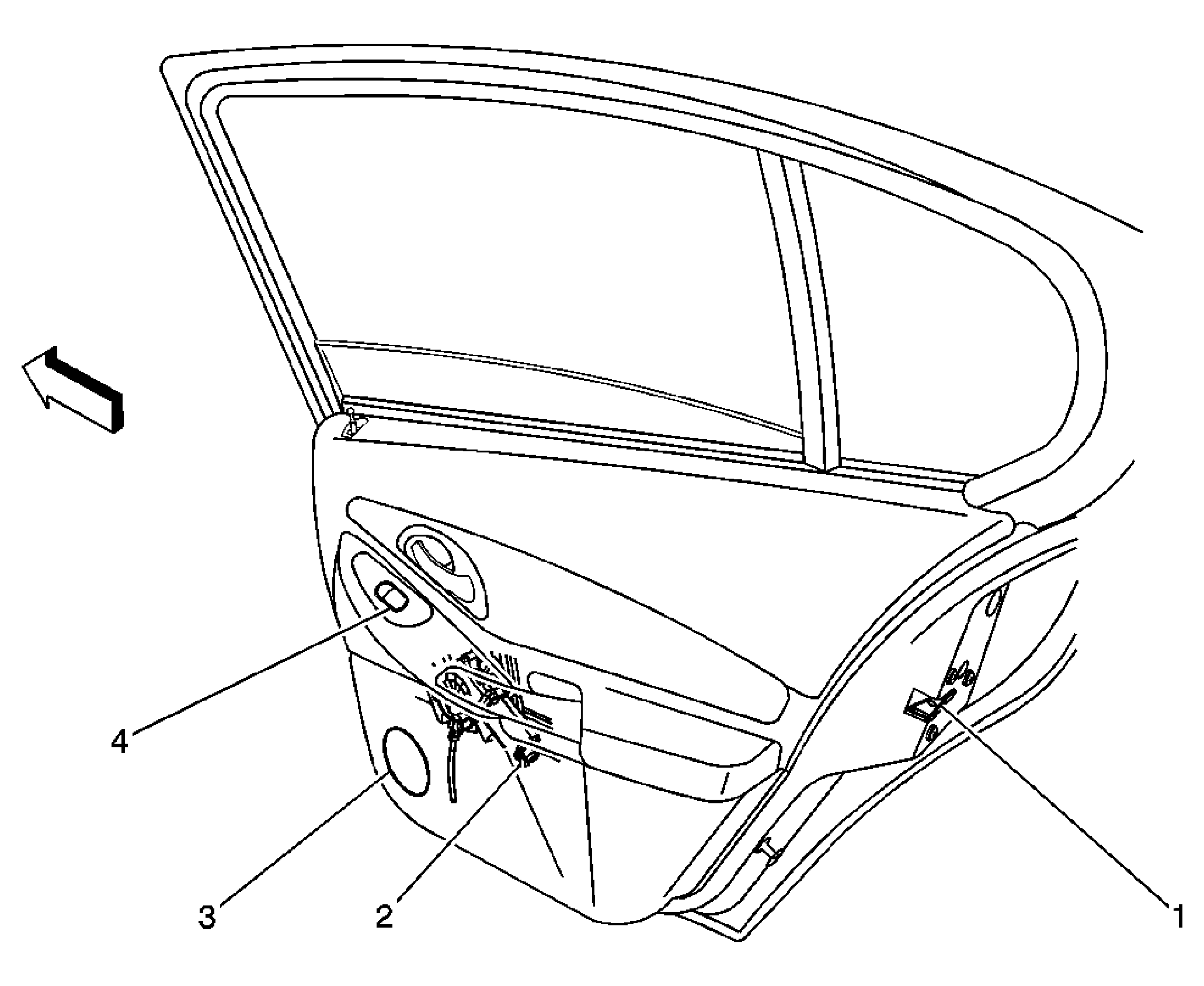

Fig 8: Left Rear Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switch - LR
2	Speaker - LR Door (Extended Sedan)
3	Window Motor - LR
4	Door Latch Assembly - LR

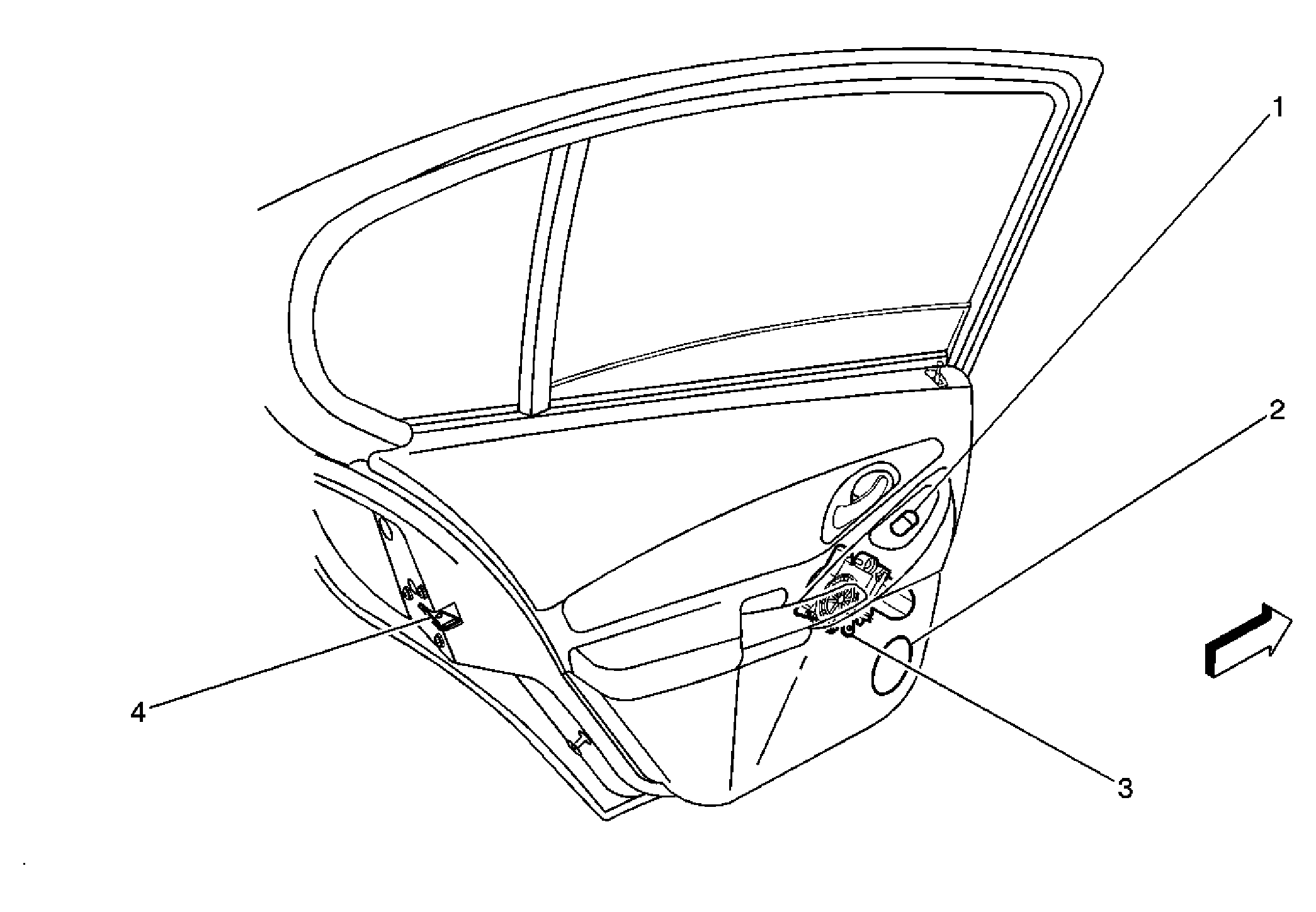

Fig 9: Right Rear Door Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Door Latch Assembly - RR
2	Window Motor - RR
3	Speaker - RR Door (Extended Sedan)
4	Window Switch - RR

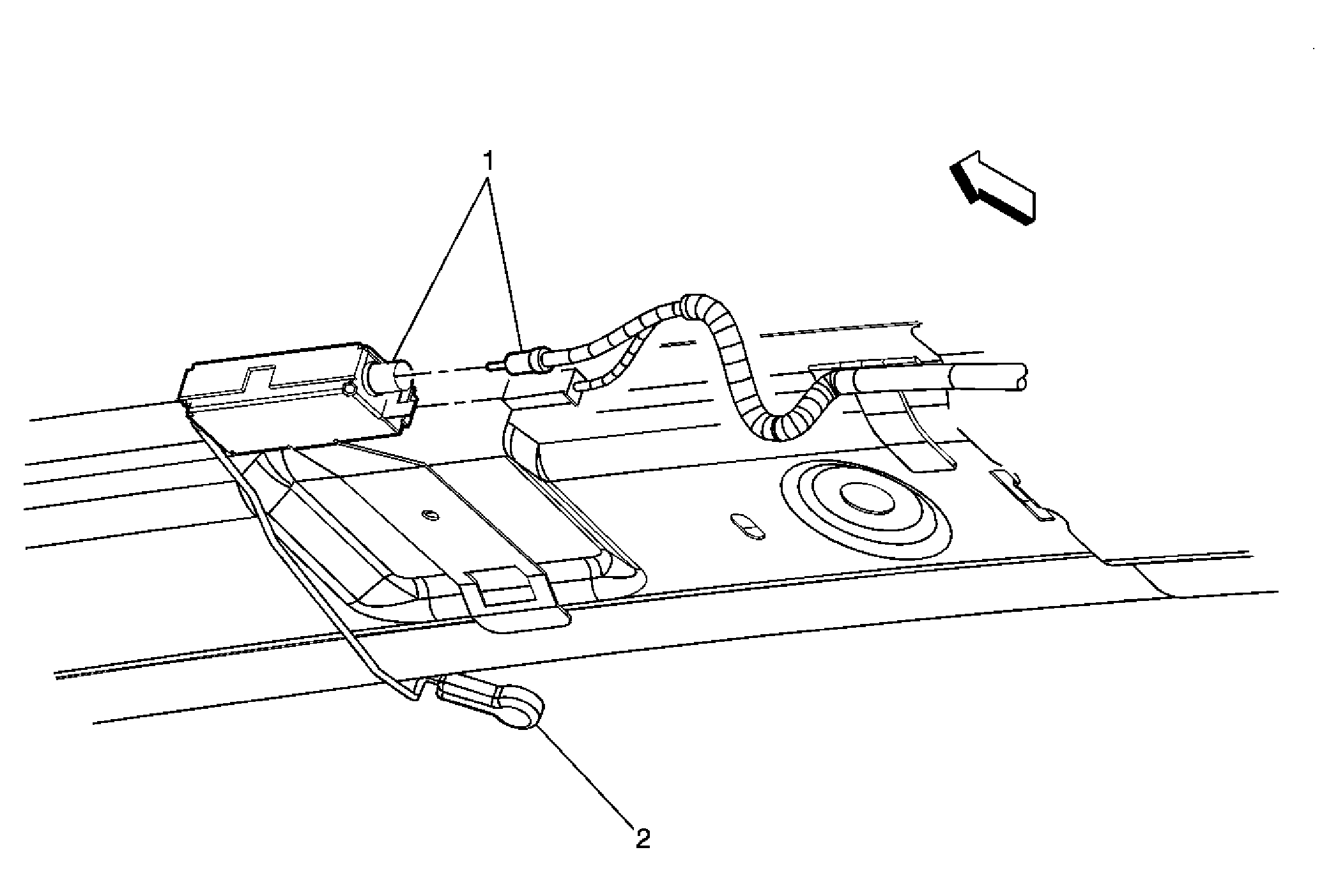

Fig 10: Rear Roof Rail Antenna - Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna Amplifier Module
2	Radio Rear Window Antenna

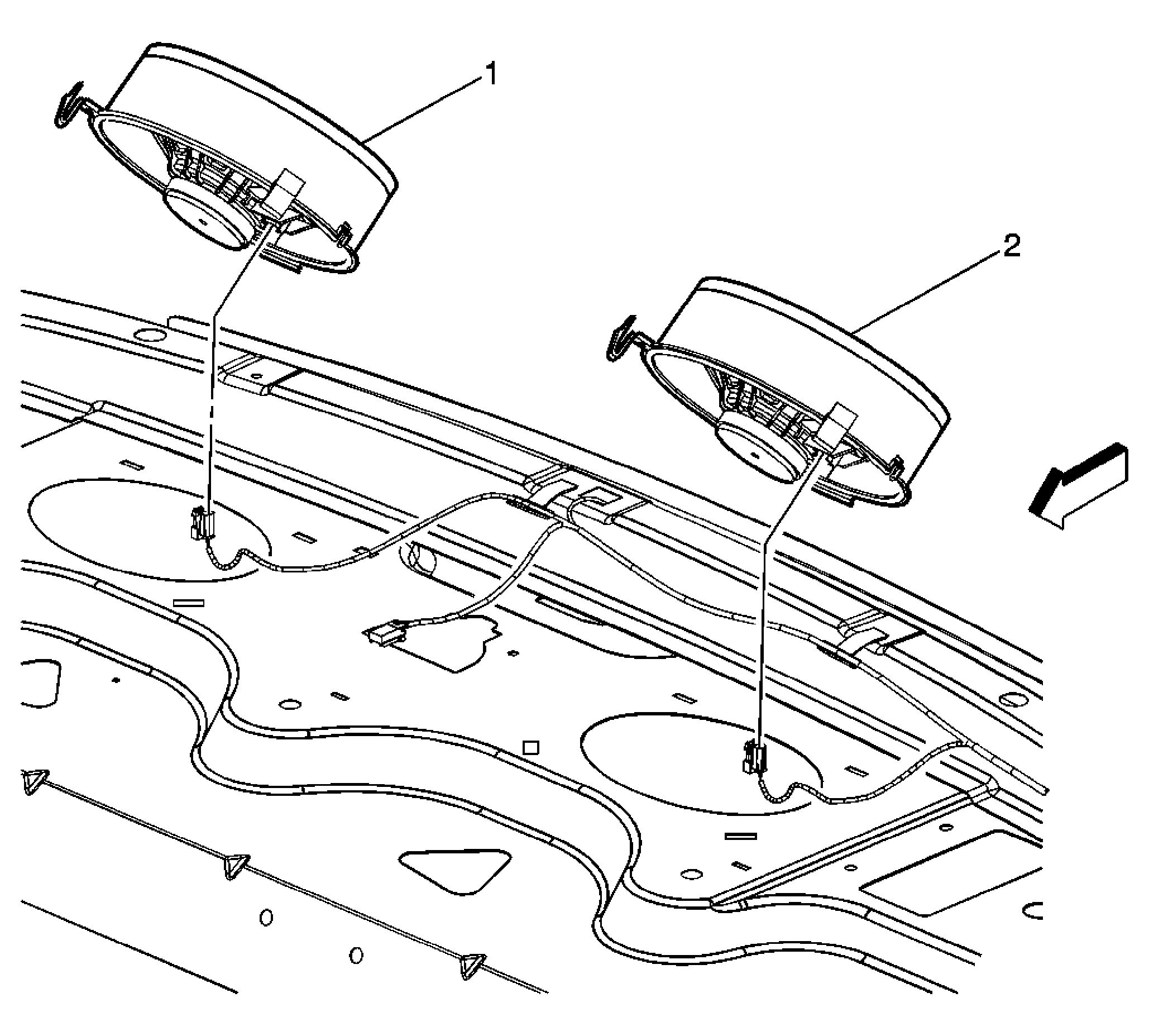

Fig 11: Rear Speakers (Sedan)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Speaker - RR
2	Speaker - LR

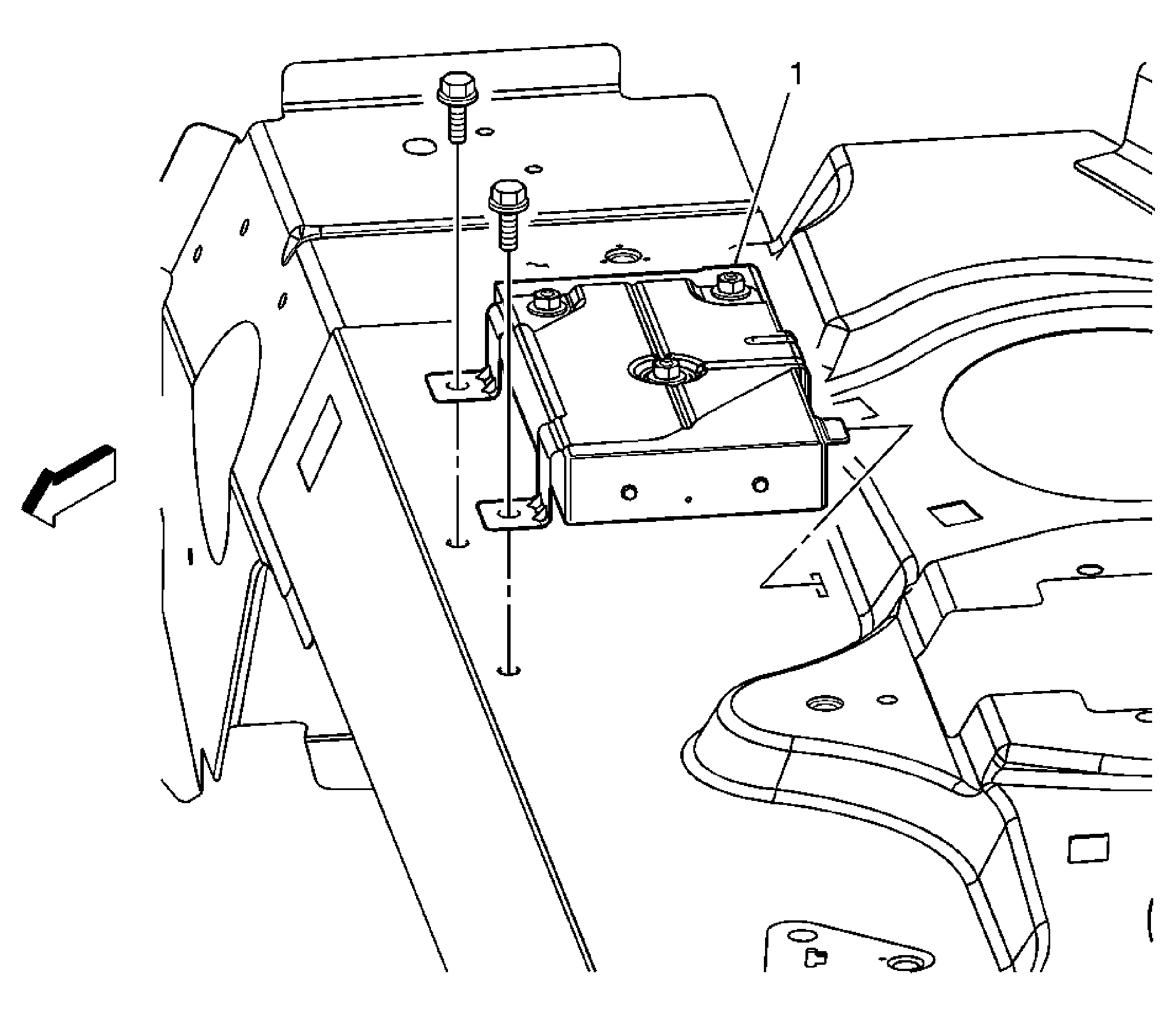

Fig 12: Right Side of Rear Compartment (Sedan) Component Views

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver

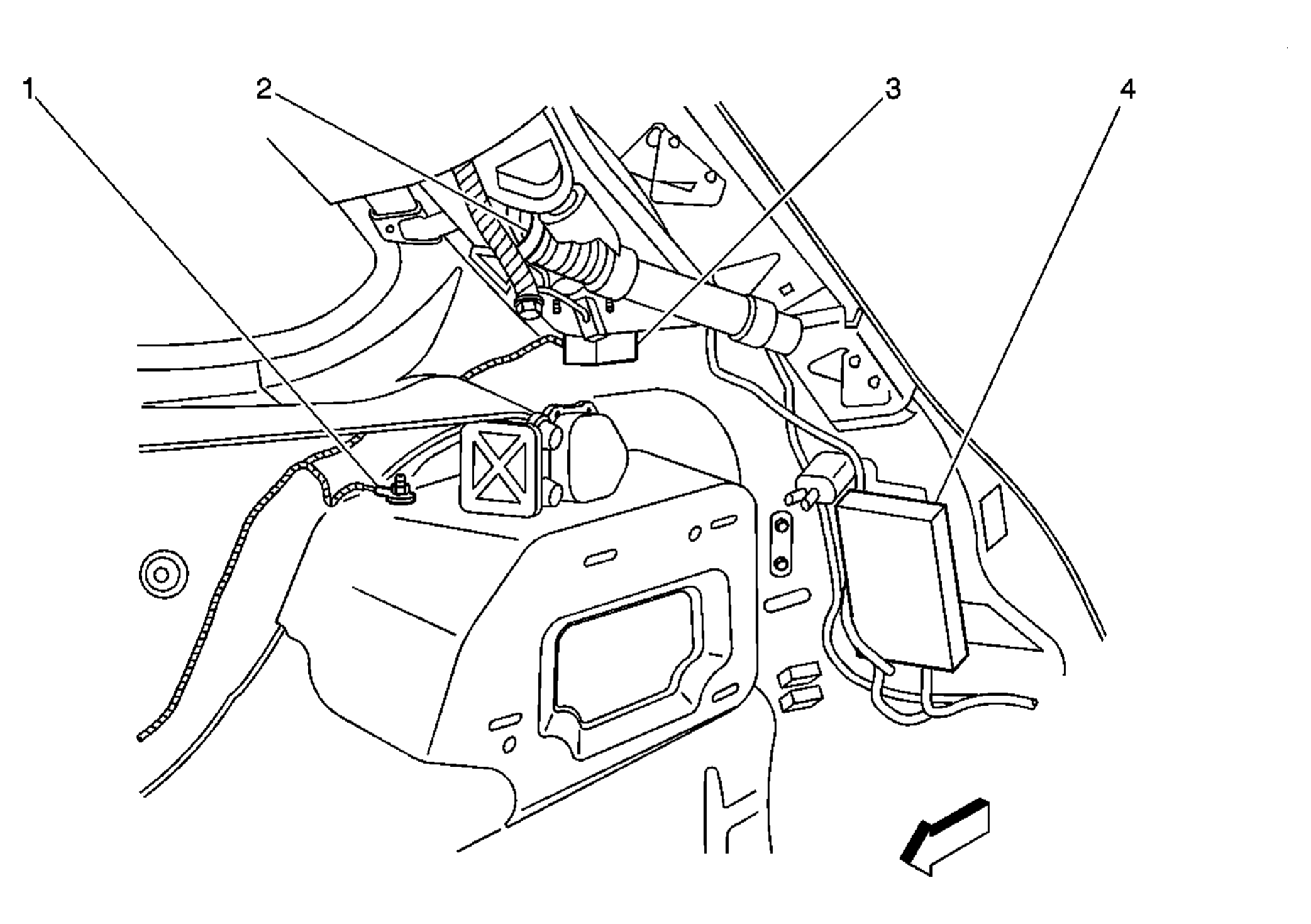

Fig 13: Right Rear of Passenger Compartment Component Views - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G301
2	Inflatable Restraint Side Impact Module - Right (AY0)
3	C701
4	Digital Radio Receiver (U2K)

Fig 14: Rear of Vehicle Component Views - Extended Sedan

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Tail/Stop and Turn Signal Lamp - Left
2	Tail Lamp - Left
3	Center High Mounted Stop Lamp (CHMSL)
4	Liftgate Release Switch
5	Antenna - Radio
6	Tail Lamp - Right
7	Tail/Stop and Turn Signal Lamp - Right
8	Backup Lamp - Right
9	License Lamp
10	Backup Lamp - Left
