Installation Procedure

    Fig 1: Installing Wiper Motor
    GM1206780Courtesy of GENERAL MOTORS CORP.
  1. Install the wiper motor. Refer to Wiper Motor Replacement .

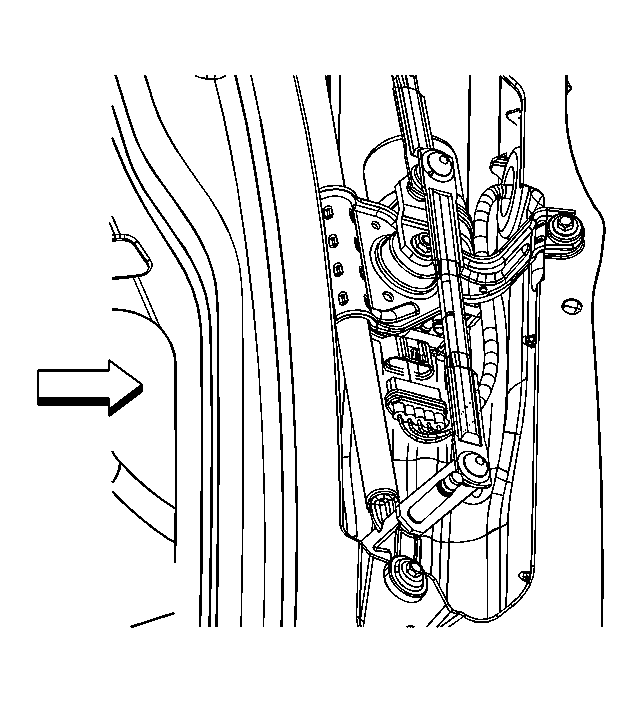

    2. Fig 2: Connecting Electrical Connector To Wiper Motor
    GM1326390Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connector to the wiper motor.
  3. Connect the clip retaining the electrical harness to the wiper module.

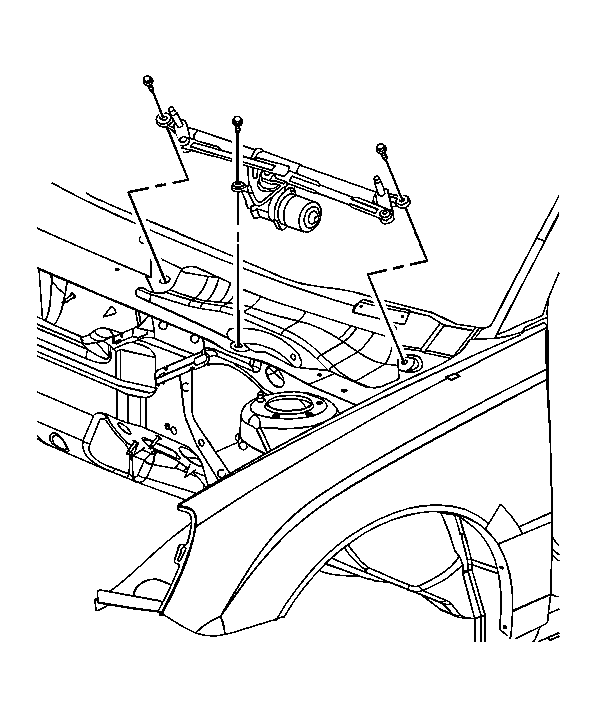

    4. Fig 3: Positioning Wiper Module Assembly Into Plenum
    GM1201895Courtesy of GENERAL MOTORS CORP.
  4. Position the wiper module assembly into the plenum.
    5. NOTE: Refer to Fastener Notice in Cautions and Notices.
  5. Install the fasteners attaching the wiper module assembly to the plenum.

    Tighten:  Tighten the fasteners to 10 N.m (89 lb in).

  6. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement in Body Front End.
  7. Install the wiper arms. Refer to Wiper Arm Replacement .
  8. Inspect the washers for proper operation.
