Fuel Sender Assembly

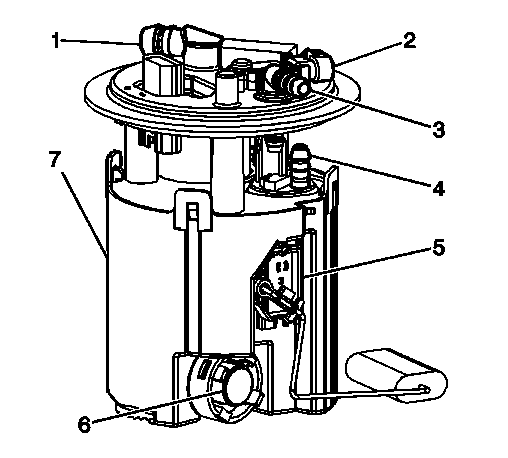

Fig 1: Identifying Fuel Sender Assembly

Courtesy of GENERAL MOTORS CORP.

The fuel sender assembly consists of the following major components:

• The fill limit vent valve (1)
• The fuel filter
• The fuel level sensor (5)
• The fuel tank pressure (FTP) sensor (2)
• The fuel pump (4)
• The fuel strainer
• The fuel pressure regulator (6)
