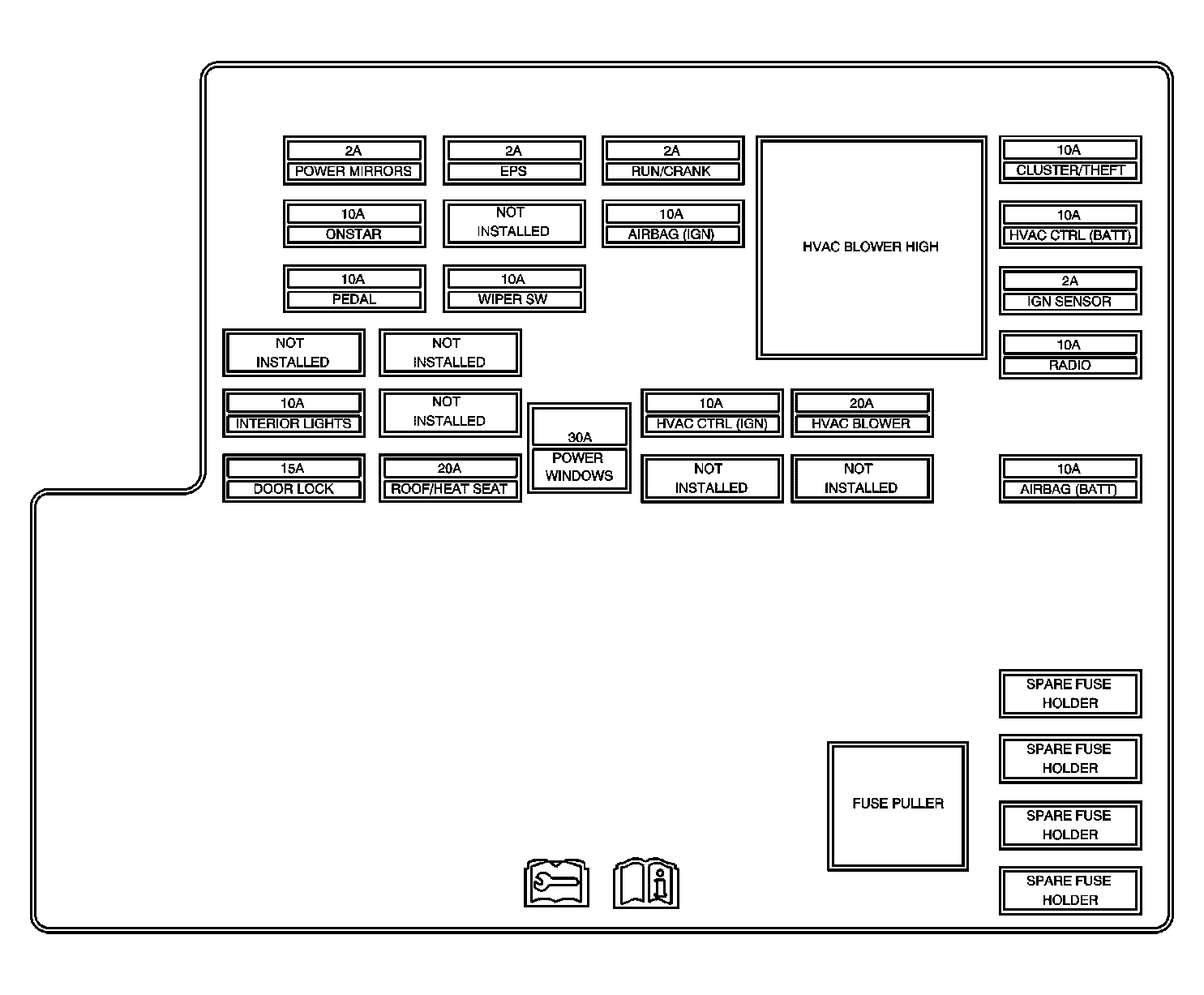

Body Control Module (BCM) - Cover
Body Control Module (BCM) Usage
| Fuse | Rating | Description |
|---|---|---|
| AIRBAG (BATT) | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| AIRBAG (IGN) | 10A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| CLUSTER/THEFT | 10A | Instrument Panel Cluster (IPC) and Theft Deterrent Control Module |
| DOOR LOCK | 15A | Body Control Module (BCM) Logic |
| EPS | 2A | Power Steering Control Module |
| HVAC BLOWER | 20A | HVAC Control Module (C60) |
| HVAC BLOWER HIGH Relay | - | Blower Motor (C60) |
| HVAC CTRL (BATT) | 10A | Data Link Connector (DLC) and HVAC Control Module |
| HVAC CTRL (IGN) | 10A | HVAC Control Module |
| IGN SENSOR | 2A | Ignition Switch |
| INTERIOR LIGHTS | 10A | Body Control Module (BCM) Logic |
| ONSTAR | 10A | Vehicle Communication Interface Module (VCIM) (UE1) |
| PEDAL | 10A | Adjustable Pedals Module (JF4) and Adjustable Pedals Position Switch (JF4) |
| POWER MIRRORS | 2A | Outside Rearview Mirror Switch |
| POWER WINDOWS | 30A | Window Switch - Driver and Window Switch - Passenger |
| RADIO | 10A | Radio |
| ROOF/HEAT SEAT | 20A | Heated Seat Control Module - Driver (KA1), Heated Seat Control Module - Passenger (KA1), Heated Seat Switch - Driver (KA1), Heated Seat Switch - Passenger (KA1), Inside Rearview Mirror (DD8), and Sunroof Control Module (CF5) |
| RUN/CRANK | 2A | A/T Shift Lock Control Assembly, Cruise Control On/Off Switch |
| WIPER SW | 10A | Windshield Wiper/Washer Switch |
