Exhaust System

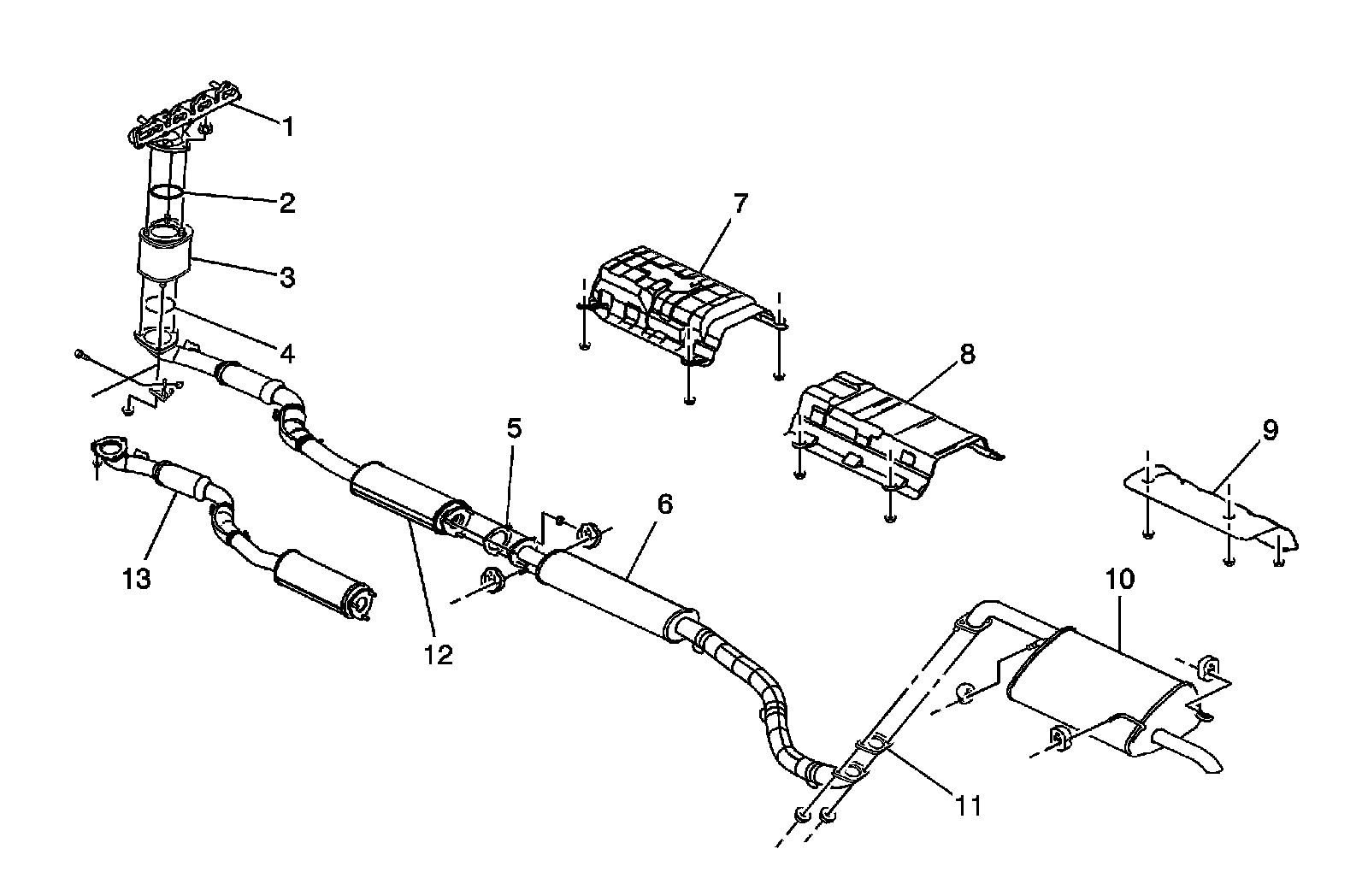

Engine Exhaust System Component Views




1 - Exhaust Manifold
2 - Exhaust Front Pipe Gasket
3 - Catalytic Converter
4 - Exhaust Pipe Front Gasket
5 - Muffler Gasket
6 - Exhaust Front Muffler
7 - Catalytic Converter Protective Shield
8 - Front Muffler Protective Shield
9 - Rear Muffler Protective Shield
10 - Exhaust Rear Muffler
11 - Muffler Gasket
12 - Exhaust Front Pipe-1.8L, 2.0L
13 - Exhaust Front Pipe-1.6L
