Removal Procedure

    Fig 1: View Of Lower Steering Column Cover Panel And Screws
    GM1248378Courtesy of GENERAL MOTORS CORP.
  1. Remove the instrument panel lower cover.
    2. Fig 2: View Of Immobilizer Control Unit And Electrical Connector
    GM1252101Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connector from the immobilizer control unit.

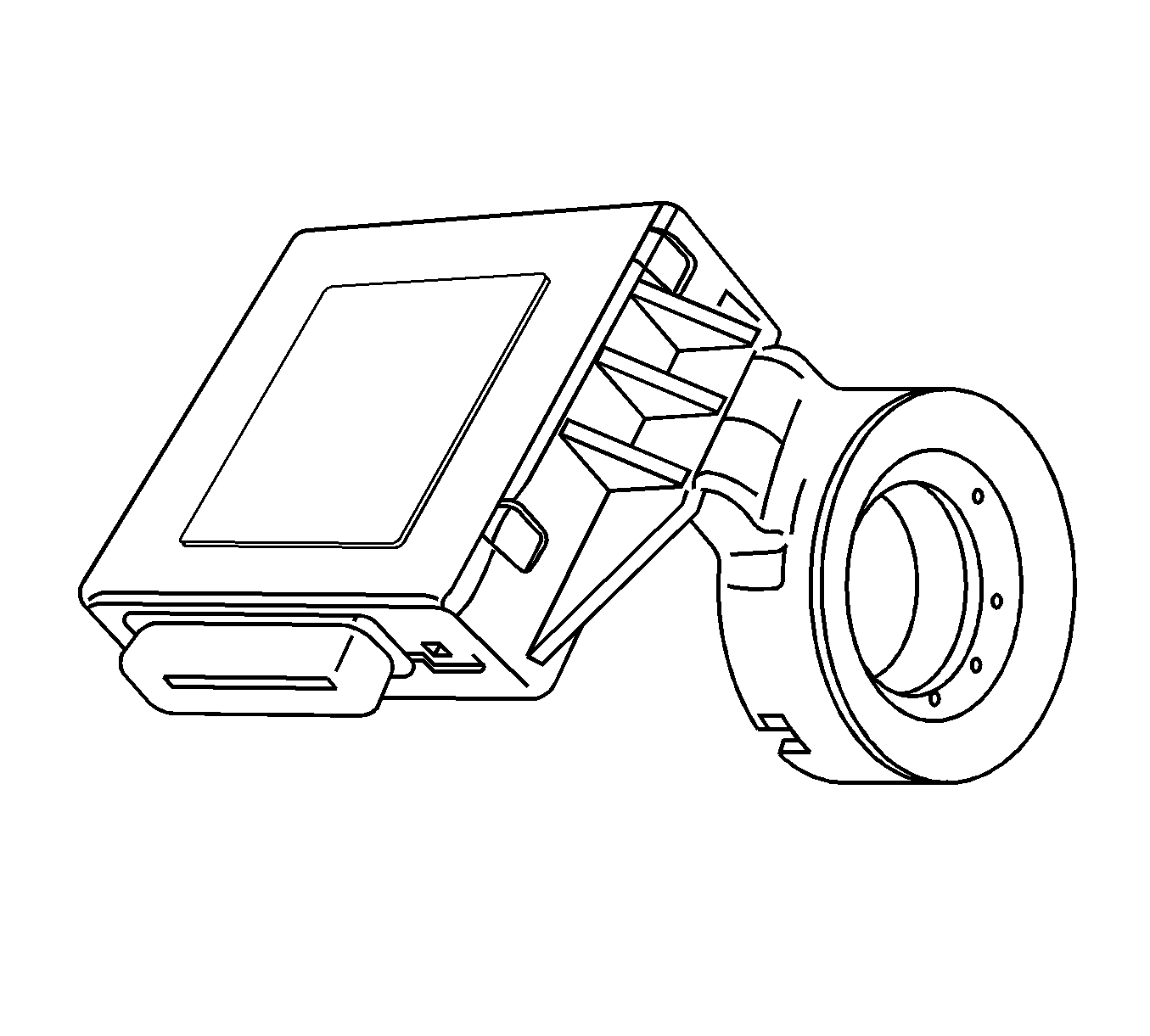

    3. Fig 3: View Of Immobilizer Control Unit
    GM1252102Courtesy of GENERAL MOTORS CORP.
  3. Remove the immobilizer control unit.
