Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the cruise control module.
    NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the cruise control module bolts.

    Tighten:  Tighten the cruise control module bolts to 12 N.m (106 lb in).

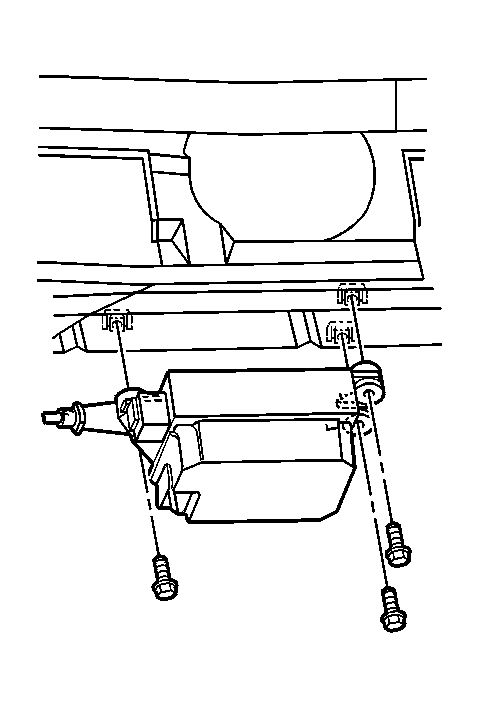

    Fig 1: Identifying Cruise Control Module Bolts
    GM293665Courtesy of GENERAL MOTORS CORP.
  3. Connect the electrical connector to cruise module.
  4. Install cruise control cable bead (2) to ribbon (1).

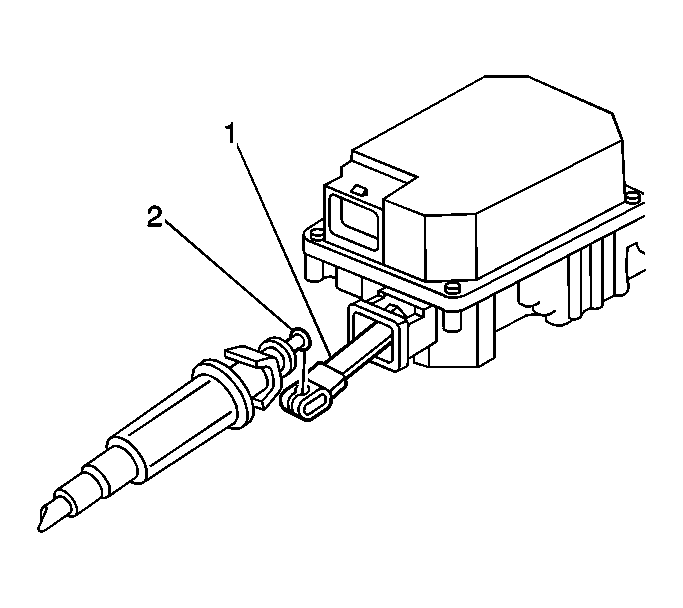

    Fig 2: Locating Cruise Control Cable Bead
    GM567789Courtesy of GENERAL MOTORS CORP.
  5. Install cruise control cable to throttle body lever.

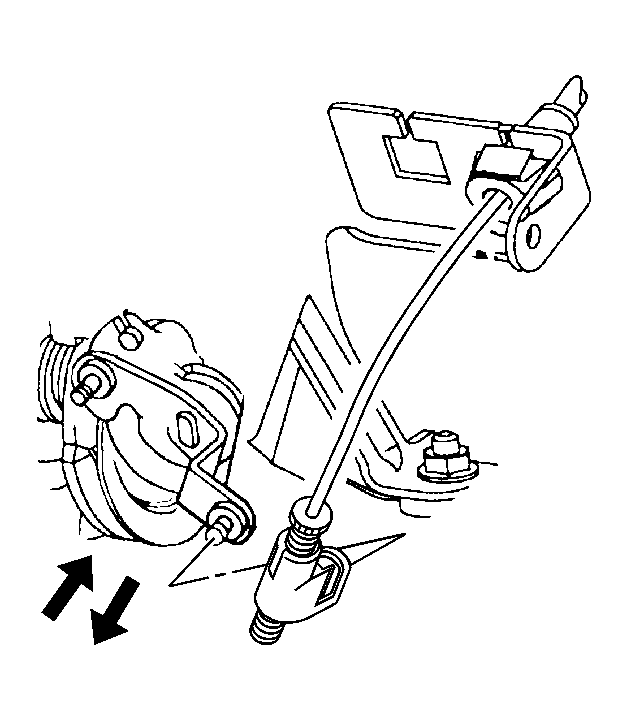

    Fig 3: View Of Cruise Control Cable
    GM567876Courtesy of GENERAL MOTORS CORP.
  6. Perform the functional check.
