Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the left knee bolster. Refer to Knee Bolster Replacement - Left in Instrument Panel, Gages, and Console.
  2. Disconnect the remote keyless entry antenna (2) from the receiver (5).

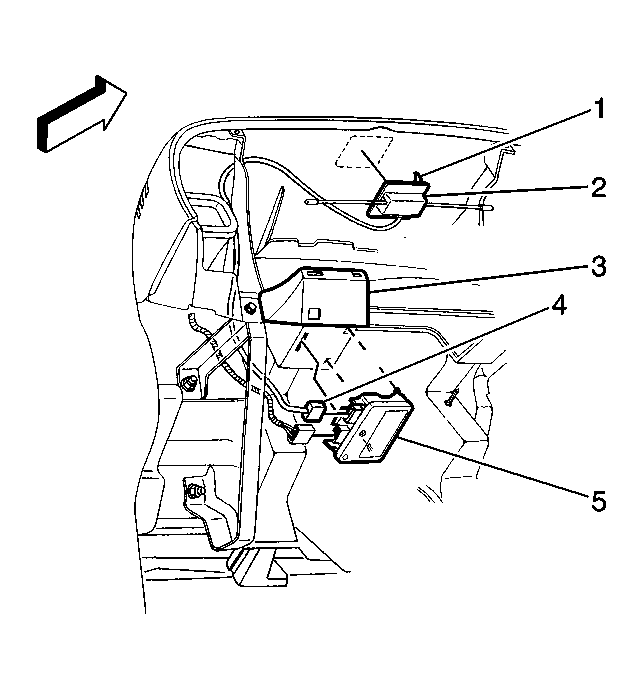

    Fig 1: Locating Remote Keyless Entry Antenna
    GM506272Courtesy of GENERAL MOTORS CORP.
  3. Disconnect the remote keyless entry electrical connector (4) from the receiver (5).
  4. Remove the remote keyless entry module screws from the bracket (3).
  5. Remove the remote keyless entry module from the carrier.
