Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

Install the battery (2) with the positive (+) side down.
Use one 3 V CR2032 battery (or the equivalent).

Fig 1: View of Transmitter Battery & Case
Courtesy of GENERAL MOTORS CORP.
Close the transmitter case (6, 4).
Ensure the seal is in position. Align the 2 halves of the case and snap the two halves together.

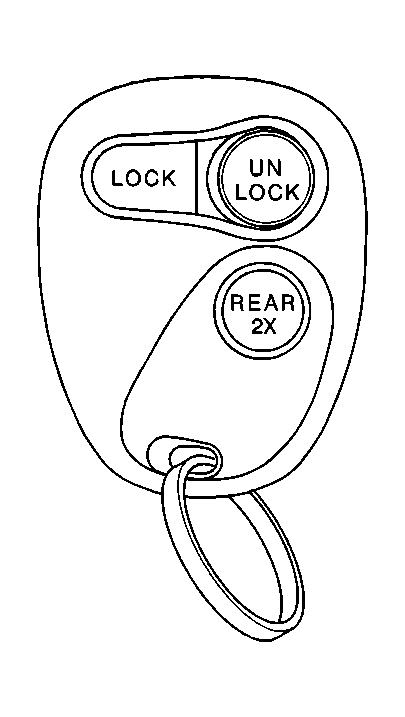

Fig 2: View Of Transmitter Case
Courtesy of GENERAL MOTORS CORP.
Replace the batteries when the range of the transmitter decreases to less than 7 m (23 ft).
