Body Control System Component Views

WARNING: This page is about a different car, the 2004 GMC Safari and 2004 Chevrolet Astro. However, it is still accessible from the selected car via links, so may be relevant.

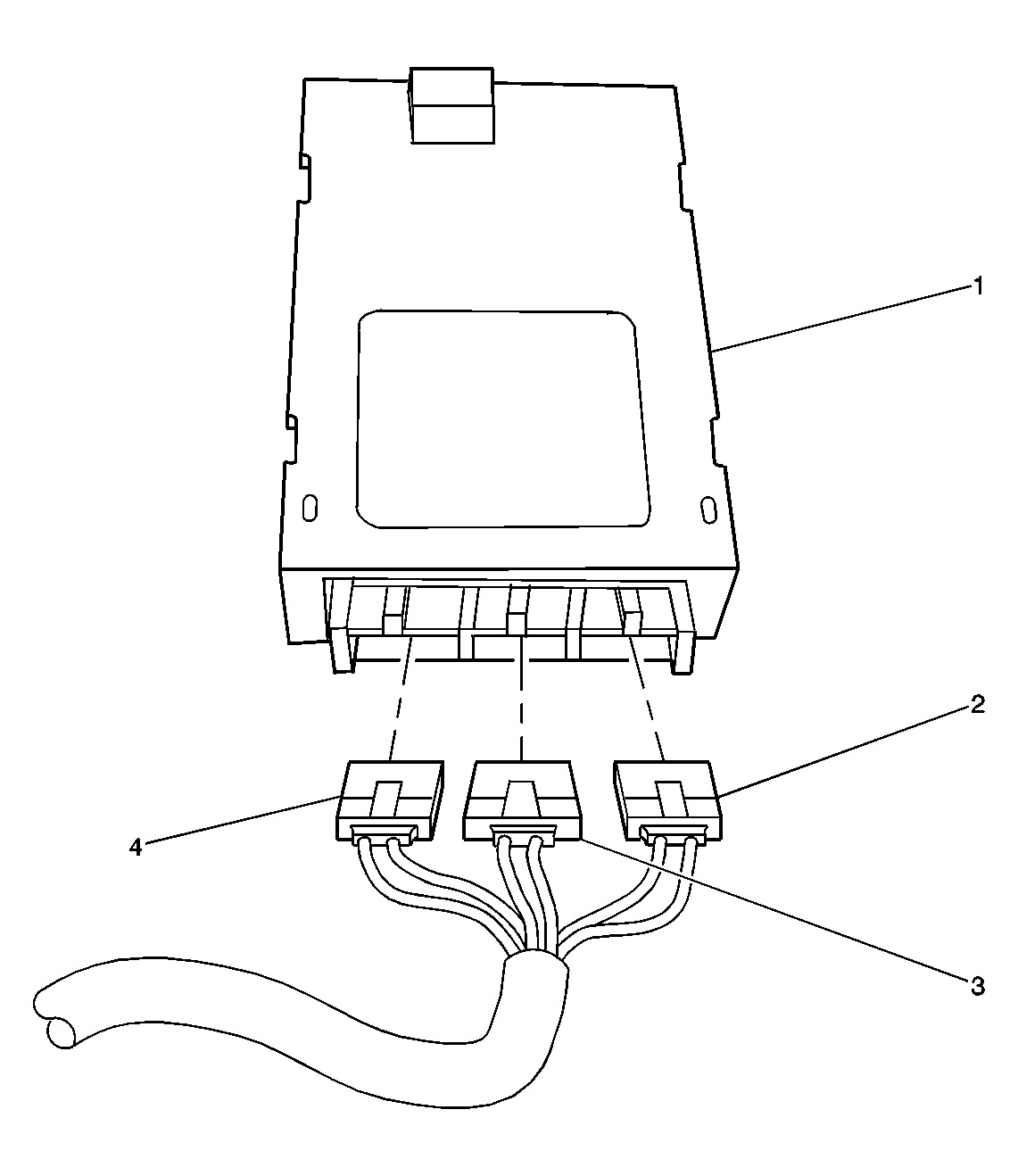

Fig 1: Body Control Module Connectors Component View
GM537288Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
2 Body Control Module Connector C1
3 Body Control Module Connector C2
4 Body Control Module Connector C3

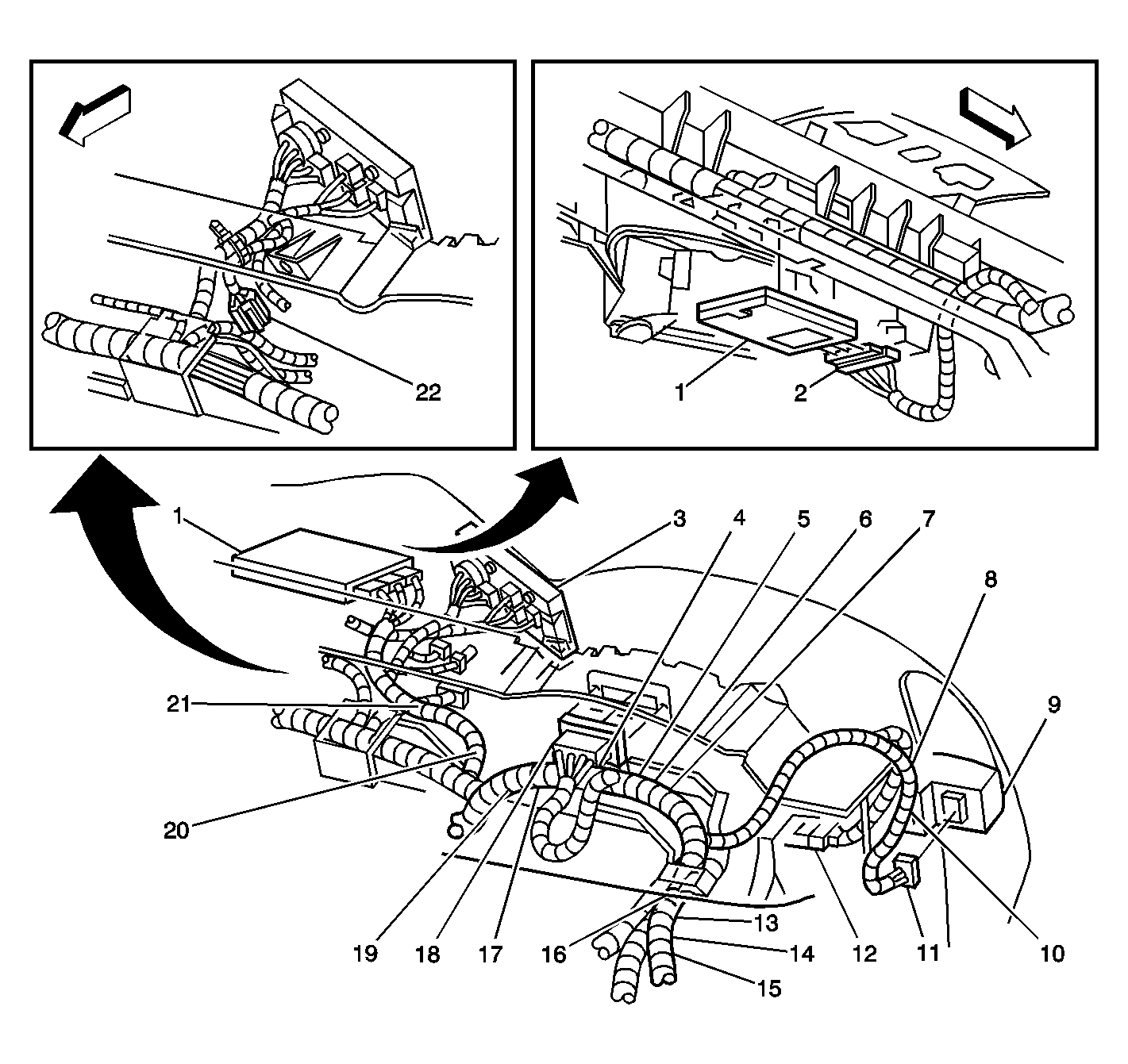

Fig 2: Instrument Cluster Wiring Component View
GM786770Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Body Control Module (BCM)
1 Body Control Module (BCM)
2 Body Control Module (BCM) Connectors
3 HVAC Control Module
4 S219
5 S217
6 S211
7 S257
8 S330
9 Headlamp and Panel Dimmer Switch
10 S256
11 Headlamp and Panel Dimmer Switch Connector
12 Remote Control Door Lock Receiver (RCDLR) Connector
13 S210
14 S254
15 S250
16 S212
17 S219
18 Instrument Panel Cluster (IPC) Connector
19 S258
20 S259
21 S255
22 Radio Connectors
