Cooling Fan Relay Replacement (High Speed)

Cooling Fan Relay Replacement (High Speed)

Removal Procedure

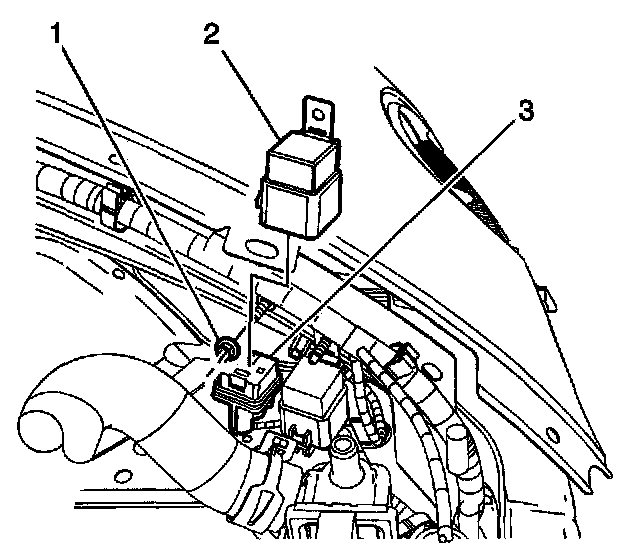

1. Remove the condenser fan high relay nut (1).
2. Lift the relay (2) and harness connector (3) up and disconnect the relay (2).

Installation Procedure

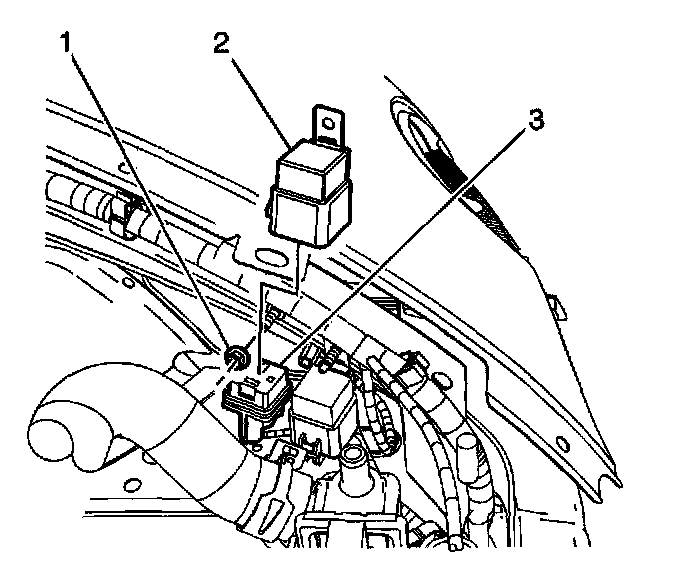

1. Install the condenser fan high relay (2) into the harness connectors (3).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the relay (2) onto the mounting stud and install the nut (1).
^ Tighten the nut to 6 Nm (53 inch lbs.).
