Cooling Fan Relay Replacement (Low Speed)

Cooling Fan Relay Replacement (Low Speed)

Removal Procedure

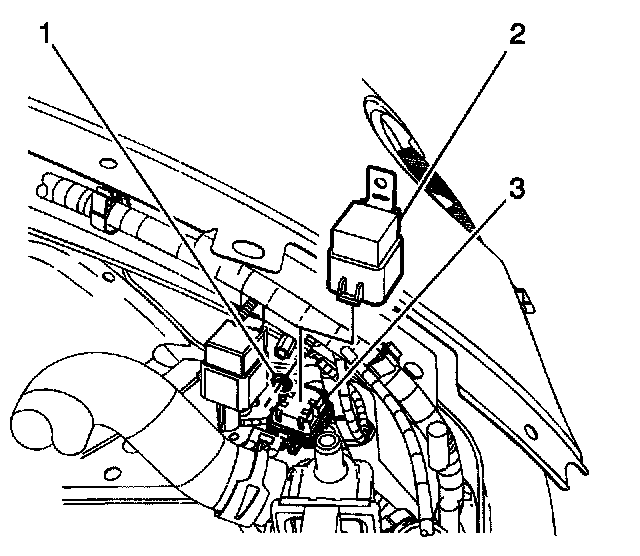

1. Remove the condenser fan low relay nut (1).
2. Lift the relay (2) and harness connector (3) up and disconnect the relay (2).

Installation Procedure





1. Install the condenser fan low relay (2) into the harness connectors (3).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the relay (2) onto the mounting stud and install the nut (1).
^ Tighten the nut to 6 Nm (53 inch lbs.).
