Transaxle Installation Note
WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.
- Set the transaxle on a jack and lift it.

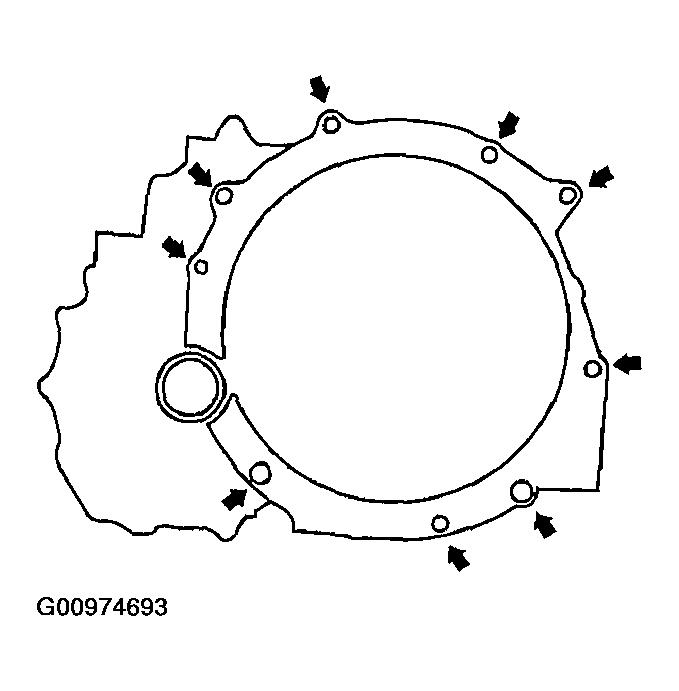

- Install the transaxle mounting bolts.
- Tightening torque 37.3-52.0 N.m {3.8-5.3 kgf.m, 27.5-38.3 ft.lbf}
Courtesy of MAZDA MOTORS CORP.
