Removal Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument cluster trim plate bezel. Refer toBezel Replacement - Instrument Panel (I/P) Cluster in Instrument Panel, Gages, and Console.
  2. Remove the instrument panel storage tray.
  3. Remove the accessory switch assembly from the instrument panel. Refer to Accessory Switch Replacement in Instrument Panel, Gages, and Console.
  4. Remove the screws from the HVAC control assembly.

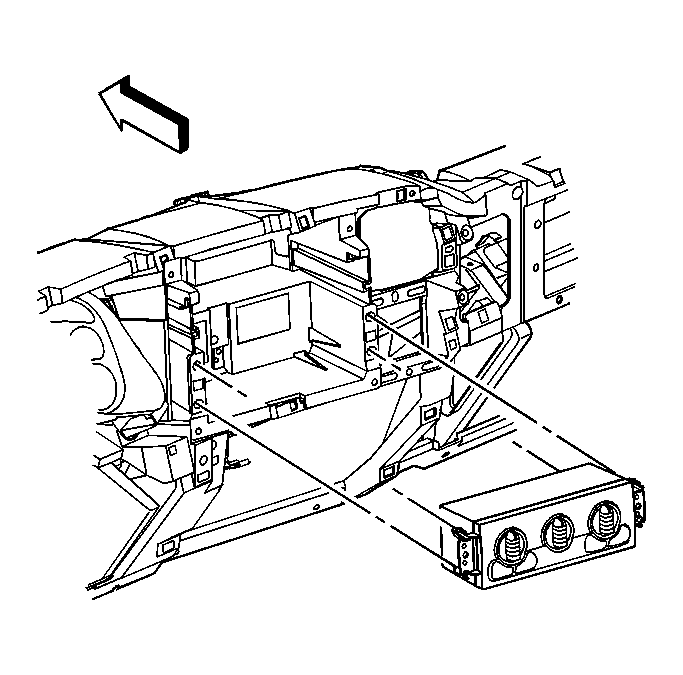

    5. Fig 1: HVAC Control Assembly
    GM363018Courtesy of GENERAL MOTORS CORP.
  5. Remove the HVAC control assembly, with the following procedure:
    1. Release the retaining tabs.
    2. Pull the control head out of the instrument panel carrier.
  6. Disconnect the electrical connectors from the HVAC control assembly.
