Wiper/Washer System Component Views

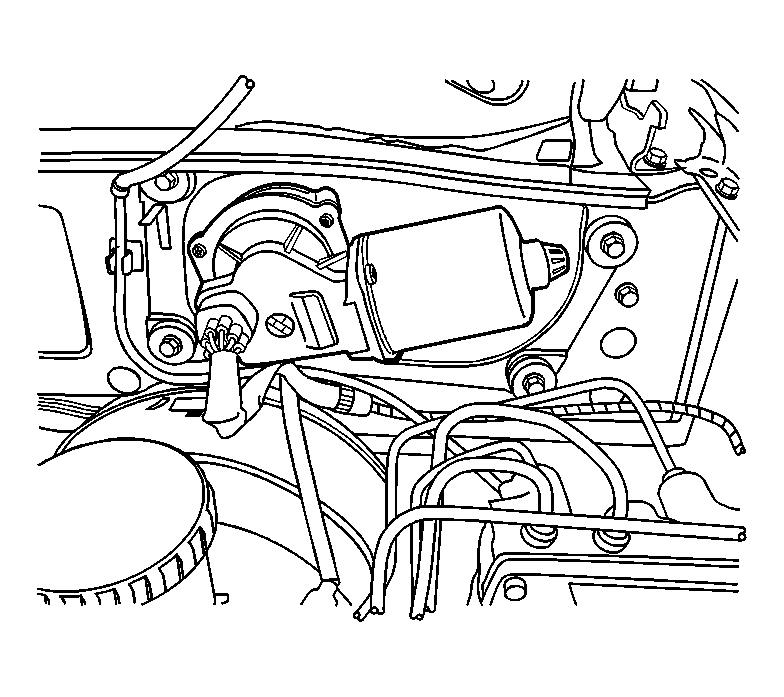

Fig 1: Front Wiper Motor

Courtesy of GENERAL MOTORS CORP.

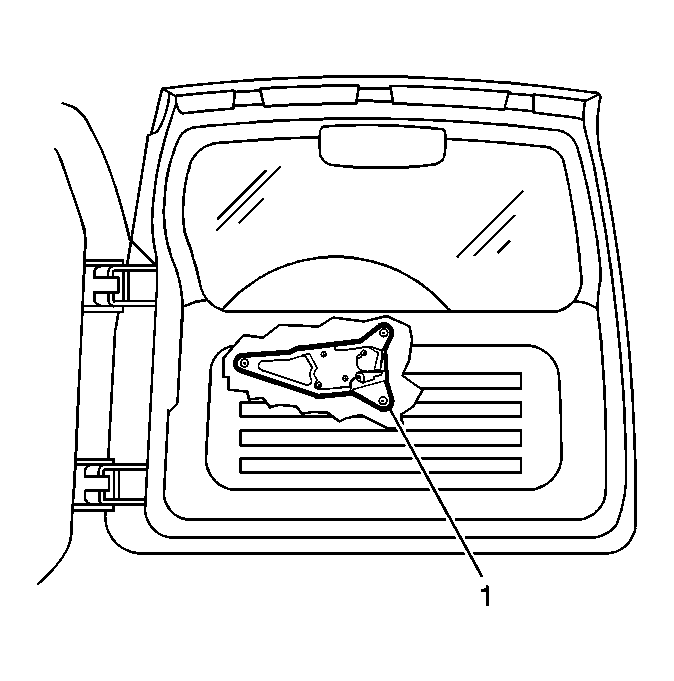

Fig 2: Rear Wiper Motor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wiper Motor

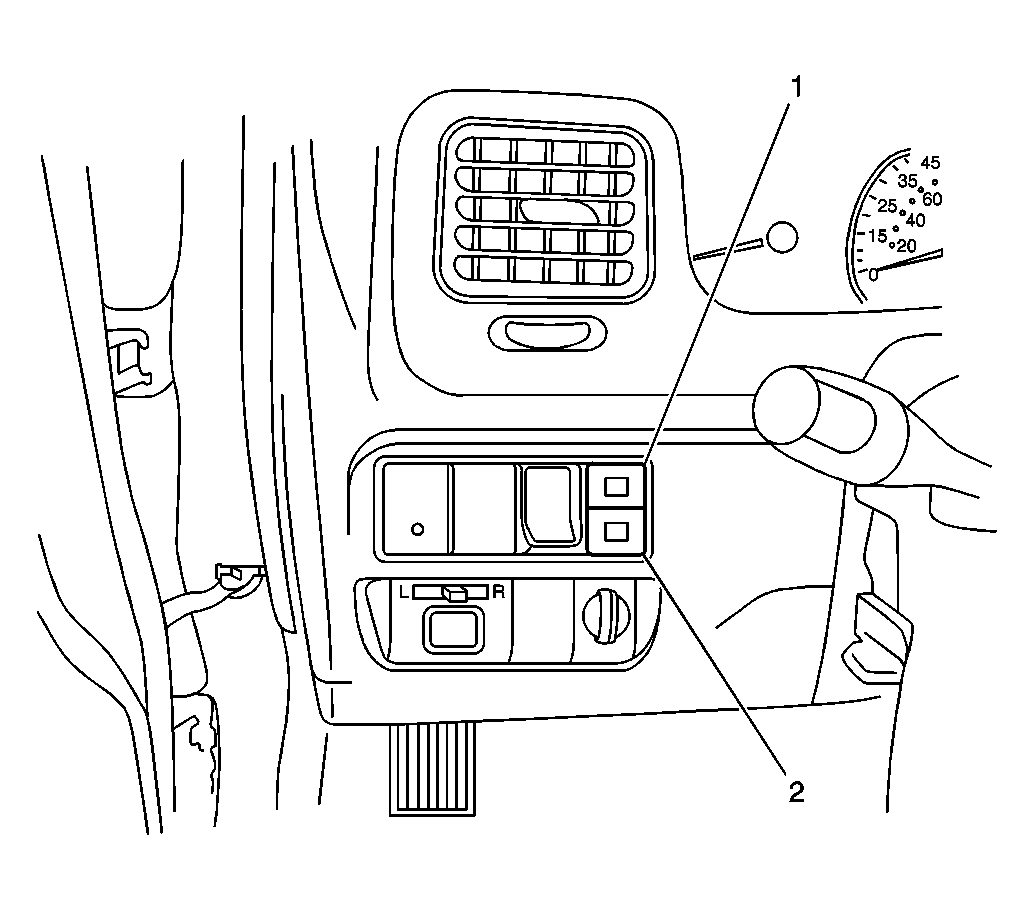

Fig 3: Rear Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Wiper Switch
2	Rear Washer Switch

Fig 4: Windshield Washer Pumps

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Windshield Washer Pump
2	Rear Windshield Washer Pump

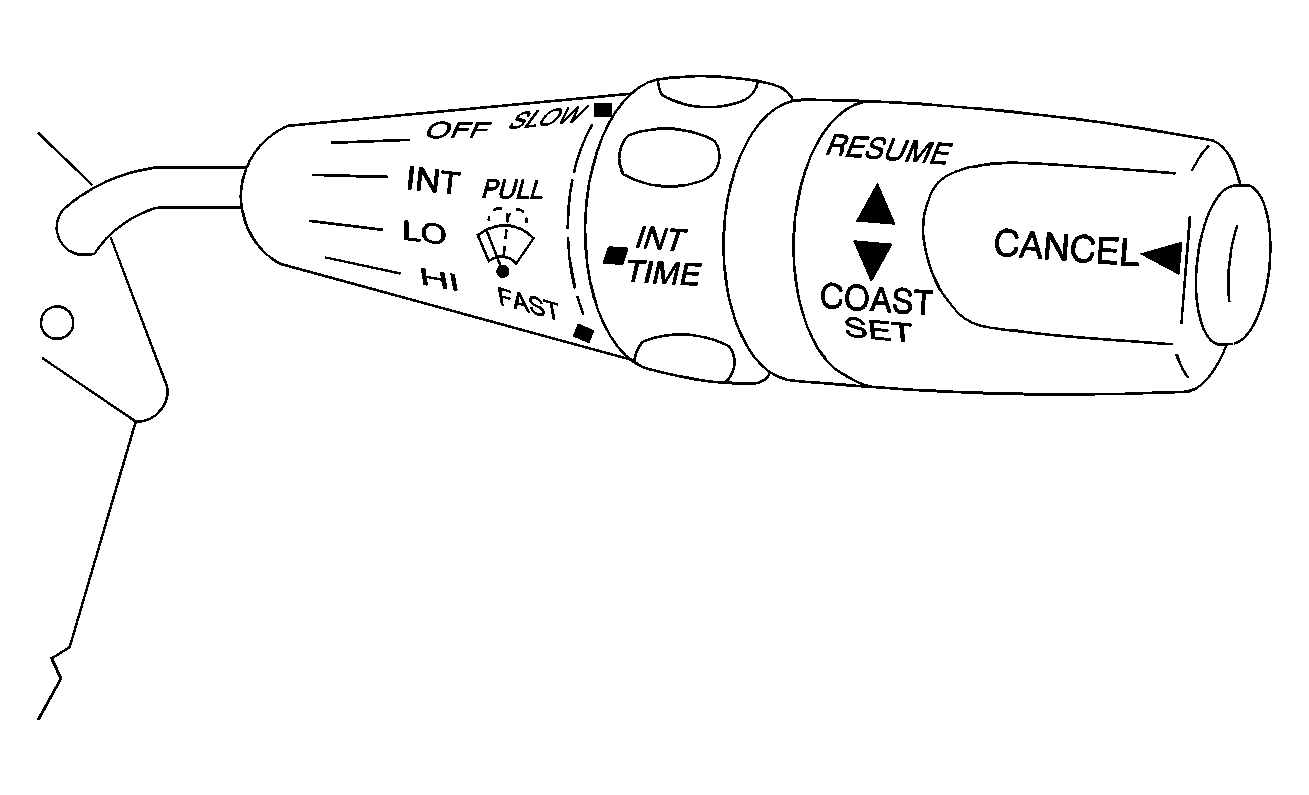

Fig 5: Wiper/Washer Switch

Courtesy of GENERAL MOTORS CORP.
