A/C Compressor Control Module C1 Connector End View

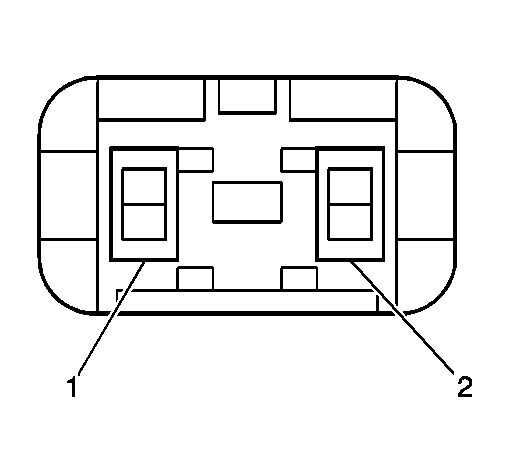

A/C Compressor Control Module C1 Connector End View
Courtesy of GENERAL MOTORS CORP.
Connector Part Information
0970502FA001
BLK
Pin
Wire Color
Function
1
BLK/GRY
Evaporator Temperature Input
2
BLK/GRY
Ground
