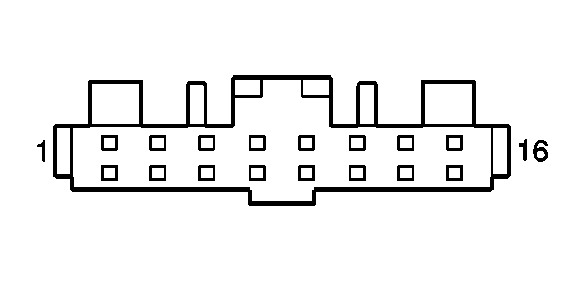

A/C Compressor Control Module C2 Connector End View
A/C Compressor Control Module C2 Connector End View
| Connector Part Information |
|
|
|---|---|---|
| Pin | Wire Color | Function |
| 1 | PNK | A/C Compressor Relay Control |
| 2-3 | - | Not Used |
| 4 | YEL/BLK | A/C Idle-Up Control |
| 5-7 | - | Not Used |
| 8 | GRN/YEL | A/C Cut out Signal |
| 9 | - | Not Used |
| 10 | GRN/BLK | A/C Request Signal |
| 11-12 | - | Not Used |
| 13 | ORN | A/C Refrigerant Pressure Signal |
| 14 | - | Not Used |
| 15 | BLK | Ground G-103 |
| 16 | BLK/WHT | Ignition Positive Voltage |
