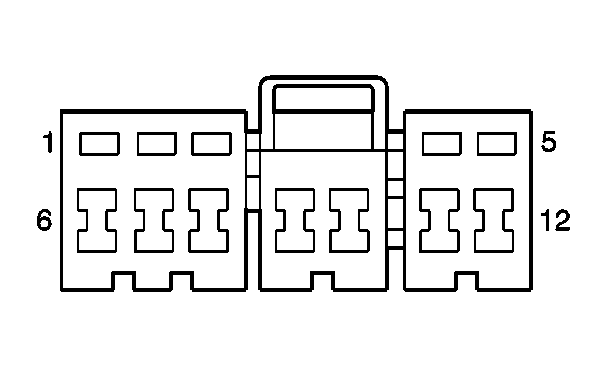

DRL Control Module Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097051220120 NAT
Pin	Wire Color	Function
1	PNK/BLU	Headlamp On Signal
2	WHT/RED	Charge Indicator Control
3	ORN/WHT	DRL Indicator Control
4	PPL/WHT	Parking Brake Signal
5	WHT	Battery Positive Voltage
6	RED/WHT	DRL Control
7	-	Not Used
8	BLK	Ground G200
9	BLK/WHT	Ignition Positive Voltage
10	BLU/RED	Key In Signal
11	PPL	Brake Indicator Control
12	WHT	Dome lamp On Signal
