Power Door Systems Component Views

Fig 1: Instrument Panel Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Heater Control Illumination Lamp
2	A/C Switch
3	Radio
4	A/C Compressor Control Module
5	Inflatable Restraint IP Module
6	Ambient Light Sensor
7	Blower Motor Relay
8	Blower Motor Resistor
9	Powertrain Control Module (PCM)
10	Blower Motor
11	Inflatable Restraint Sensing and Diagnostic Module (SDM)
12	Cigar Lighter
13	Data Link Connector(DLC) OBD2
14	SIR Data Link Connector
15	Fuel Pump Relay
16	Main Relay
17	Junction Block
18	Headlamp Relay
19	Rear Defogger Relay
20	IP Lamp Dimmer Control
21	Remote Control Mirror Switch
22	Cruise Control Main Switch
23	Rear Wiper/Washer Switch
24	Steering Wheel Module Coil
25	Hazard Switch
26	Rear Defogger Switch
27	Blower Switch

Fig 2: Left Rear Door Lock (Right Rear Similar)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Master Switch Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Window Switches
2	Door Lock Switch

Fig 4: Right Front Door Lock Component View (Left Front Similar)

Courtesy of GENERAL MOTORS CORP.

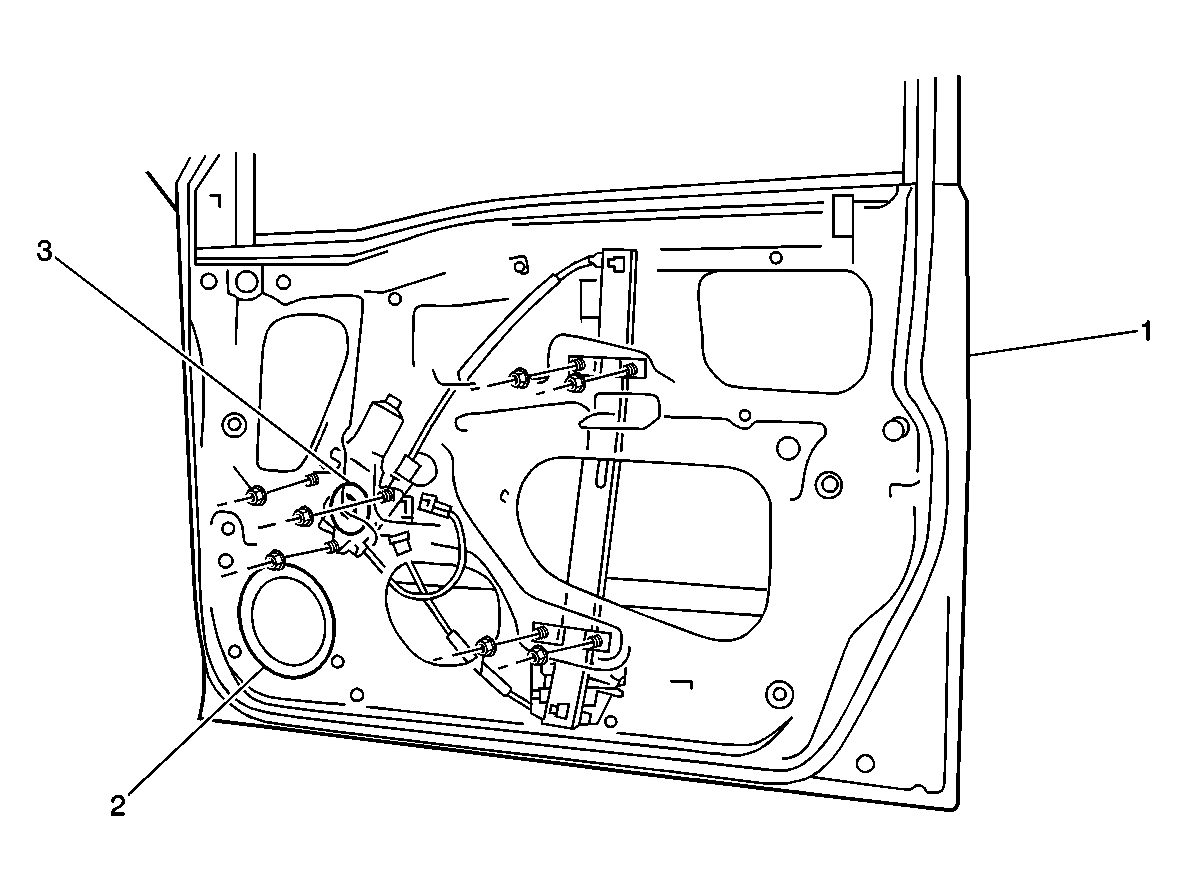

Fig 5: Right Front Door Component View (Left Side Similar)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Right Front Door
2	Right Front Speaker
3	Right Front Window Regulator

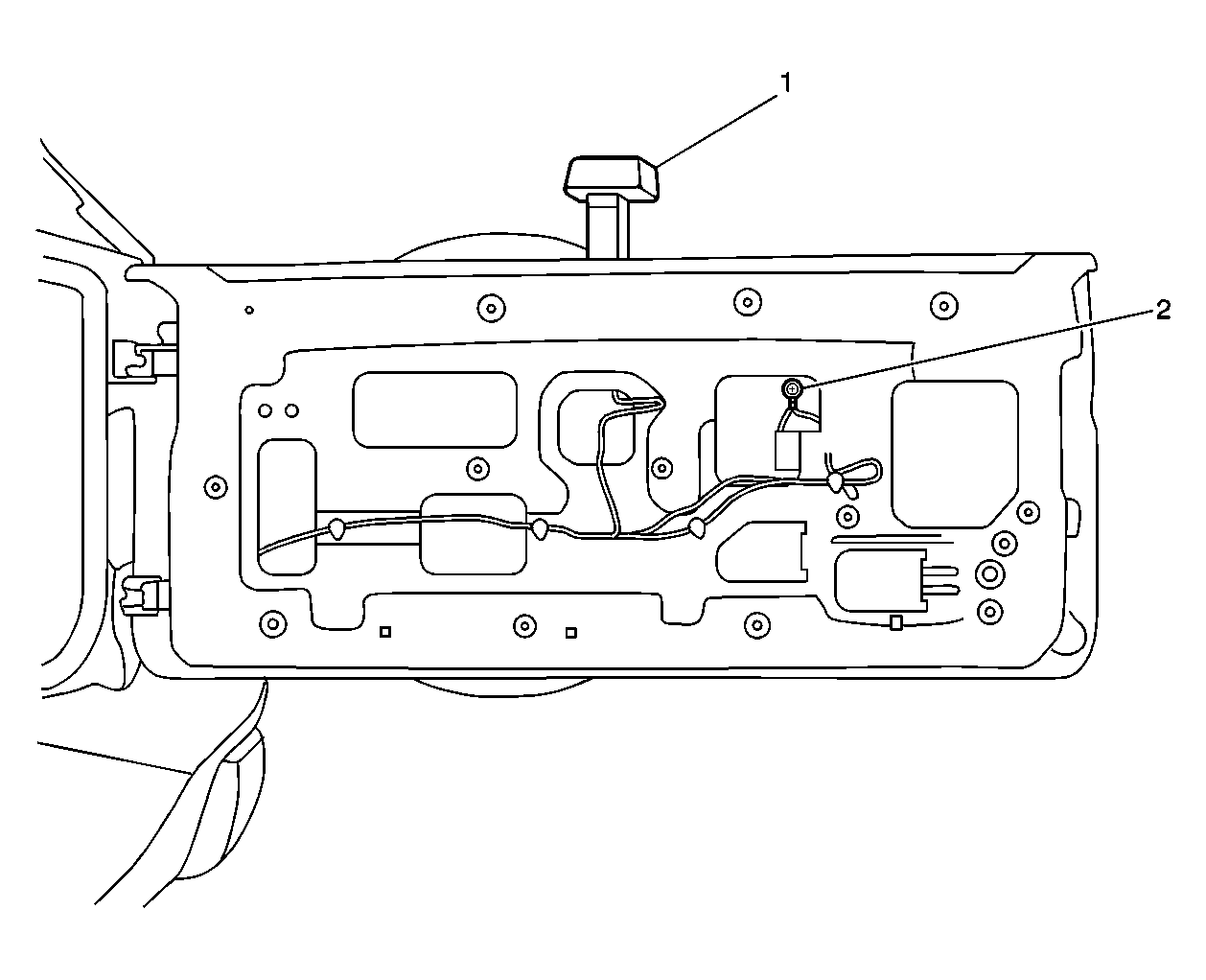

Fig 6: Back Door Component View (2-Door)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	G401

Fig 7: Outer Back Door Component View (4-Door)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Center High Mount Stop Lamp (CHMSL)
2	Rear Door Lock Cylinder Switch
3	License Plate Lamps
4	Rear Defogger
