Installation Procedure

    NOTE: Refer to Fastener Notice in Cautions and Notices.
  1. Install the 4WD switch (1) to the transfer case (2).

    Tighten:  Tighten the 4WD switch to 30 N.m (22 lb ft).

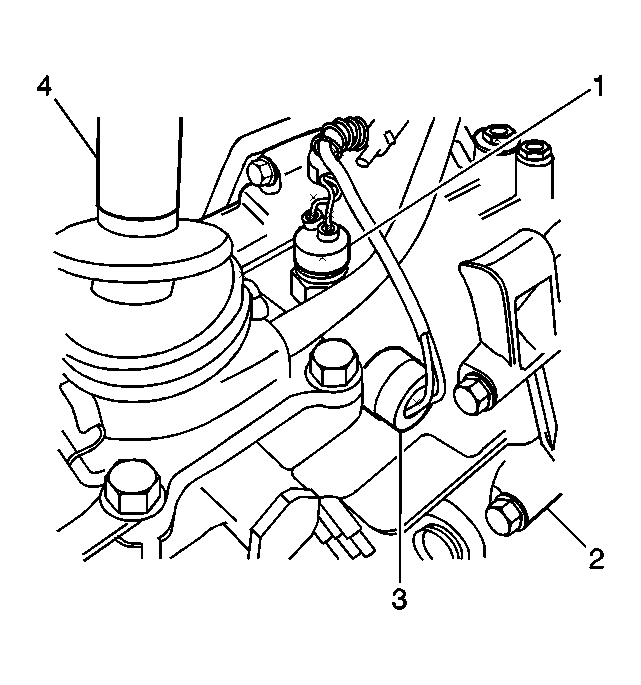

    2. Fig 1: View Of 4WD Switch & Transfer Case
    GM395805Courtesy of GENERAL MOTORS CORP.
  2. Connect the 4WD switch electrical connector (2).

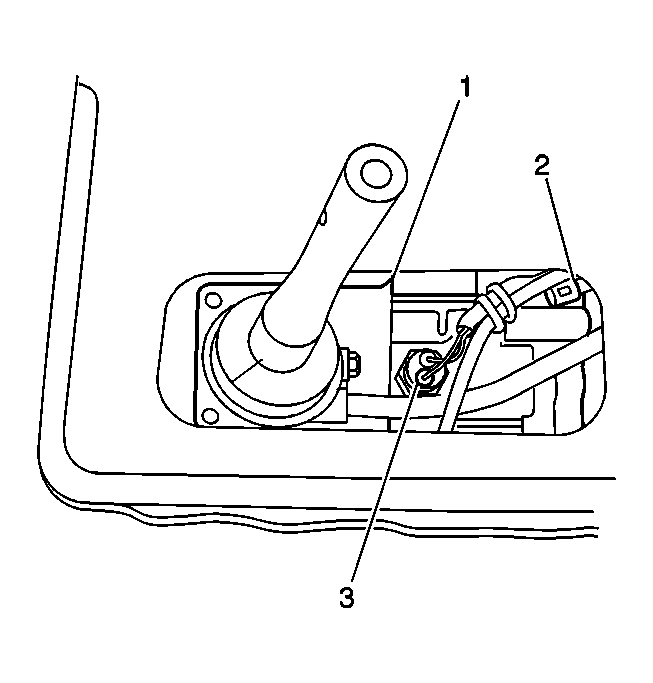

    3. Fig 2: View Of 4WD Switch, Electrical Connector & Transfer Case
    GM479376Courtesy of GENERAL MOTORS CORP.
  3. Install the center console (1).
  4. Install the center console attaching screws (2).

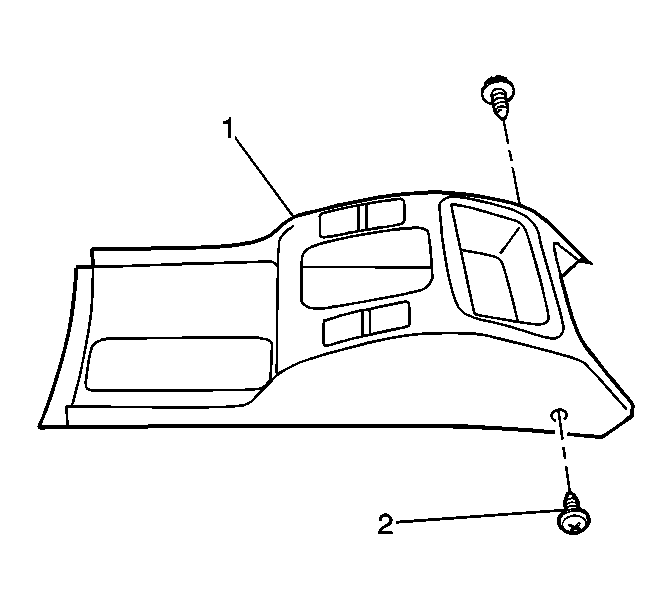

    5. Fig 3: View Of Center Console & Screws
    GM479378Courtesy of GENERAL MOTORS CORP.
  5. Install the parking brake lever bezel (1).
  6. Install the parking brake lever bezel attaching screws (2).
  7. Perform Diagnostic System Check - ABS .
    8. Fig 4: View Of Parking Brake Lever Bezel & Screws
    GM479379Courtesy of GENERAL MOTORS CORP.
