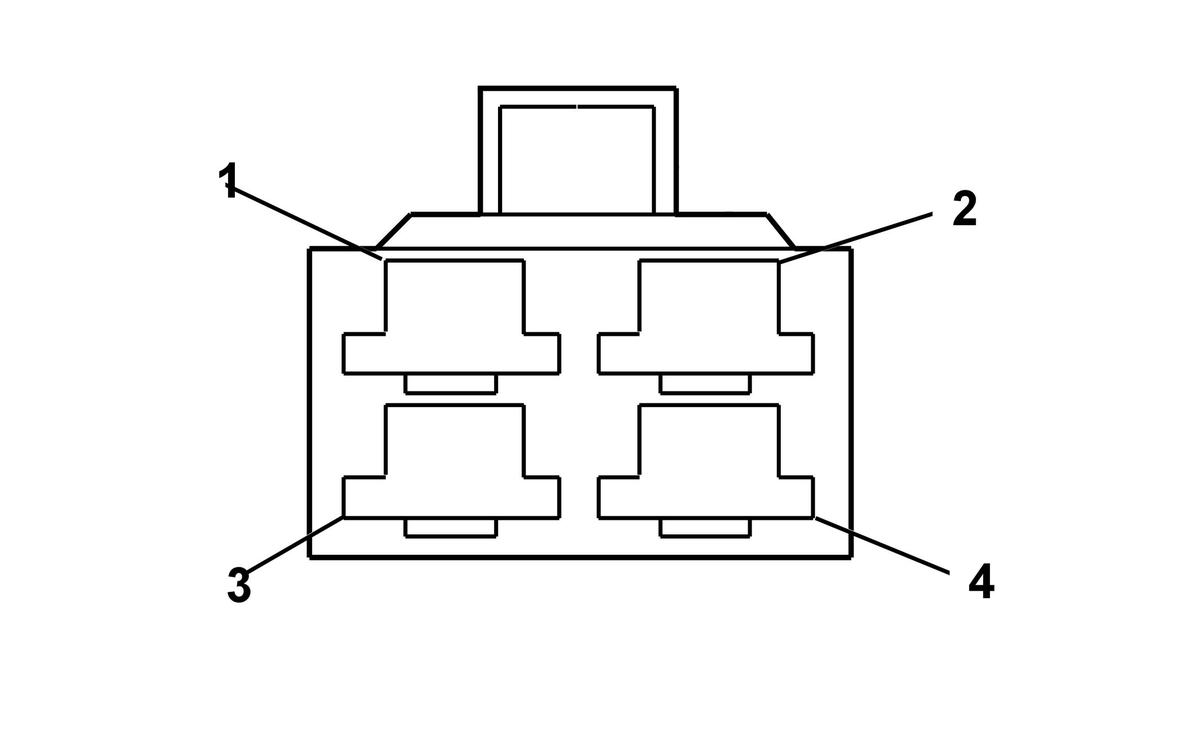

Stop Lamp Switch Connector End View
Stop Lamp Switch Connector End View
 Courtesy of GENERAL MOTORS CORP.
|
| Connector Part Information |
|
| Pin |
Wire Color |
Function |
| 1 |
GRN |
Battery Positive Voltage |
| 2 |
BLU/BLK |
Ignition Positive Voltage |
| 3 |
GRN/WHT |
Brake Lamp Feed/Brake Signal for Cruise Control Servo |
| 4 |
YEL/GRN |
Cruise Interrupt Signal for Cruise Control Servo |
