Wiper/Washer System Connector End Views

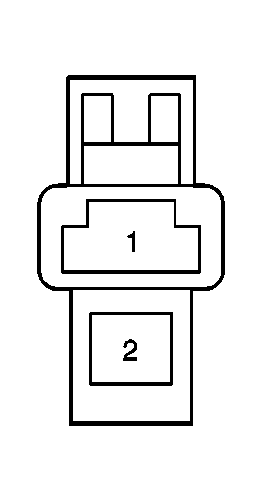

Front Washer Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097050200000 WHT
Pin	Wire Color	Function
1	BLK	Ground G104
2	BLU/BLK	Pump On Signal

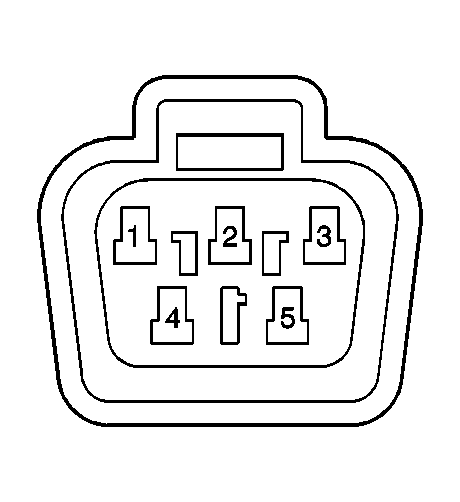

Front Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		0970605W0025 GRY
Pin	Wire Color	Function
1	BLU	Low Signal
2	YEL/BLU	Ignition Positive Voltage
3	BLU/WHT	Park Signal
4	BLU/RED	High Signal
5	BLK	Ground G104

Rear Washer Pump Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097050200001 BLK
Pin	Wire Color	Function
1	BLK	Ground G104
2	BLK/RED	Washer On/Off Signal

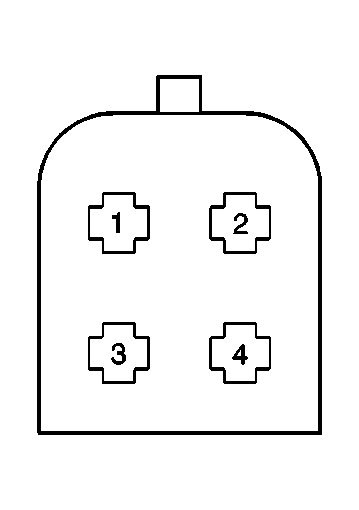

Rear Wiper Motor Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097050410410 WHT
Pin	Wire Color	Function
1	BLU/GRN	Washer On/Off Signal
2	YEL/BLU	Ignition Positive Voltage
3	-	Not Used
4	ORN	Wiper On/Off Signal

Rear Wiper/Washer Switch Connector End View

Courtesy of GENERAL MOTORS CORP.
Connector Part Information		097050610010 NAT
Pin	Wire Color	Function
1	BLK/RED	Washer On Signal
2	RED/YEL	Relay Output Signal
3	YEL/BLU	Ignition Positive Voltage
4	BLU/GRN	Washer Off Signal
5	ORN	Wiper On/Off Signal
6	RED/GRN	Illumination Control Signal
