Lighting Systems Component Views

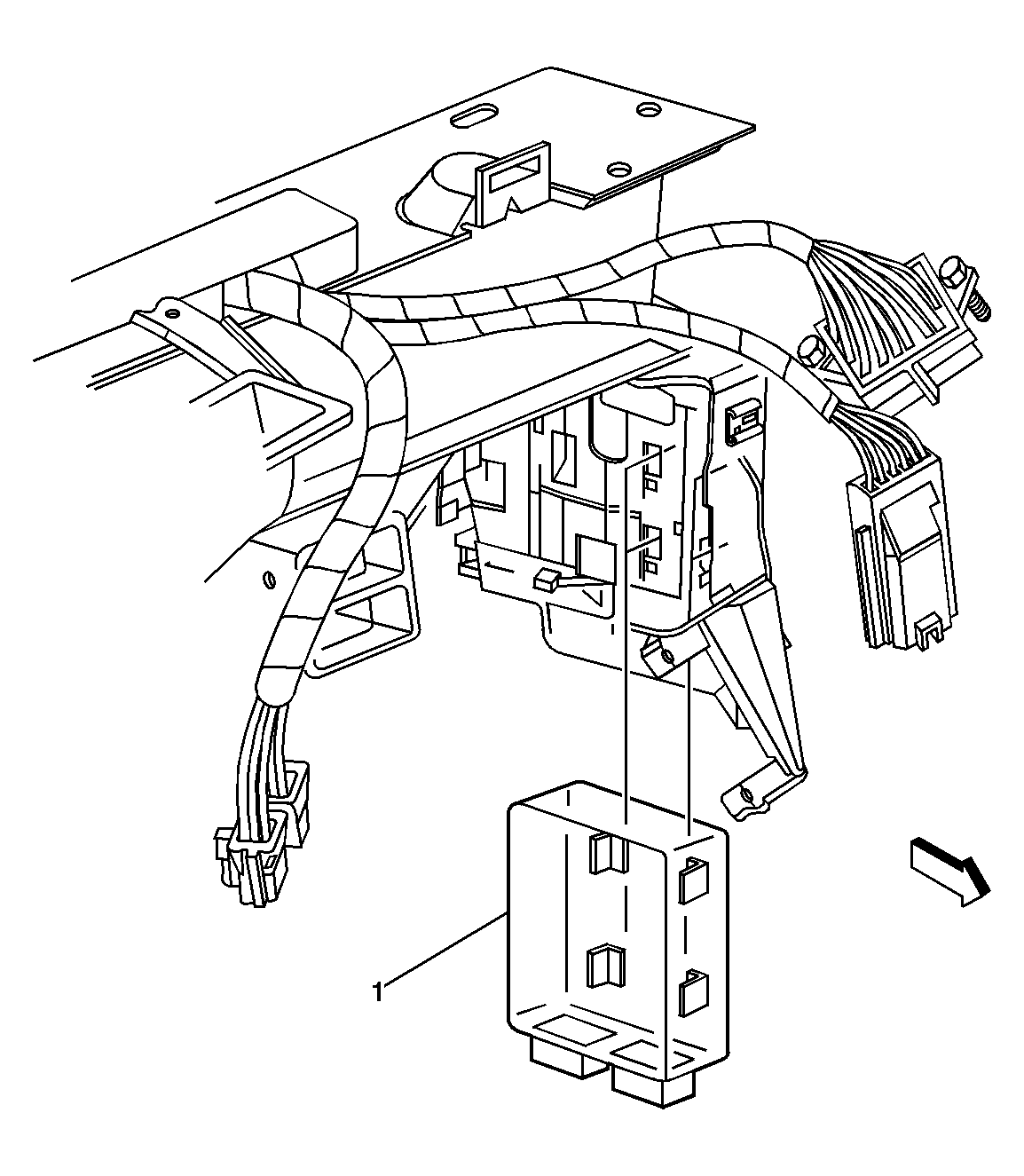

Fig 1: LH Side of I/P, Under I/P, Left of HVAC Component Views
GM850738Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Daytime Running Lamps (DRL) Control Module

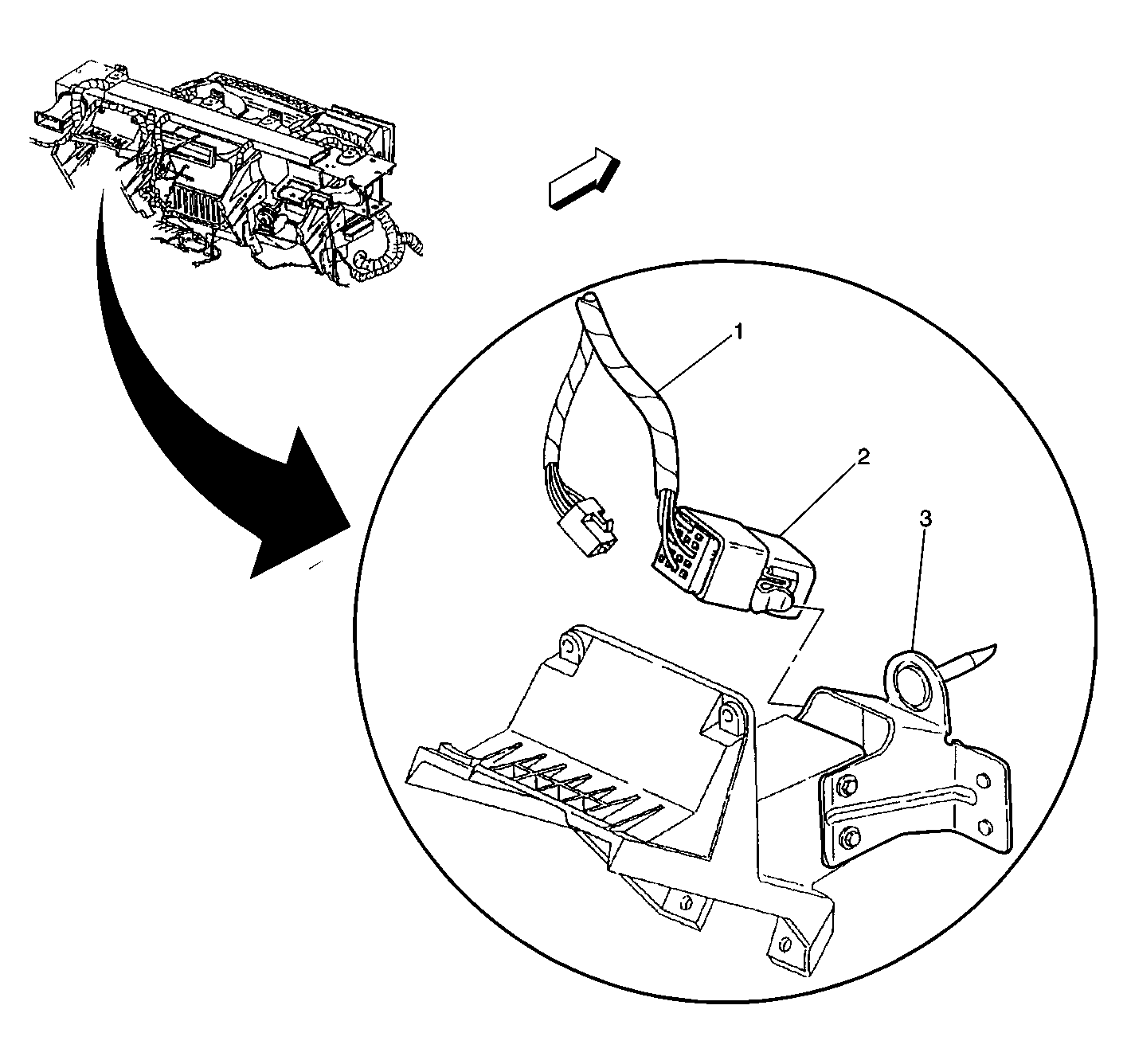

Fig 2: RH Side of I/P, Above Base of Steering Column Component Views
GM447381Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 Turn Signal/Hazard Flasher Module
3 Steering Column Extension Bracket

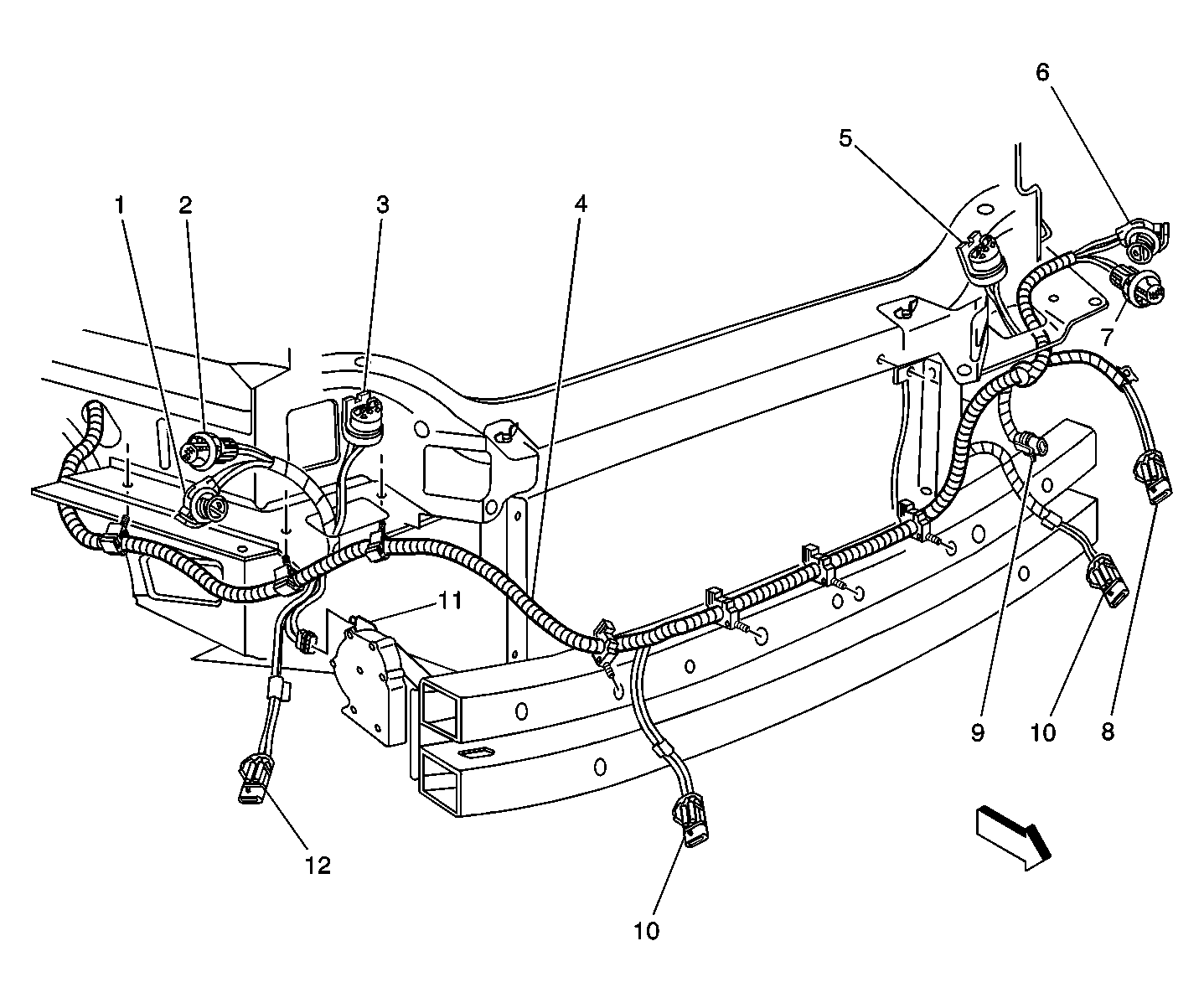

Fig 3: Front of Vehicle Component Views
GM627120Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp-RF
2 Marker Lamp-RF
3 Headlamp Assembly Connector-Right
4 Forward Lamp Harness
5 Headlamp Assembly Connector-Left
6 Park/Turn Signal Lamp-LF
7 Marker Lamp-LF
8 Fog Lamp-LF (Pontiac)
9 Horn-Left
10 Fog Lamp-LF, RF (Oldsmobile)
11 Horn-Right
12 Fog Lamp-RF (Pontiac)

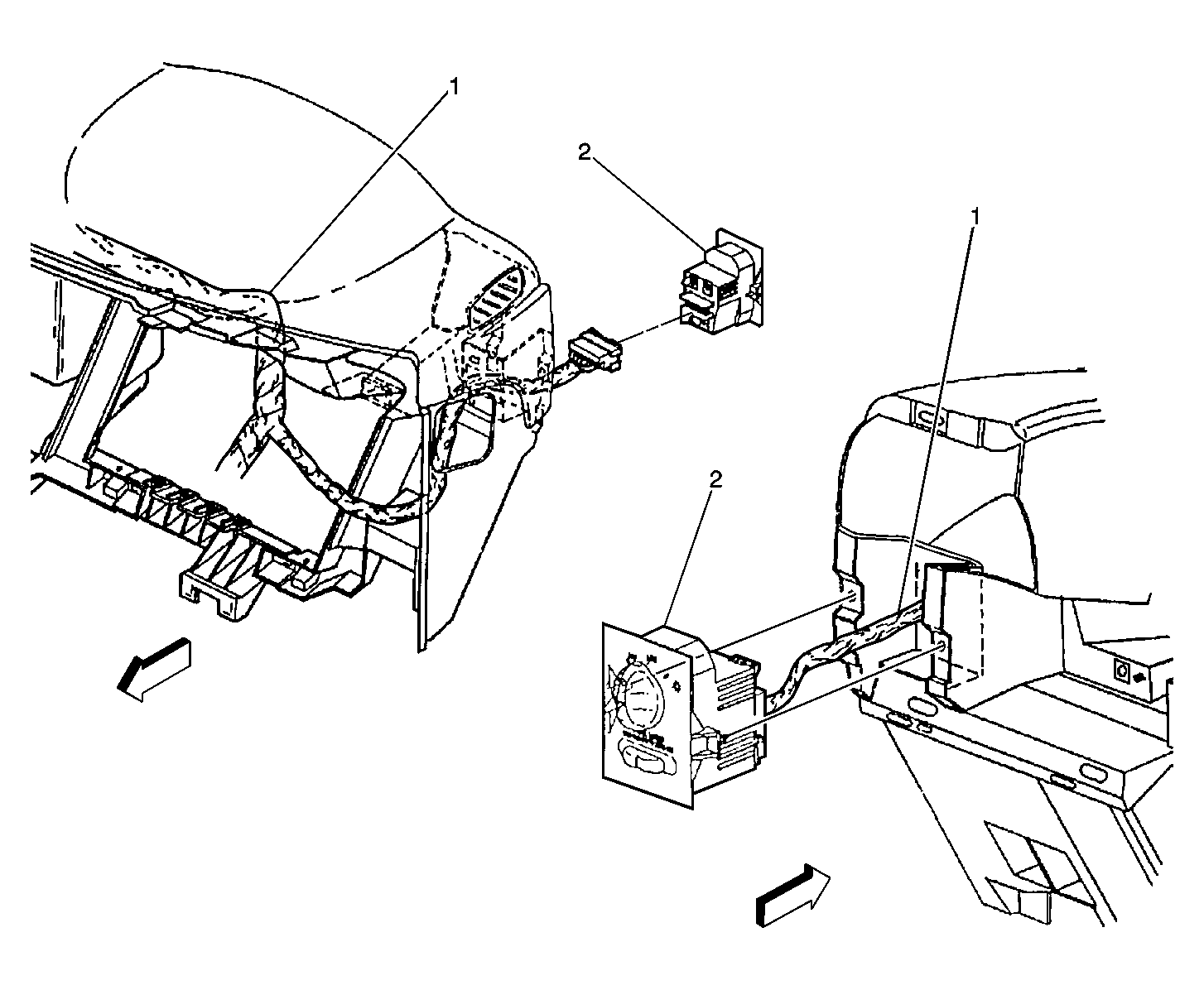

Fig 4: LH Side of I/P Component Views
GM447374Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Harness
2 Headlamp Switch

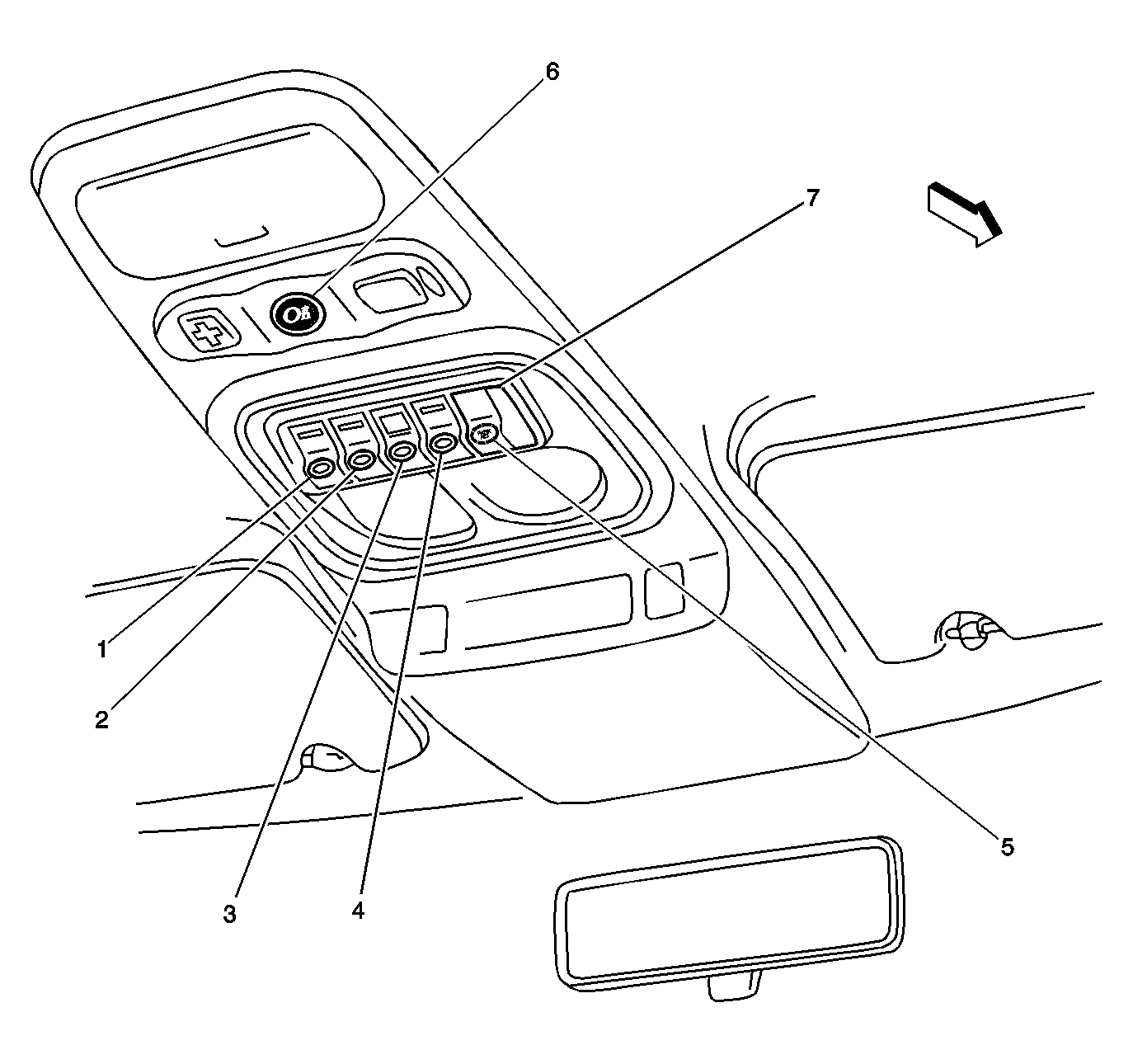

Fig 5: Front of Roof Headliner (Interior Lamp and Multi-function Switch Assembly) Component Views
GM816424Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Interior Lamps Override Switch
2 Power Sliding Door On/Off Switch - Left, Power Sliding Door Open/Close Switch -Left
3 Power Sliding Door On/Off Switch - Right, Power Sliding Door Open/Close Switch -Right
4 Rear Quarter Window Switch
5 Rear Parking Aid Overide Switch
6 Onstar Button Assembly
7 Interior Lamp and Multi-function Switch Assembly

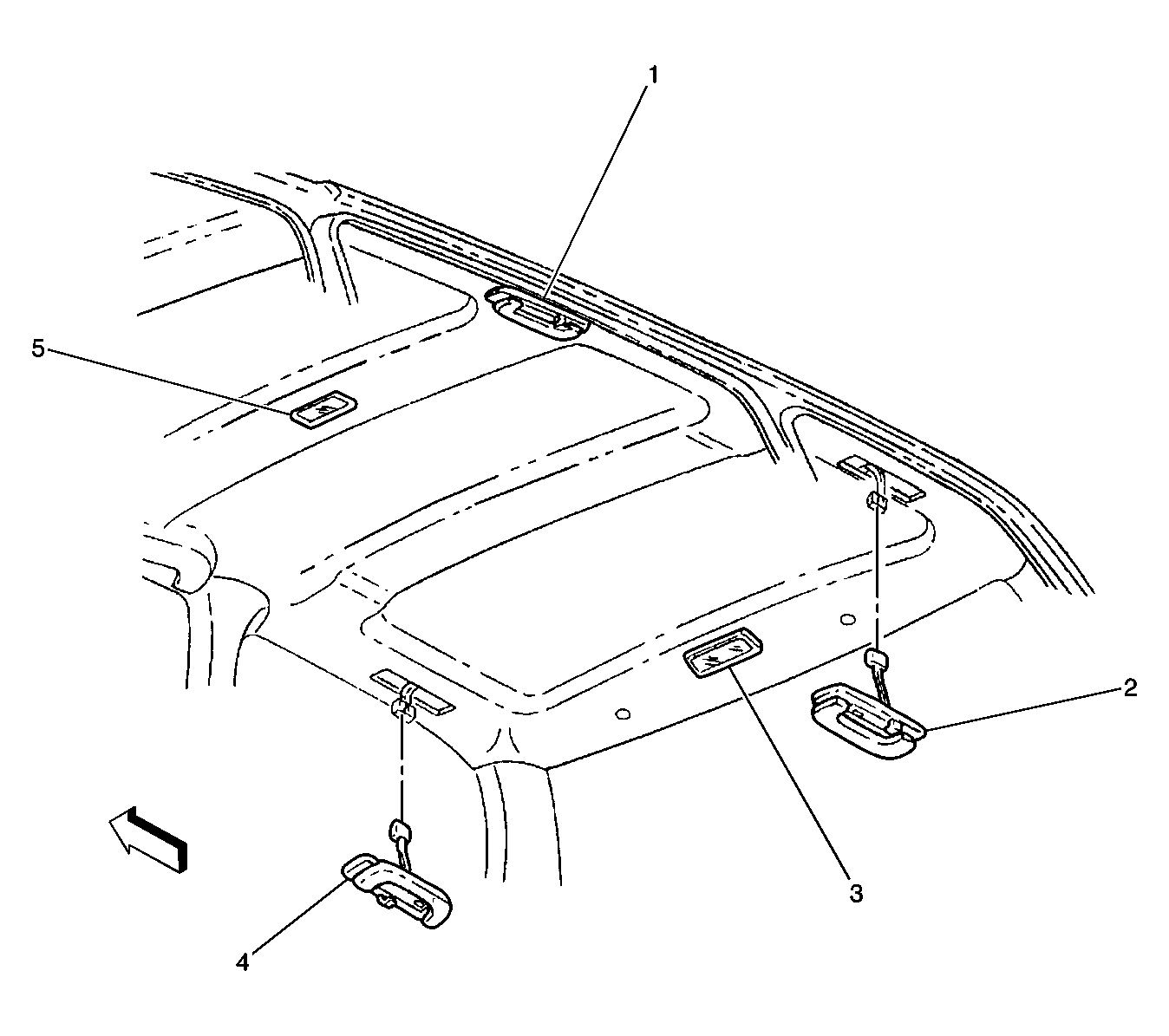

Fig 6: Rear Roof Headliner Component Views
GM447289Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Roof Rail Reading Lamp-RF
2 Roof Rail Reading Lamp-RR
3 Cargo Lamp
4 Roof Rail Reading Lamp-LR
5 Dome Lamp

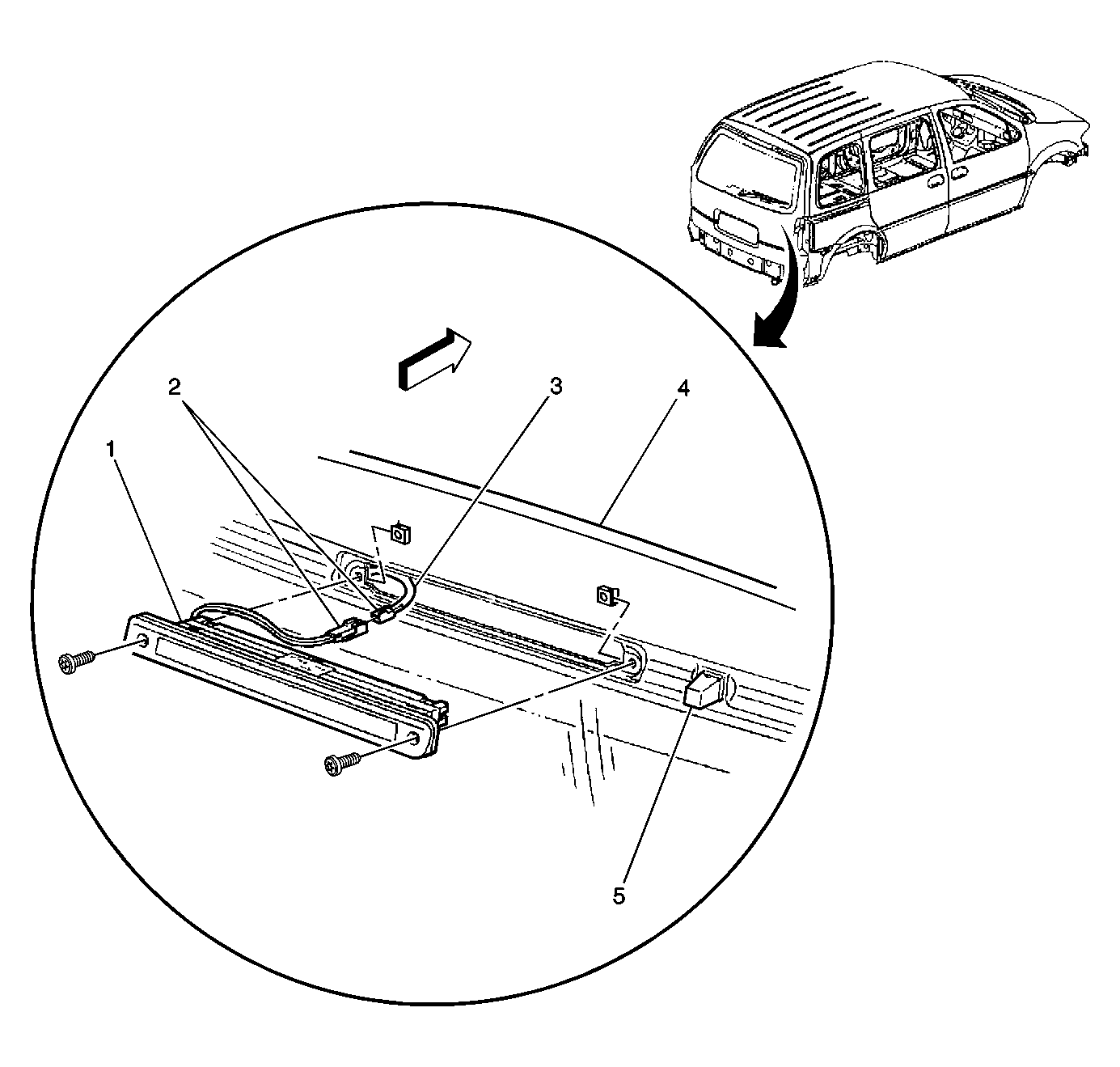

Fig 7: Top of Liftgate Component Views
GM447256Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Center High Mounted Stop Lamp (CHMSL)
2 Connector to CHMSL
3 Liftgate Harness
4 Liftgate
5 Rear Window Washer Nozzle

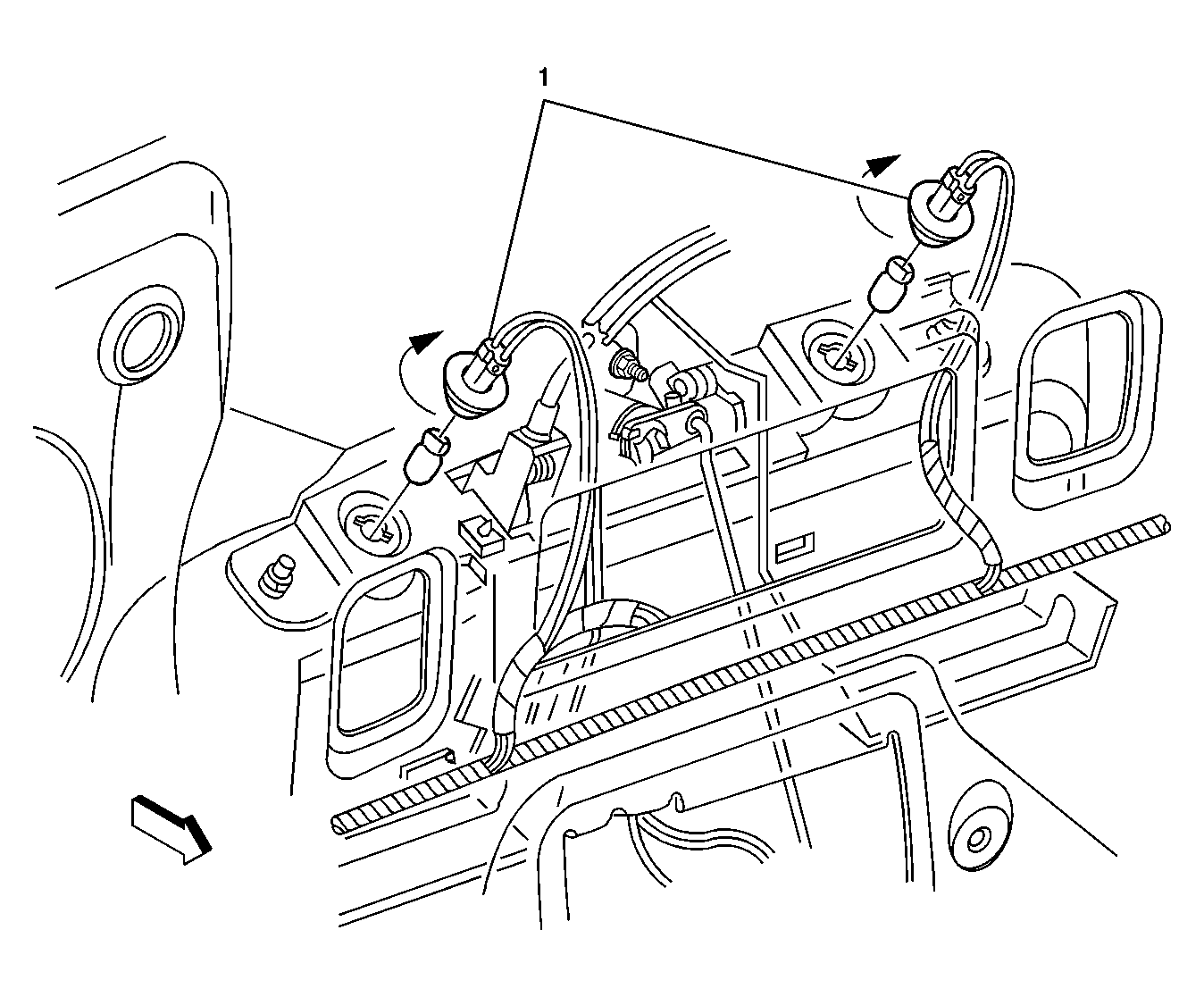

Fig 8: License Lamps Component Views
GM625750Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 License Lamps

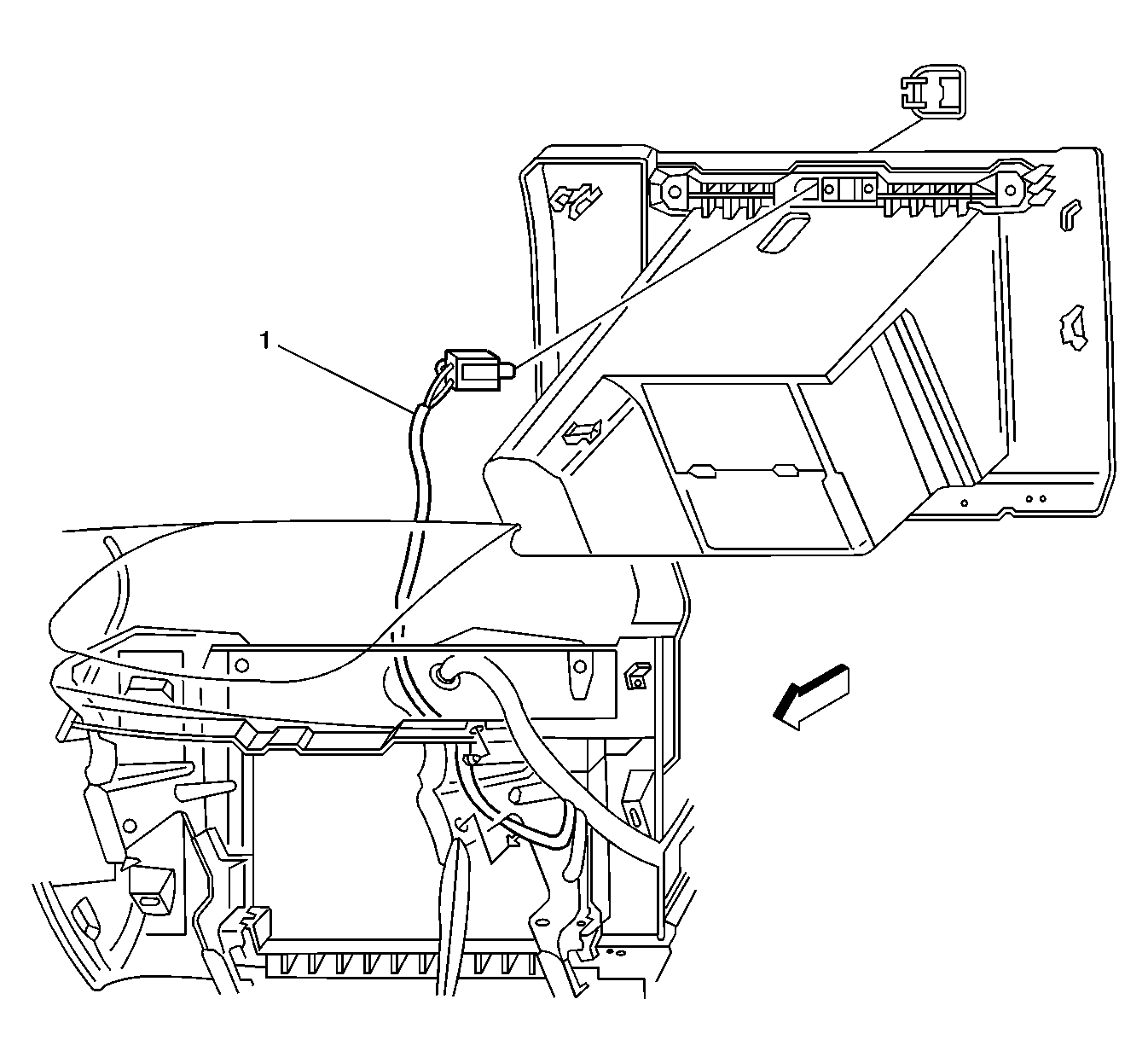

Fig 9: I/P Compartment Lamp Switch Component Views
GM625812Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 I/P Compartment Lamp Switch

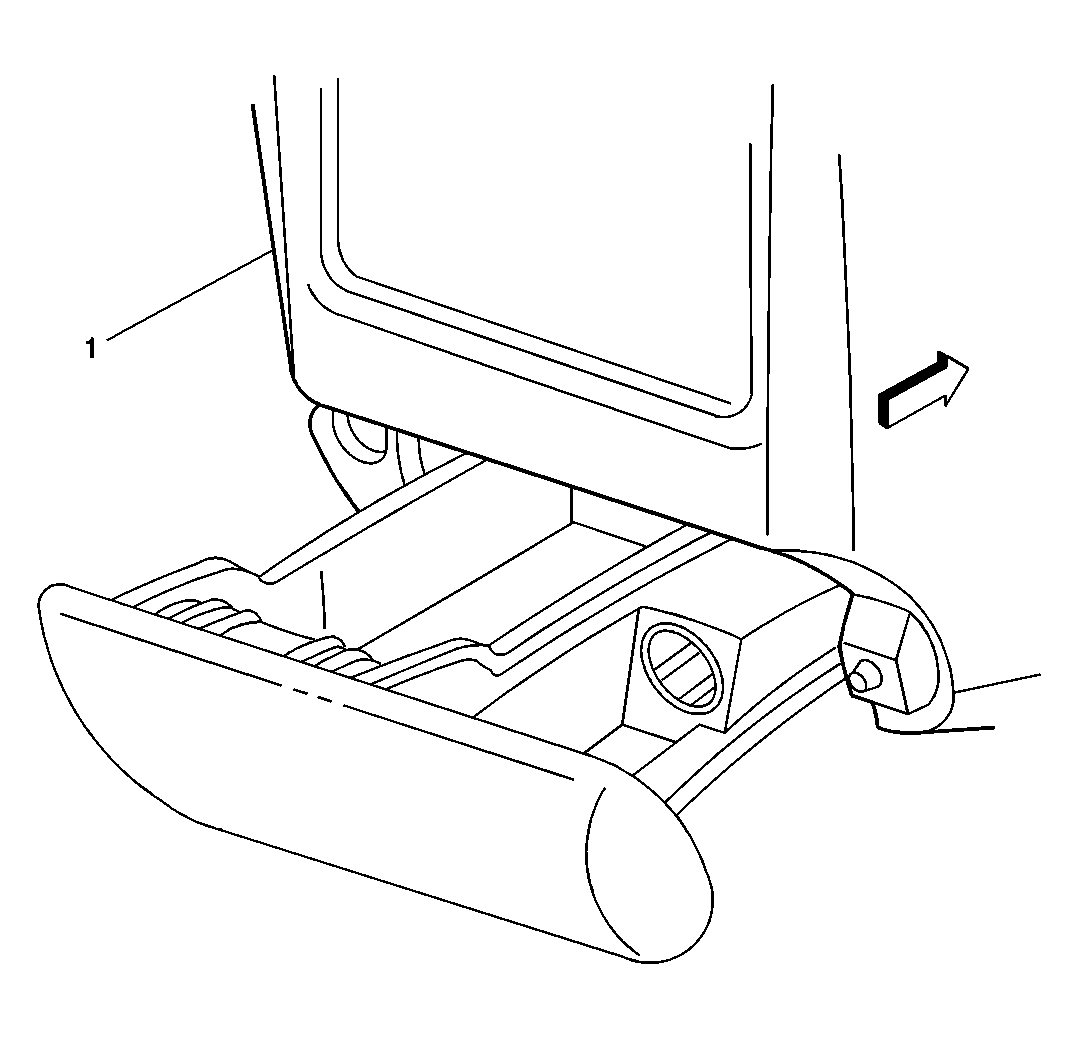

Fig 10: Cigar Lighter Lamp Component Views
GM625816Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Cigar Lighter Lamp

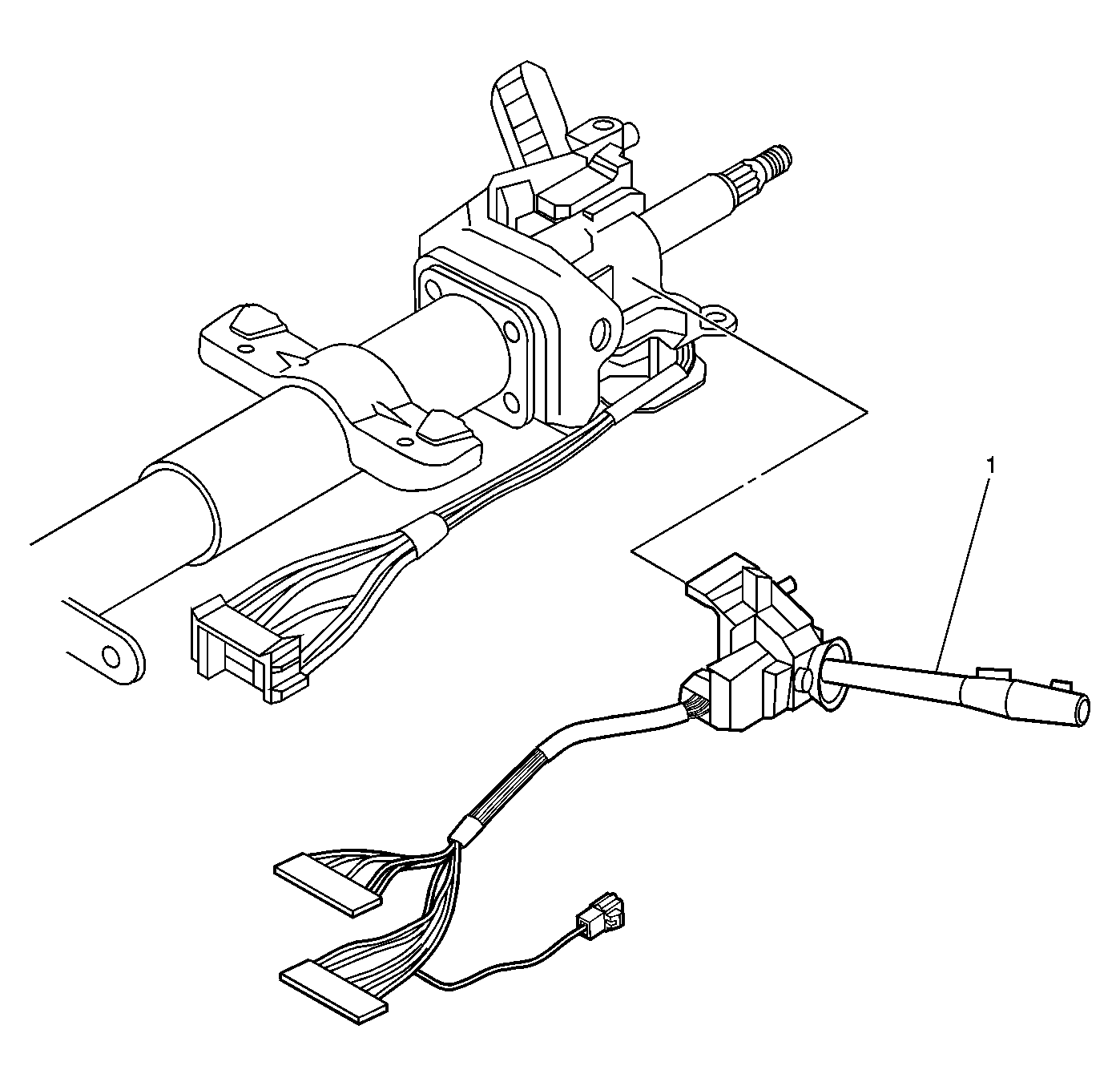

Fig 11: Turn Signal/Multi-Function Switch Component Views
GM626559Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Turn Signal/Multi-function Switch

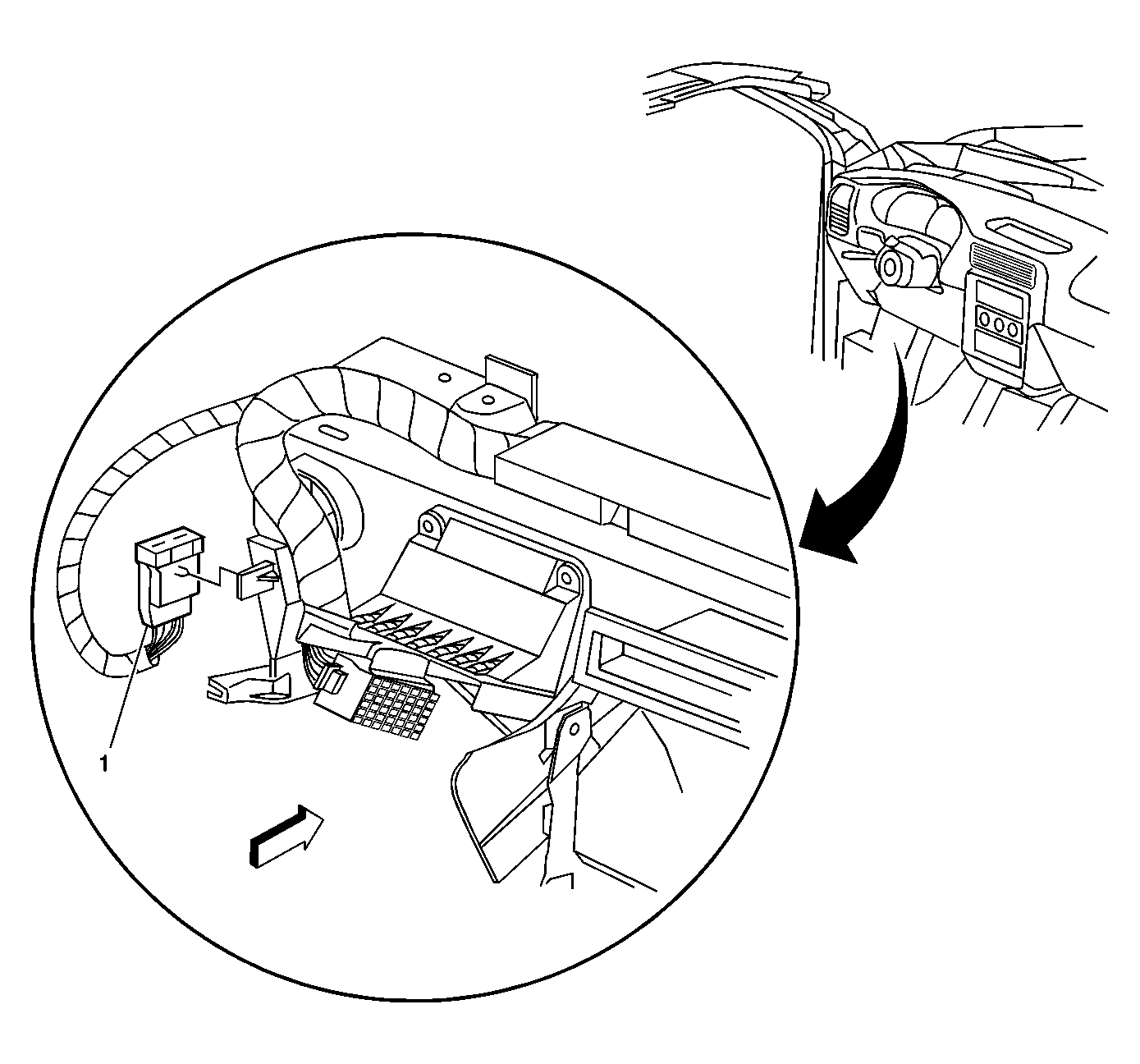

Fig 12: Fog Lamp Module-Rear (Export) Component Views
GM626562Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fog Lamp Module-Rear (Export)

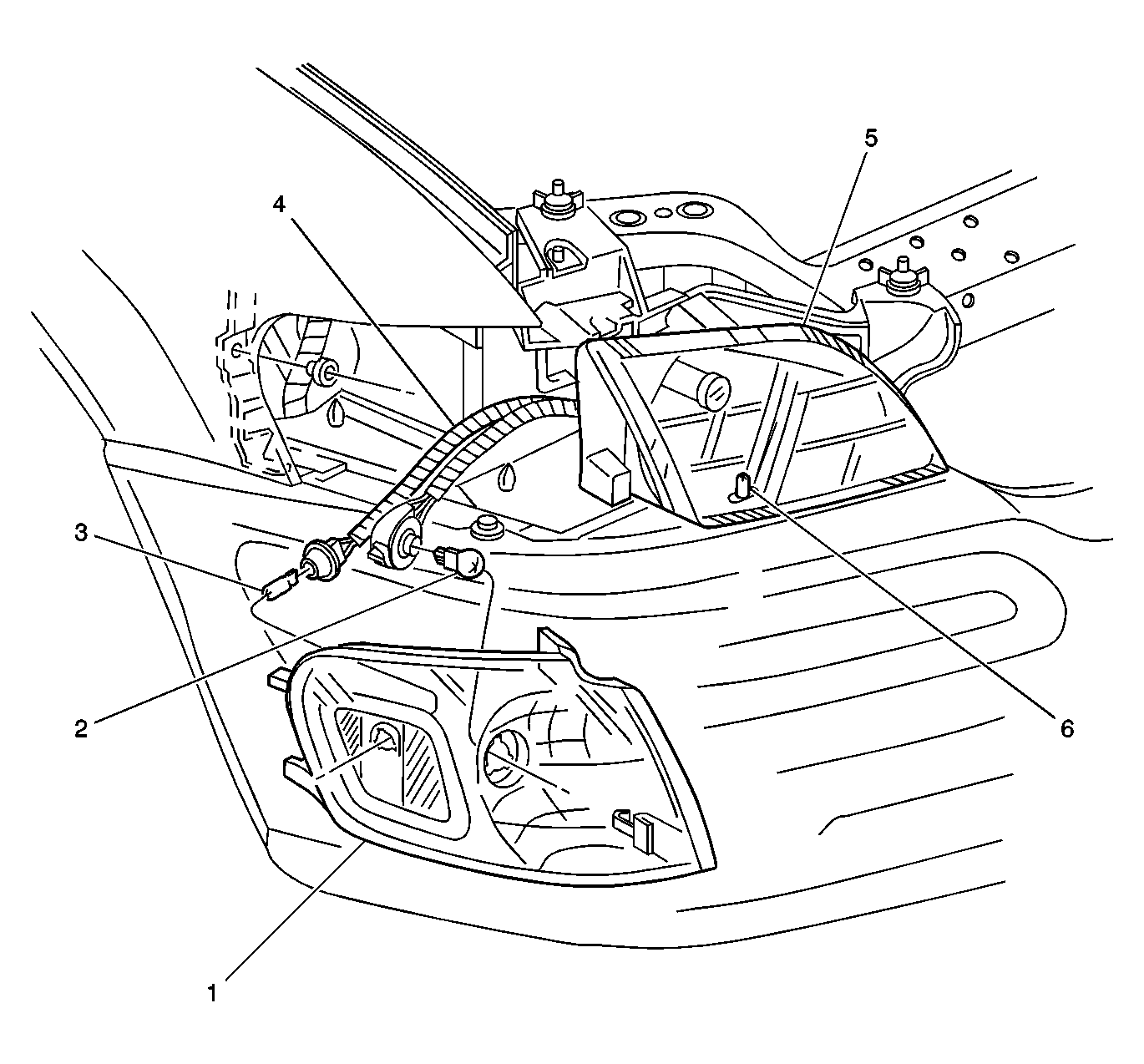

Fig 13: Forward Lamp Assembly
GM626563Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Park/Turn Signal Lamp
2 Park/Turn Signal Lamp-RF Bulb
3 Marker Lamp-RF
4 Forward Lamp Harness
5 Headlamp Assembly-Right
6 Headlamp Position Lamp-Right (Export)
