Wiper/Washer System Component Views

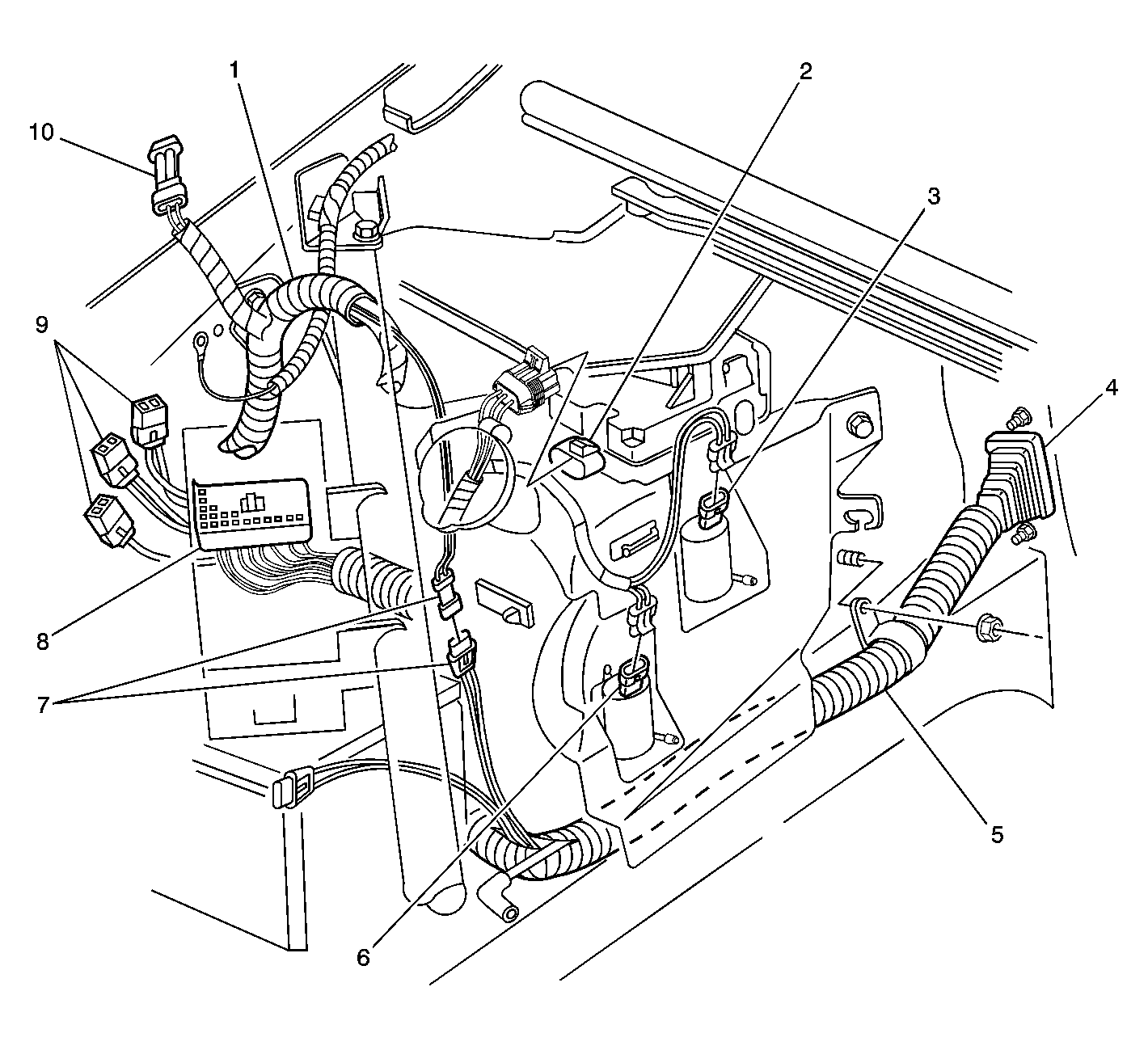

Fig 1: Rear, Left Side of Engine Compartment Component Views
GM447050Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Forward Lamp Harness
2 Windshield Wiper Motor
3 Window Washer Fluid Pump-Rear
4 P100
5 I/P Harness
6 Windshield Washer Fluid Pump
7 In-Line Connector C120, Engine Harness to Forward Lamp Harness
8 Fuse Block-Underhood Connector C2
9 Fuse Block-Underhood Connectors C4, C5, and C6
10 In-Line Connector C172, Engine Harness to Wheel Speed Sensor (WSS)-RF

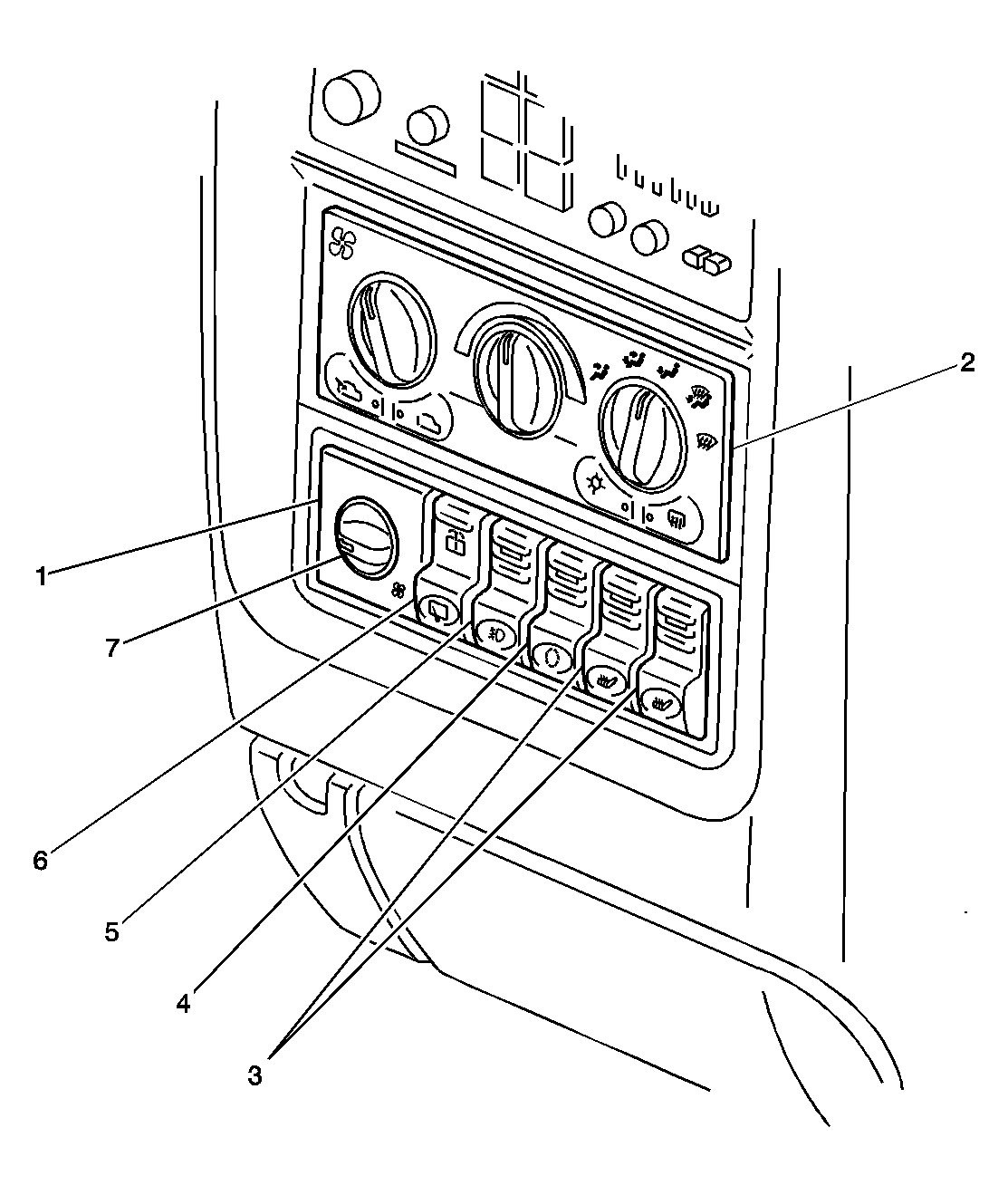

Fig 2: Center of I/P Component Views
GM816843Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Rear Window Wiper/Washer and Multifunction Switch
2 HVAC Control Module
3 Heated Seat Switches
4 Fog Lamp Switch/TCC Switch
5 Fog Lamp Switch
6 Rear Window Wiper/Washer Switch
7 Blower Motor Switch - Auxiliary

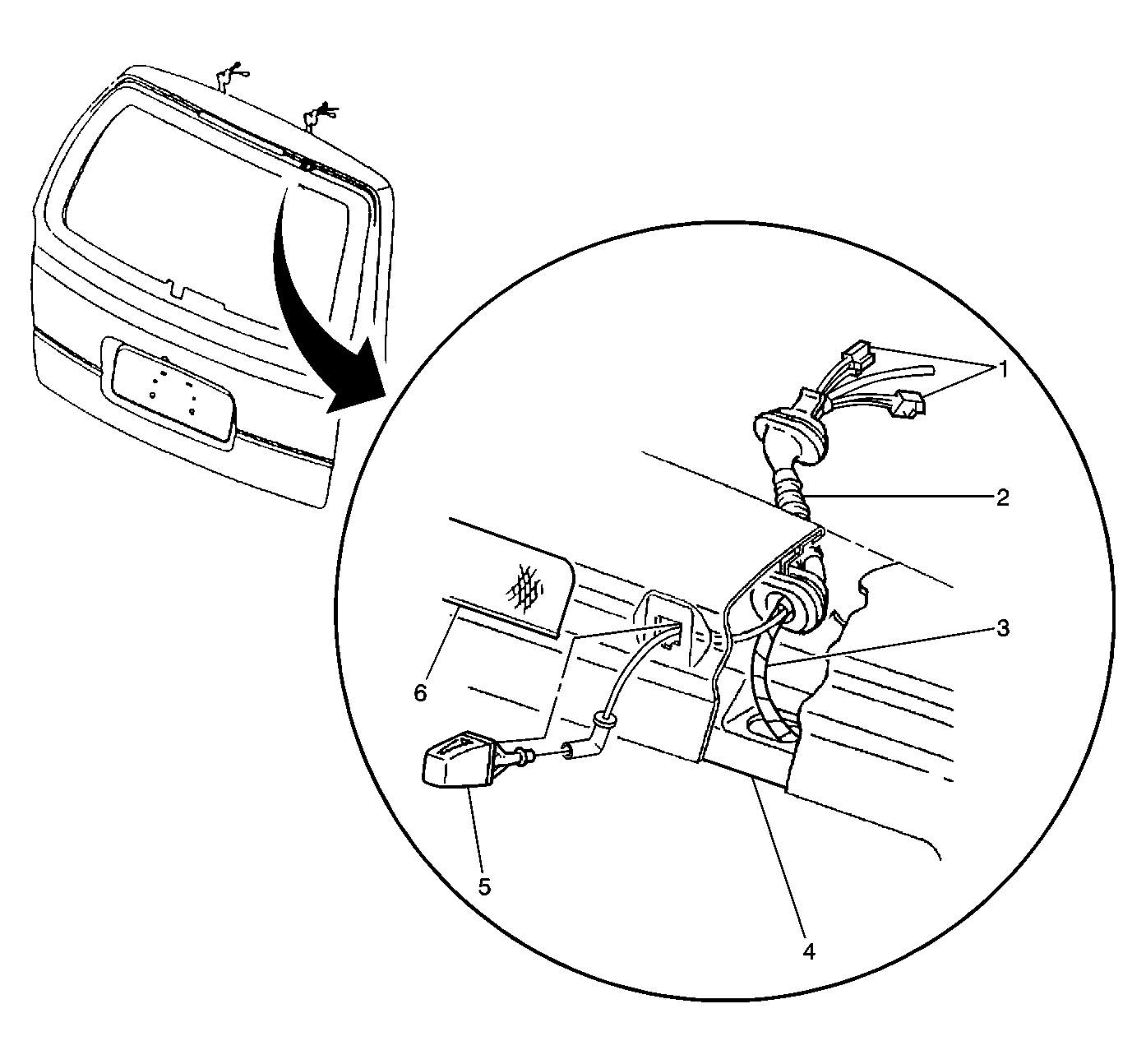

Fig 3: Top, RH Side of Liftgate Component Views
GM447281Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 In-Line Connectors C400 and C402
2 Pass Through P406 (P405 Similar)
3 Liftgate Harness
4 RH Top of Liftgate
5 Rear Window Washer Nozzle
6 Center High Mounted Stop Lamp (CHMSL)
