Installation Procedure

  1. Connect the electrical connector to the steering wheel control switch.
  2. Push the steering wheel controls switch into the steering wheel.

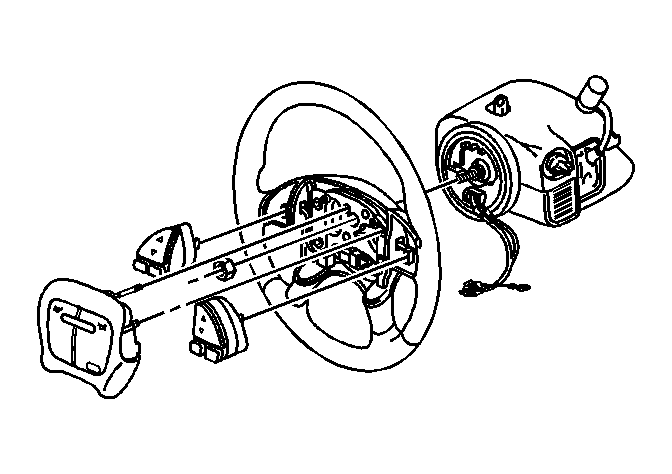

    Fig 1: View Of Steering Wheel Control Switch Assembly
    GM754646Courtesy of GENERAL MOTORS CORP.
  3. Install the steering wheel controls wire harness to the retainers in the steering wheel.
  4. Install the inflatable restraint steering wheel module. Refer to Inflatable Restraint Steering Wheel Module Replacement in SIR.
