Removal Procedure

  1. Remove the left rear quarter lower trim panel. Refer to Trim Panel Replacement - Rear Quarter - Right in Interior Trim.

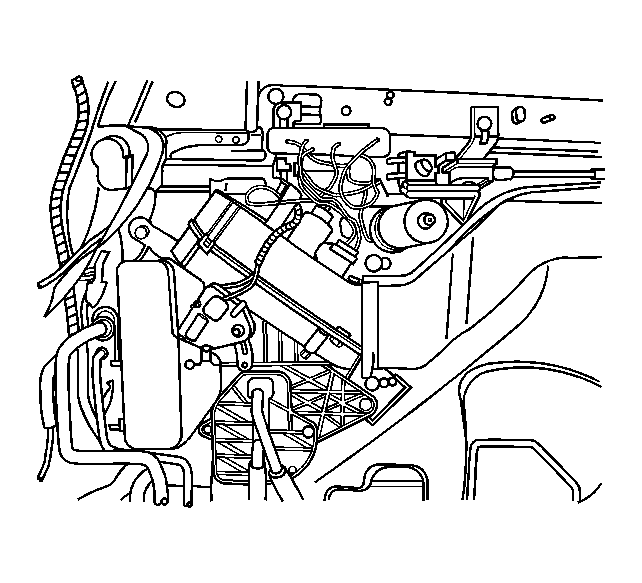

    2. Fig 1: View Of Actuator Control Module
    GM1253916Courtesy of GENERAL MOTORS CORP.
  2. Disconnect the electrical connectors from the power sliding door (PSD) actuator control module (2).
  3. Pull the PSD actuator control module (2) inboard in order to unhook the control module from the actuator motor.
