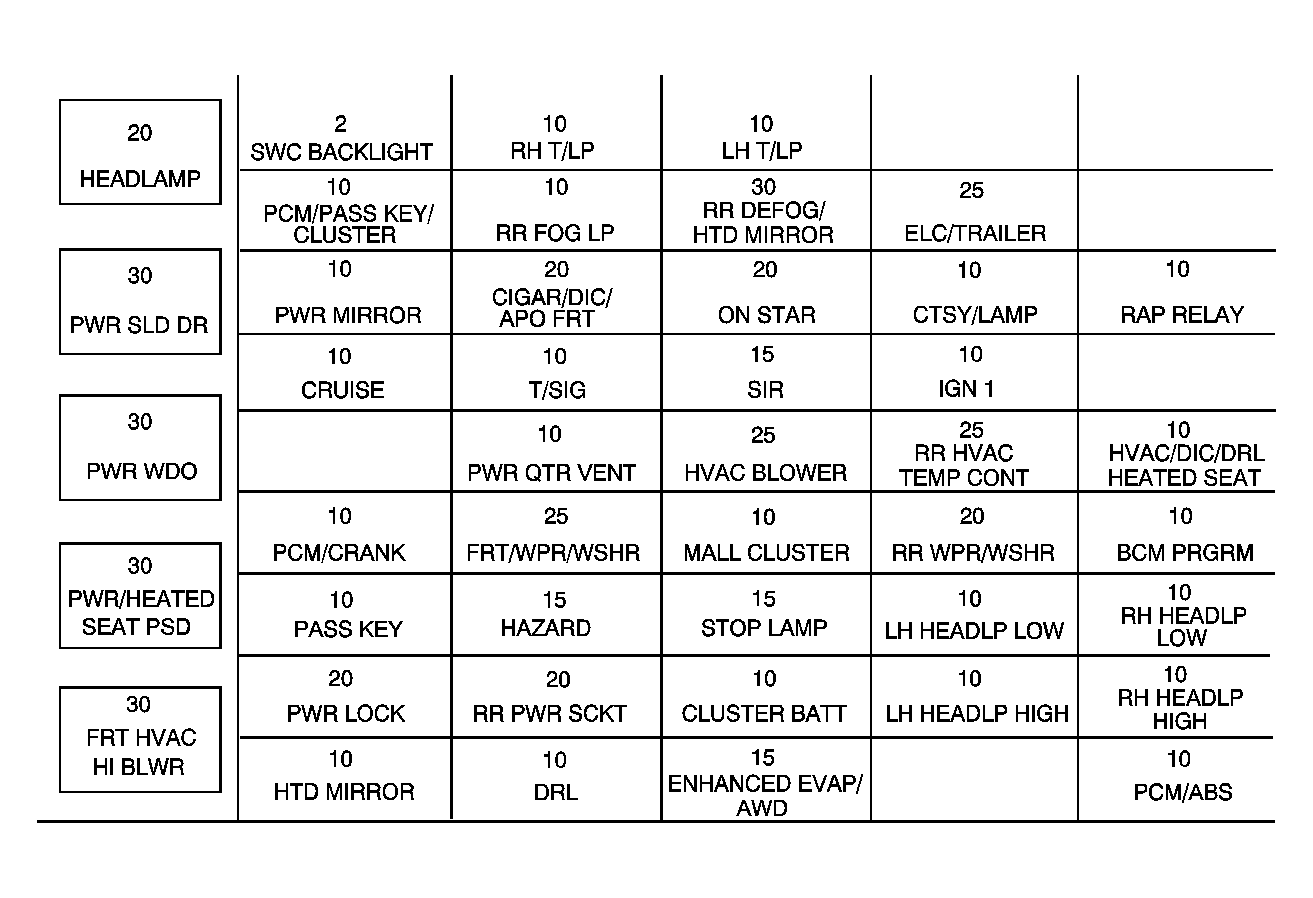

Fuse Block-I/P Label
Fuse Block-I/P Application Table
| Fuse/Circuit Breaker | Rating | Description |
|---|---|---|
| BCM PRGRM | 10A | Body Control Module (BCM) |
| ENHANCED EVAP/AWD | 15A | Evaporative Emission (EVAP) Canister Vent Solenoid, Clutch Pump Check Valve |
| CIGAR/DLC/APO FRT | 20A | Auxiliary Power Outlet-Front, Cigar Lighter, Data Link Connector (DLC) |
| CLUSTER/BATT | 10A | Instrument Panel Cluster (IPC) |
| CRUISE | 10A | Cruise Control Module (CCM), Cruise Control Release Switch, Cruise Control ON/OFF Switch |
| CTSY LAMP | 10A | Body Control Module (BCM) |
| DRL | 10A | Daytime Running Lamps (DRL) Control Module |
| HVAC/DIC/DRL/HEATED SEAT | 10A | Air Temperature Actuator-Left, Air Temperature Actuator-Right, Daytime Running Lamps (DRL) Control Module, Driver Information Center (DIC), Mode Actuator, Rear Window Wiper/Washer and Multifunction Switch (Heated Seat Switch), Recirculation Actuator, Relay Block (Rear Window Defogger Relay) |
| ELC/TRAILER | 25A | Auto Level Control (ALC) Air Compressor, Auto Level Control (ALC) Air Inflator Relay, Auto Level Control (ALC) Sensor |
| FRT HVAC HI BLWR | 30A | Blower Motor Resistor Assembly |
| FRT WPR/WSHR | 25A | Windshield Wiper Motor, Windshield Wiper/Washer Switch |
| HAZARD | 15A | Turn Signal/Multifunction Switch |
| HEADLAMP | 20A | Daytime Running Lamps (DRL) Control Module, Headlamp Dimmer Switch, Headlamp Switch |
| HTD MIRROR | 10A | Outside Rearview Mirrors-Left, Right |
| HVAC/BLOWER | 25A | HVAC Control Module |
| IGN1 | 10A | Body Control Module (BCM), Instrument Panel Cluster (IPC), Left Rear Side Door Actuator Control Module, Rear Object Sensor Control Module, Right Rear Side Door Actuator Control Module, Stop Lamp Switch |
| LH HEADLP HIGH | 10A | Headlamp High Beam-Left |
| LH HEADLP LOW | 10A | Headlamp Low Beam-Left |
| LH T/LP | 10A | Tail Lamp-Left, Trailer Rear Wiring Harness |
| MALL/CLUSTER | 10A | Body Control Module (BCM), Instrument Panel Cluster (IPC) |
| ON STAR | 5A | Vehicle Interface Unit (VIU) |
| PASS KEY | 10A | Theft Deterrent Control Module |
| PCM/ABS | 10A | Electronic Brake Control Module (EBCM), Fuse Block-Underhood, Powertrain Control Module (PCM), Park/Neutral Position (PNP) Switch |
| PCM/CRANK | 10A | Powertrain Control Module (PCM) |
| PCM/PASS KEY/CLUSTER | 10A | Instrument Panel Cluster (IPC), Powertrain Control Module (PCM), Theft Deterrent Control Module, Instrument Panel Cluster (IPC), Powertrain Control Module (PCM) |
| PWR LOCK | 20A | Body Control Module (BCM) |
| PWR MIRROR | 10A | Outside Rearview Mirror Switch |
| PWR QTR VENT | 10A | Auto Level Control (ALC) Air Compressor, Auto Level Control (ALC) Sensor, Rear Quarter Window Switch |
| PWR/HEATED SEAT PSD | 30A | Driver Seat Assembly, Passenger Seat Assembly |
| PWR SLDG DR | 30A | Left Rear Side Door Actuator Control Module, Right Rear Side Door Actuator Control Module |
| PWR WDO | 30A | Window Switch-Driver, Window Switch-Front Passenger |
| RAP RELAY | 10A | Relay Block (RAP Relay) |
| RH HEADLP HIGH | 10A | Headlamp High Beam-Right |
| RH HEADLP LOW | 10A | Headlamp Low Beam-Right |
| RR HVAC/TEMP CONT | 25A | Air Temperature Actuator-Auxiliary, Blower Motor-Auxiliary, Blower Motor Relay-Auxiliary, HVAC Control Assembly-Auxiliary, Mode Actuator-Auxiliary |
| RR DEFOG/ HTD MIRROR | 30A | Window Defogger Relay-Rear |
| RR FOG LP | 10A | Fog Lamp Relay-Rear |
| RR PWR SCKT | 20A | Auxiliary Power Outlet-Rear |
| RH T/LP | 10A | Tail Lamp-Right, Trailer Rear Wiring Harness |
| RR WPR/WSHR | 20A | Window Wiper Motor-Rear, Rear Window Wiper/Washer and Multifunction Switch |
| SIR | 15A | Inflatable Restraint Sensing and Diagnostic Module (SDM) |
| STOP LAMP | 15A | Stop Lamp Switch |
| SWC BACKLIGHT | 2A | Steering Wheel Controls-Left, Right |
| T/SIG | 10A | Turn Signal Switch and Backup Lamp Relay |
