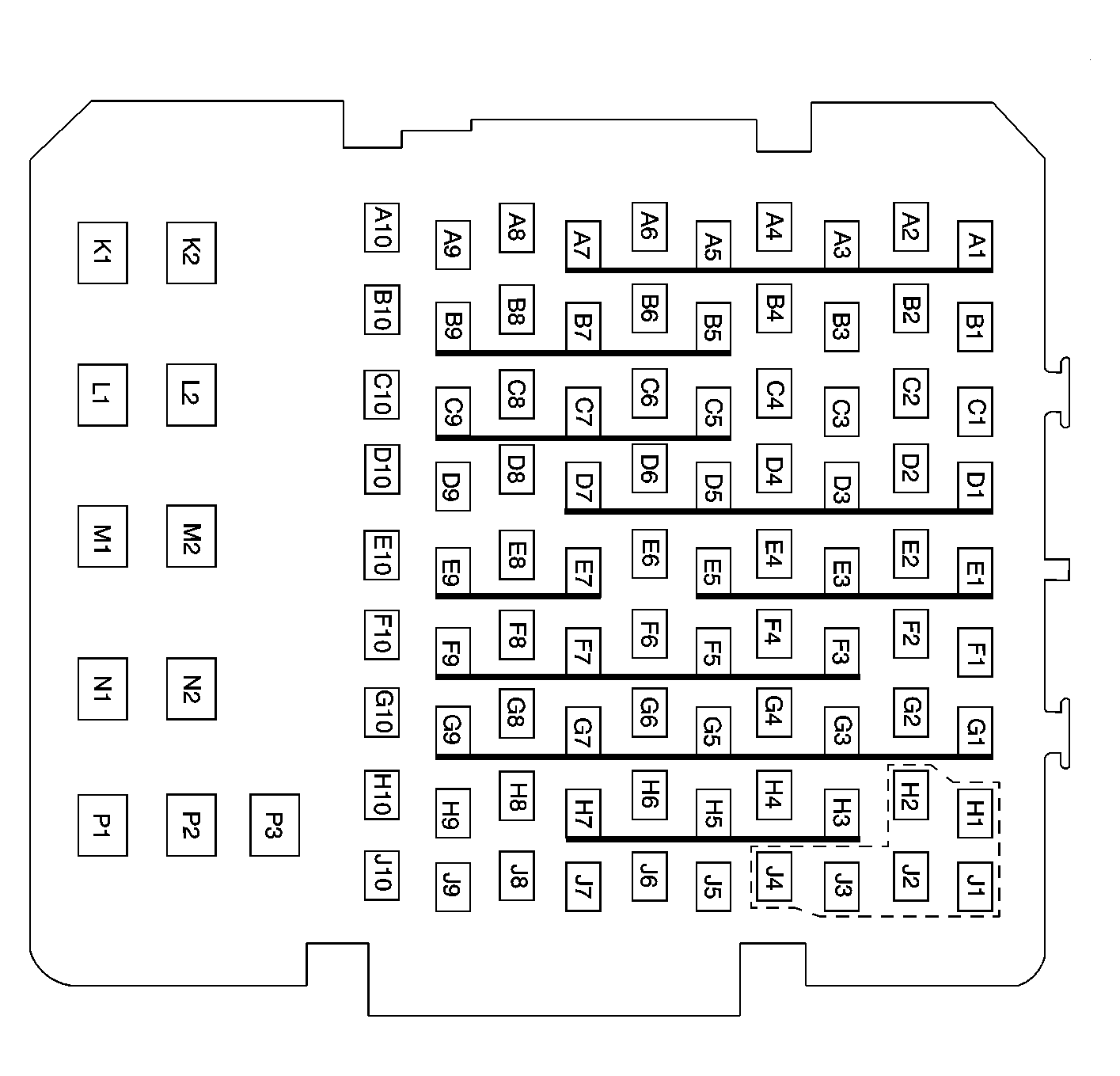

Fuse Block-I/P (Bottom)
Fuse Block-I/P Application Table
| Connector Part Information |
|
||
|---|---|---|---|
| Pin | Wire Color | Circuit No. | Function |
| A1 | PNK | 3 | Ignition 1 Voltage |
| A2 | PNK | 439 | Ignition 1 Voltage |
| A3-A5 | - | - | Not Used |
| A6 | PNK | 1039 | Ignition 1 Voltage |
| A7 | - | - | Not Used |
| A8 | PNK | 1839 | Ignition 1 Voltage |
| A9 | PPL | 293 | Rear Defog Element Supply Voltage |
| A10 | ORN | 267 | Heated Mirror/Rear Defog Relay Coil Supply Voltage |
| B1 | LT GRN | 11 | Headlamp Dimmer Switch Signal |
| B2 | LT GRN/BLK | 311 | Right Headlamp High Beam Supply Voltage |
| B3 | - | - | Not Used |
| B4 | DK GRN/WHT | 711 | Left Headlamp High Beam Supply Voltage |
| B5 | RED | 242 | Battery Positive Voltage |
| B6 | ORN | 2940 | Battery Positive Voltage |
| B7 | - | - | Not Used |
| B8 | ORN | 2540 | Battery Positive Voltage |
| B9 | - | - | Not Used |
| B10 | ORN | 1540 | Battery Positive Voltage |
| C1 | TAN | 12 | Right Headlamp High Beam Supply Voltage |
| C2 | TAN/WHT | 312 | Right Headlamp Low Beam Supply Voltage |
| C3 | - | - | Not Used |
| C4 | YEL | 712 | Left Headlamp Low Beam Supply Voltage |
| C5 | RED | 642 | Battery Positive Voltage |
| C6 | ORN | 140 | Battery Positive Voltage |
| C7 | - | - | Not Used |
| C8 | ORN | 1840 | Battery Positive Voltage |
| C9 | - | - | Not Used |
| C10 | ORN | 3140 | Battery Positive Voltage |
| D1 | BRN | 4 | Accessory Voltage |
| D2 | ORN/BLK | 1445 | BCM Program Enable Signal |
| D3 | - | - | Not Used |
| D4 | WHT | 393 | Rear Window Wiper Motor Control |
| D5 | - | - | Not Used |
| D6 | YEL | 43 | Accessory Voltage |
| YEL | 43 | Accessory Voltage | |
| D7 | - | - | Not Used |
| D8 | YEL | 243 | Accessory Voltage |
| D9 | YEL | 5 | Crank Voltage |
| D10 | PPL | 806 | Crank Voltage |
| E1 | ORN | 300 | Ignition 3 Voltage |
| E2 | BRN | 241 | Ignition 3 Voltage |
| E3 | - | - | Not Used |
| E4 | BRN | 641 | Ignition 3 Voltage |
| E5 | - | - | Not Used |
| E6 | BRN | 41 | Ignition 3 Voltage |
| E7 | DK BLU | 75 | RAP Relay Switch Supply Voltage |
| E8 | YEL | 743 | Accessory Voltage |
| E9-E10 | - | - | Not Used |
| F1-F2 | - | - | Not Used |
| F3 | PNK | 3 | Ignition 1 Voltage |
| F4 | PNK | 39 | Ignition 1 Voltage |
| F5 | - | - | Not Used |
| F6 | YEL | 1139 | Ignition 1 Voltage |
| F7 | - | - | Not Used |
| F8 | PNK | 539 | Ignition 1 Voltage |
| PNK | 539 | Ignition 1 Voltage | |
| F9 | - | - | Not Used |
| F10 | PNK | 739 | Ignition 1 Voltage |
| G1 | RED | 242 | Battery Positive Voltage |
| G2 | ORN | 2440 | Battery Positive Voltage |
| ORN | 2440 | Battery Positive Voltage | |
| G3 | - | - | Not Used |
| G4 | ORN | 240 | Battery Positive Voltage |
| G5 | - | - | Not Used |
| G6 | ORN | 1740 | Battery Positive Voltage |
| G7 | - | - | Not Used |
| G8 | ORN | 440 | Battery Positive Voltage |
| G9 | - | - | Not Used |
| G10 | ORN | 1140 | Battery Positive Voltage |
| H1-H2 | - | - | Not Used |
| H3 | RED | 742 | Battery Positive Voltage |
| H4 | ORN | 1240 | Battery Positive Voltage |
| H5 | - | - | Not Used |
| H6 | ORN | 1040 | Battery Positive Voltage |
| H7 | - | - | Not Used |
| H8 | ORN | 1640 | Battery Positive Voltage |
| H9 | WHT | 1390 | Off/Run/Crank Voltage |
| H10 | PNK | 1020 | Off/Run/Crank Voltage |
| J1-J4 | - | - | Not Used |
| J5 | BRN | 9 | Park Lamp Supply Voltage |
| J5 | PPL | 256 | Park Lamp Supply Voltage (Export) |
| J6 | PPL | 709 | Left Park Lamp Supply Voltage |
| J7 | - | - | Not Used |
| J8 | BRN/WHT | 309 | Right Park Lamp Supply Voltage |
| J9 | GRY | 8 | Instrument Panel Lamp Supply Voltage-1 |
| J10 | BRN | 1244 | Instrument Panel Lamp Supply Voltage-2 |
| K1 | ORN | 40 | Battery Positive Voltage |
| K2 | RED | 642 | Battery Positive Voltage |
| L1 | ORN | 340 | Battery Positive Voltage |
| L2 | RED | 742 | Battery Positive Voltage |
| M1 | YEL | 143 | Accessory Voltage |
| M2 | DK BLU | 75 | RAP Relay Switch Supply Voltage |
| N1 | RED | 742 | Battery Positive Voltage |
| N2 | ORN | 1440 | Battery Positive Voltage |
| P1 | ORN | 2340 | Battery Positive Voltage |
| P2 | - | - | Not Used |
| P3 | RED | 642 | Battery Positive Voltage |
