Power and Grounding Component Views

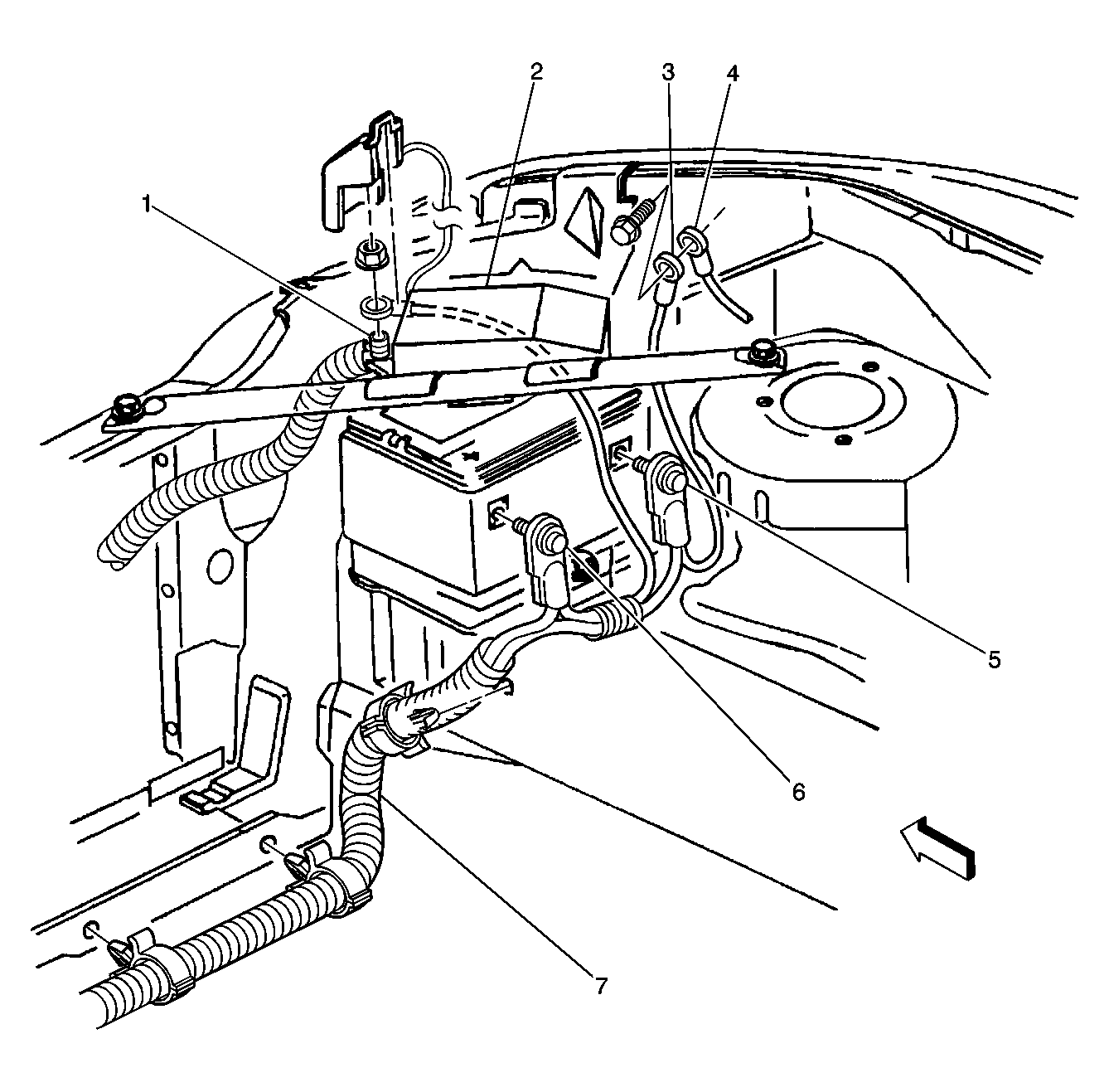

Fig 1: Front, Right Side of Engine Compartment
GM447114Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Remote Battery Stud
2 Fuse Block-Underhood
3 Ground G100 (Battery Cable)
4 Ground G102 (Forward Lamp Harness)
5 Negative Battery Cable
6 Positive Battery Cable
7 Battery Harness

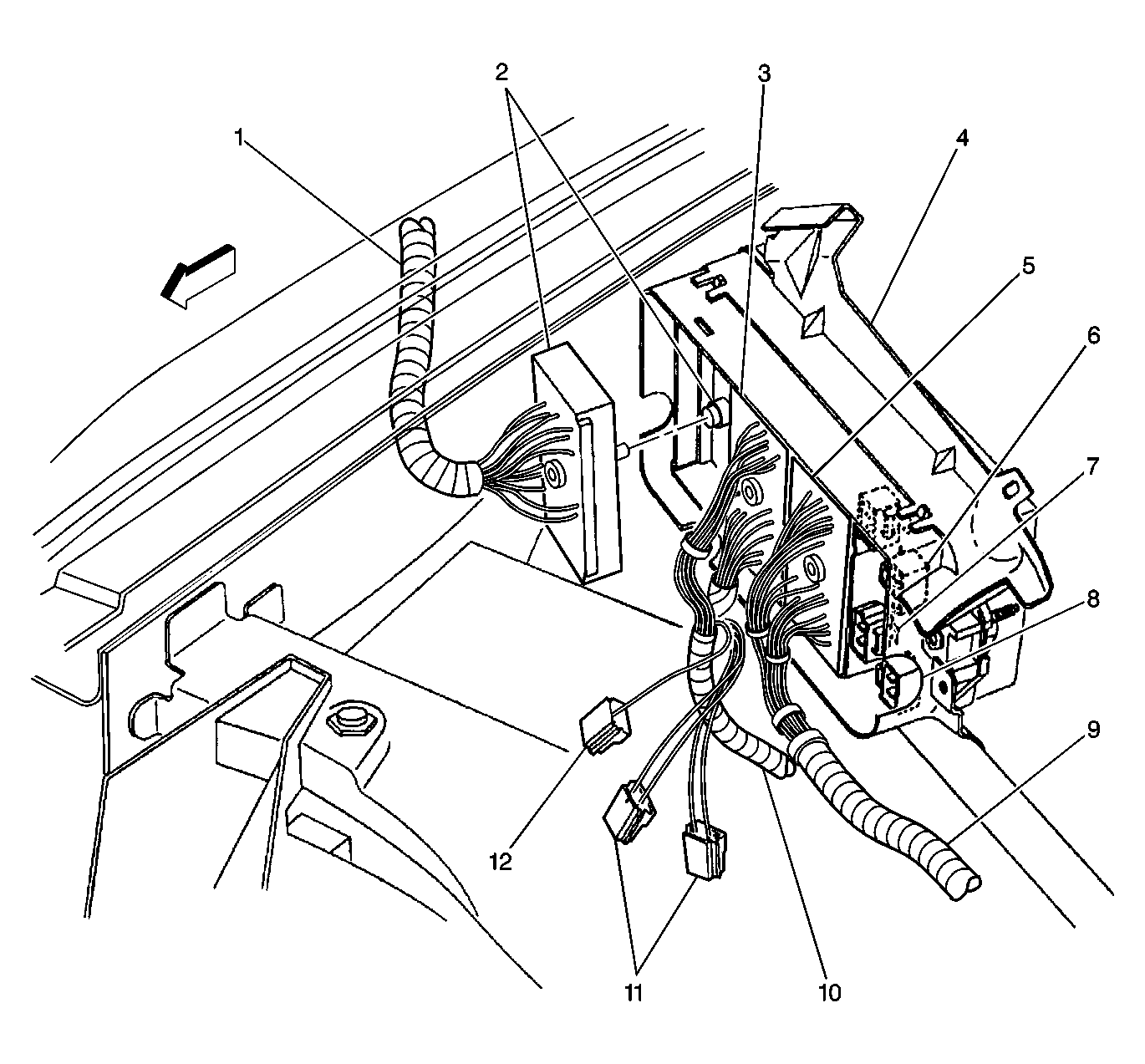

Fig 2: Fuse Block-Underhood, Top Right Side of Engine Compartment
GM541632Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Forward Lamp Harness
2 Fuse Block-Underhood Connector C3 (Forward Lamp Harness)
3 Fuse Block-Underhood Connector C2 (I/P Harness)
4 Fuse Block-Underhood
5 Fuse Block-Underhood Connector C1 (Engine Harness)
6 Fuse Block-Underhood Connector C6 (Green)
7 Fuse Block-Underhood Connector C5 (Black)
8 Fuse Block-Underhood Connector C4 (Gray)
9 Engine Harness
10 I/P Harness
11 Fuse Block-Underhood Connectors C4 and C6 (I/P Harness)
12 Fuse Block-Underhood Connector C5 (I/P Harness)

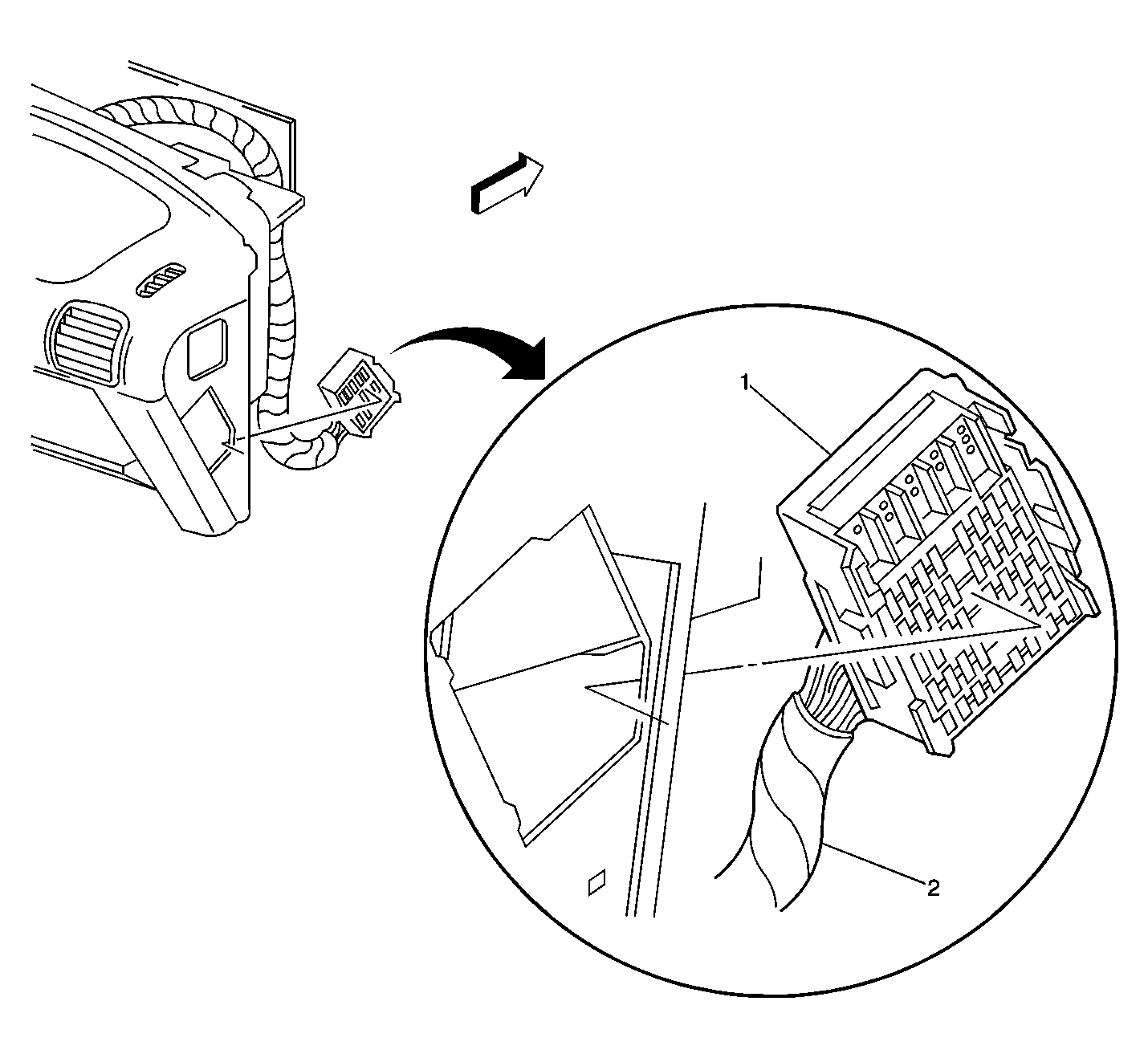

Fig 3: Right Side of I/P
GM447395Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuse Block
2 I/P Harness

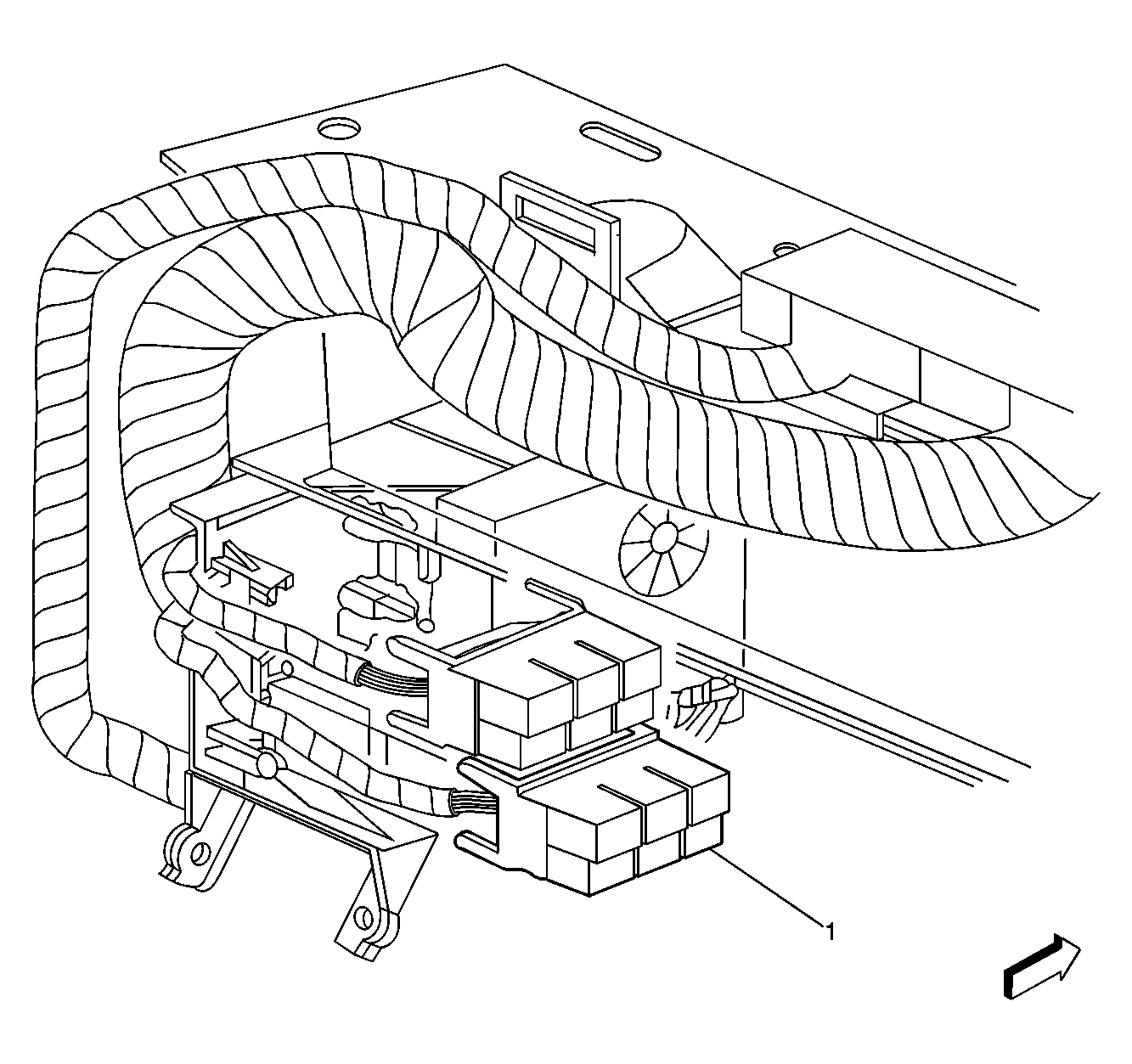

Fig 4: Left, Side of I/P (Export Shown)
GM624579Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Relay Block

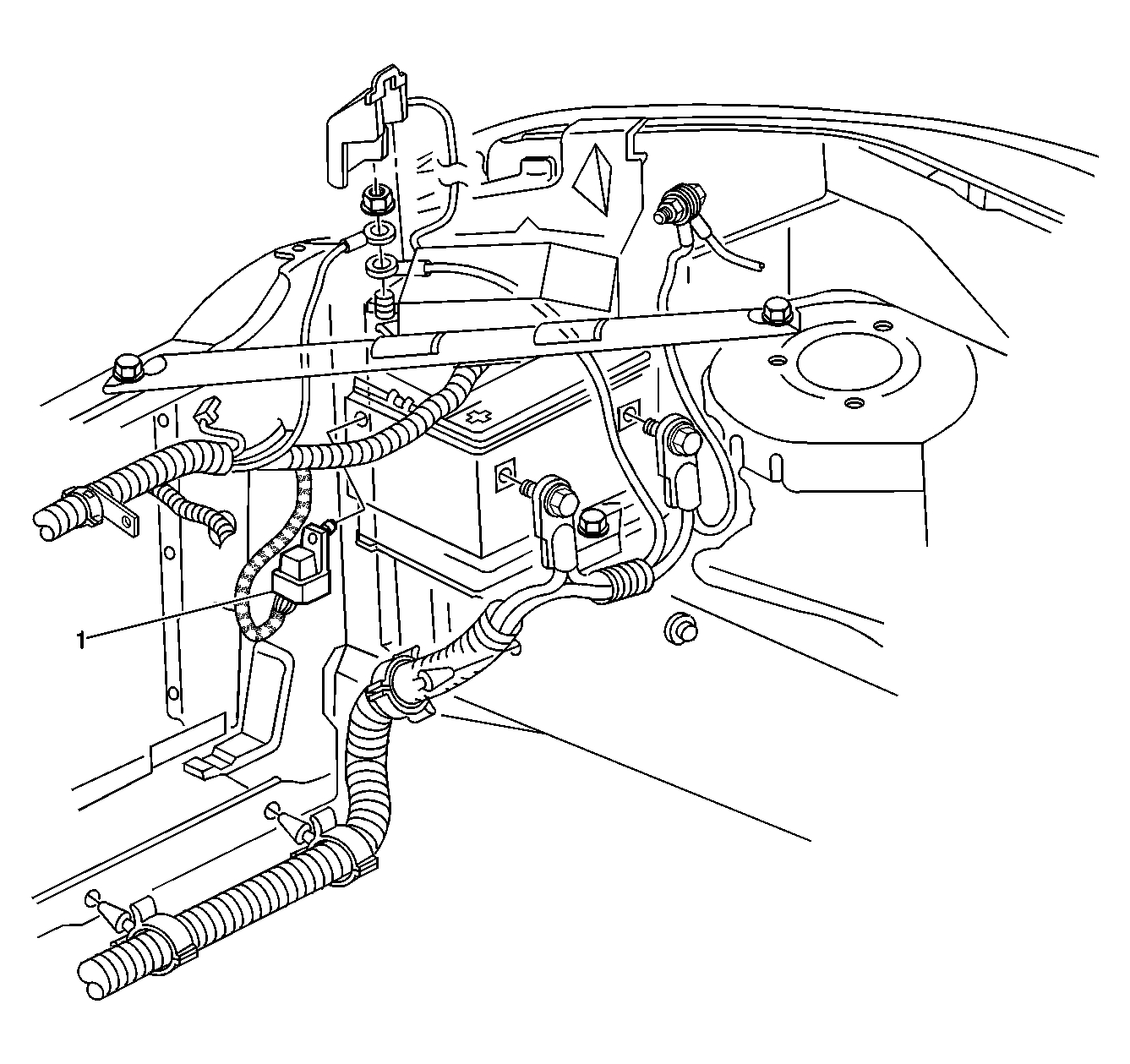

Fig 5: Right Side of Radiator Support
GM620974Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Starter Relay

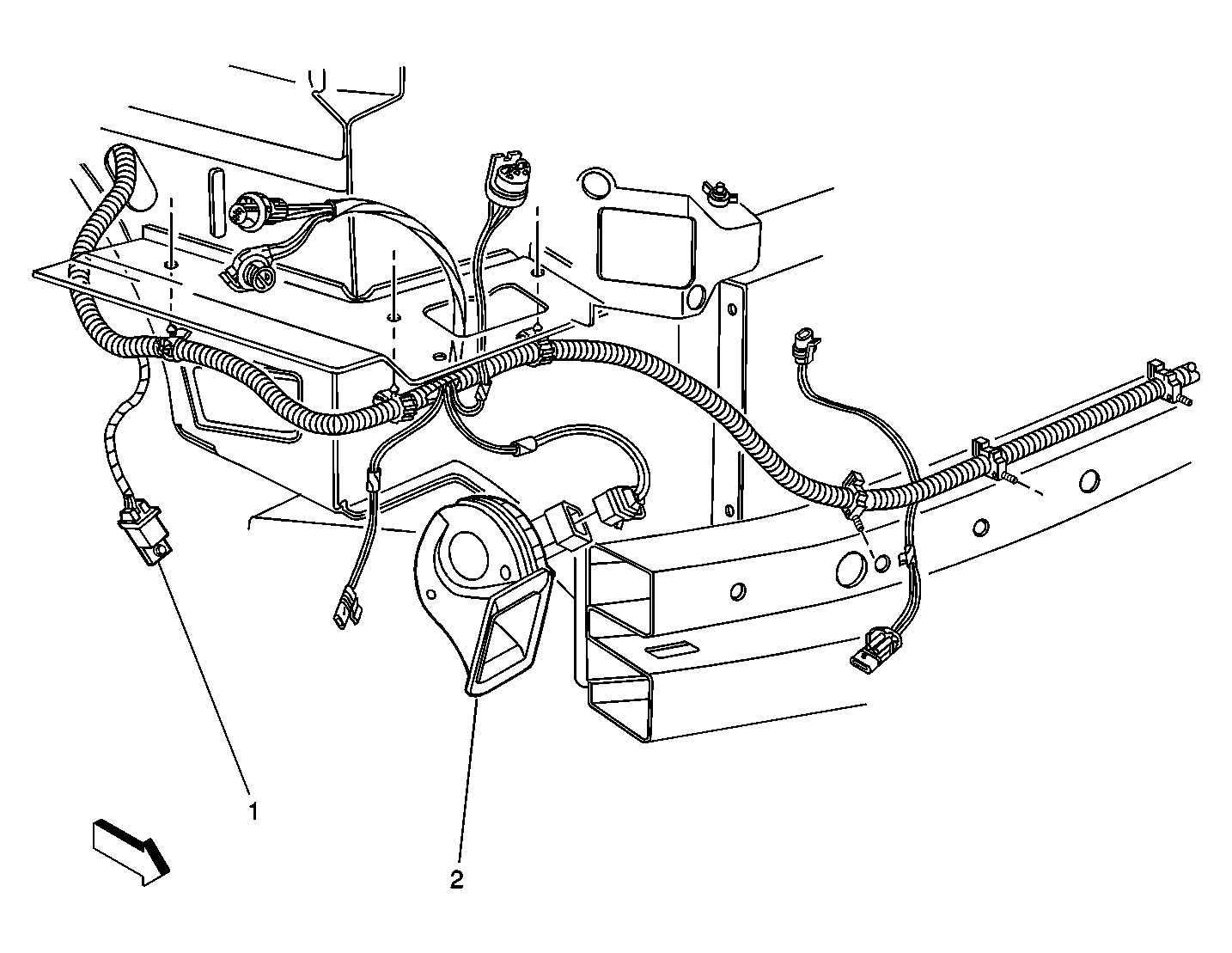

Fig 6: Lower Right Side of Engine Compartment
GM620971Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 AIR Pump Relay
2 Horn-Right

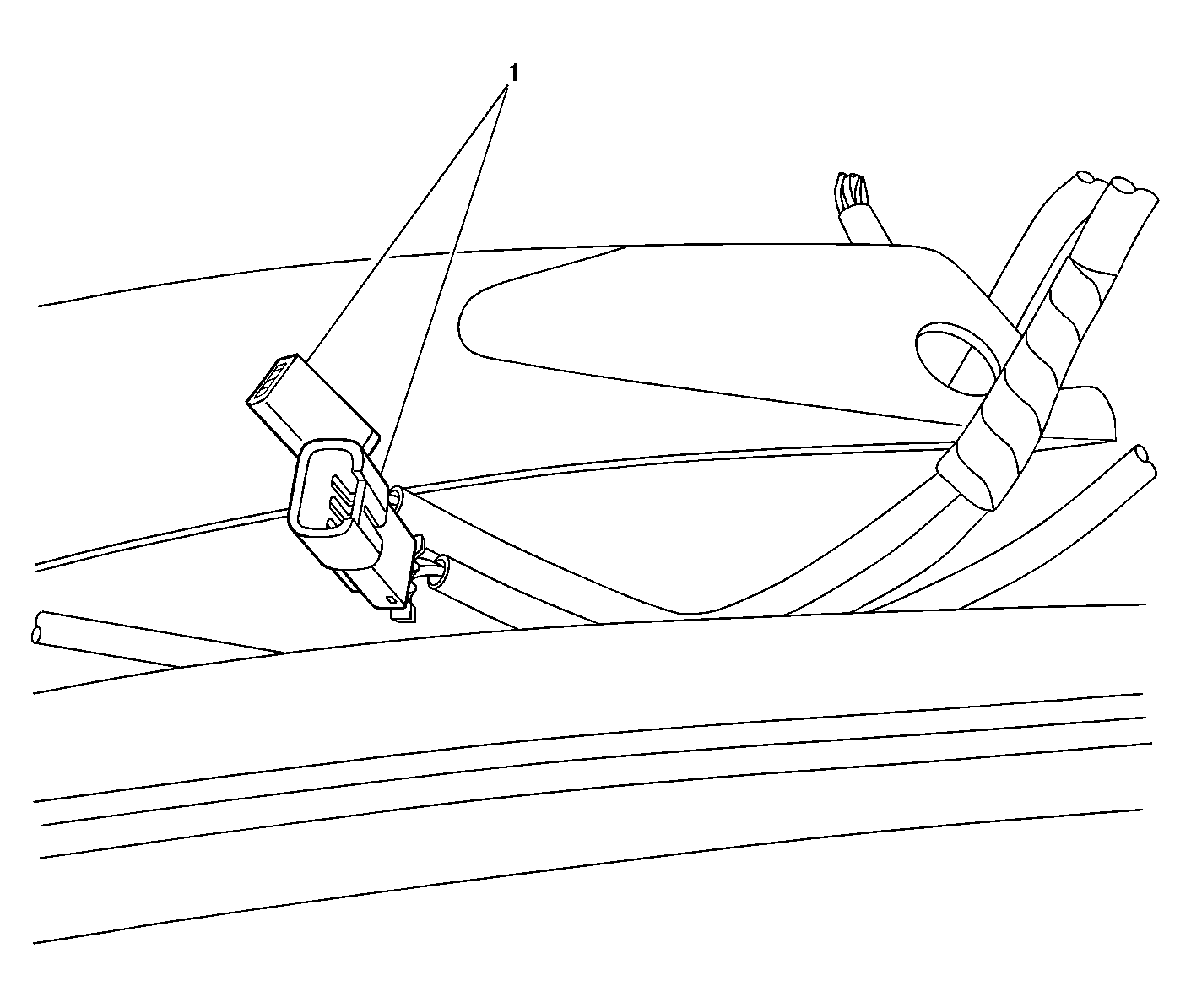

Fig 7: RH Side of Vehicle Lower Rear of Sliding Door
GM1388297Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C388

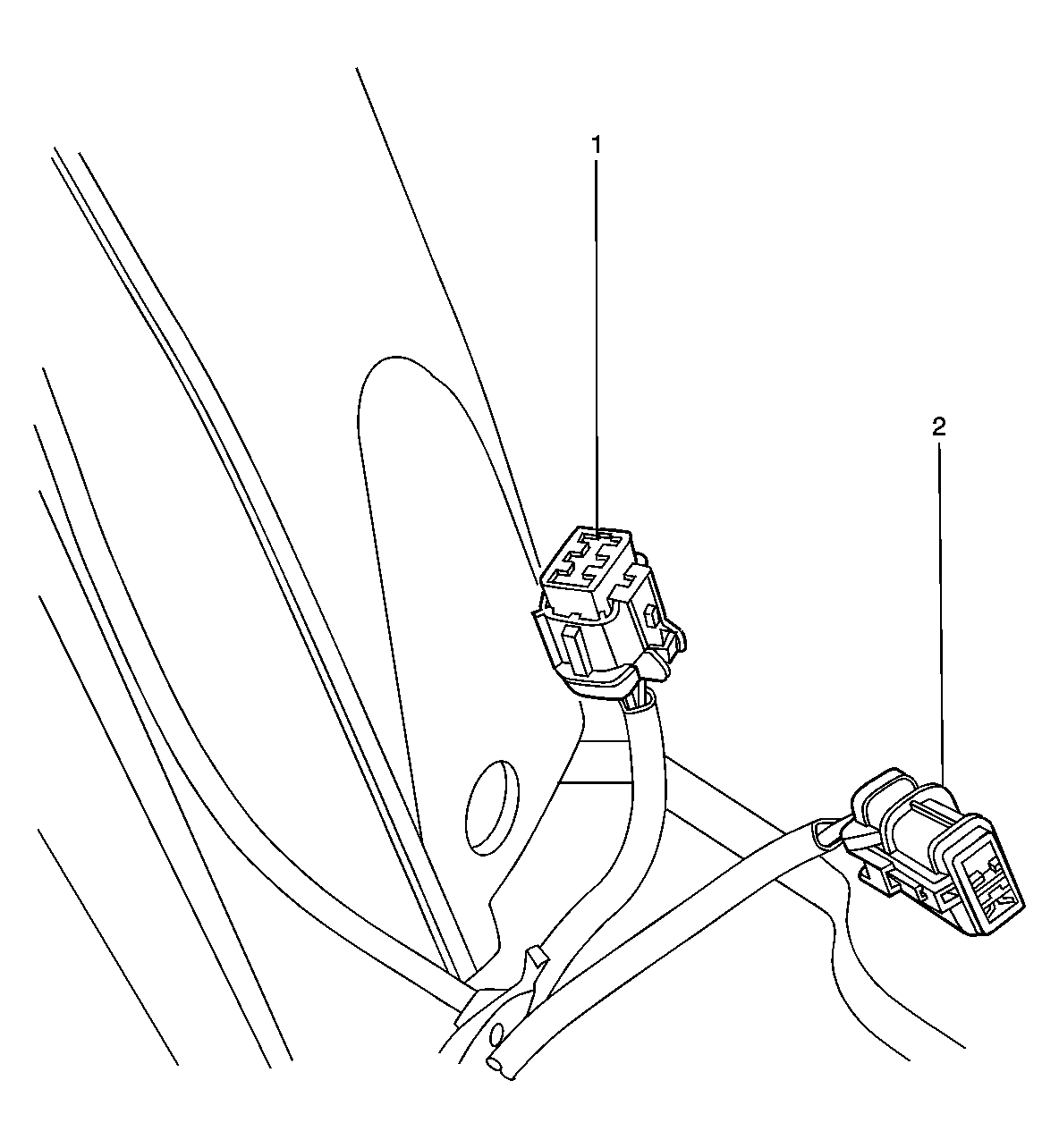

Fig 8: RH Side of Vehicle Rear of Sliding Door
GM1388302Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C331
2 C332

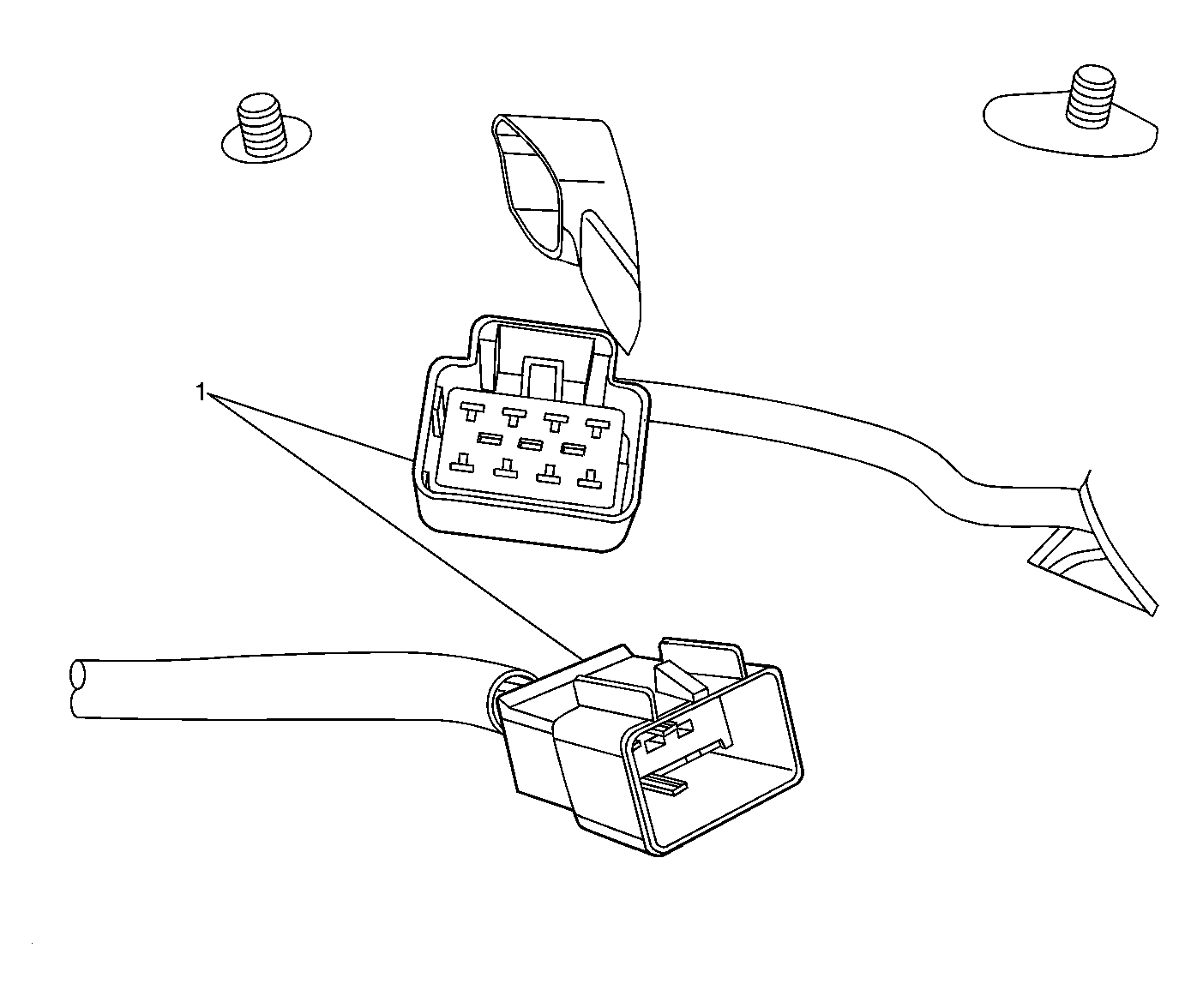

Fig 9: Underside of Passenger Seat
GM1388304Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 C313 w/ Sit-N-Lift Seat

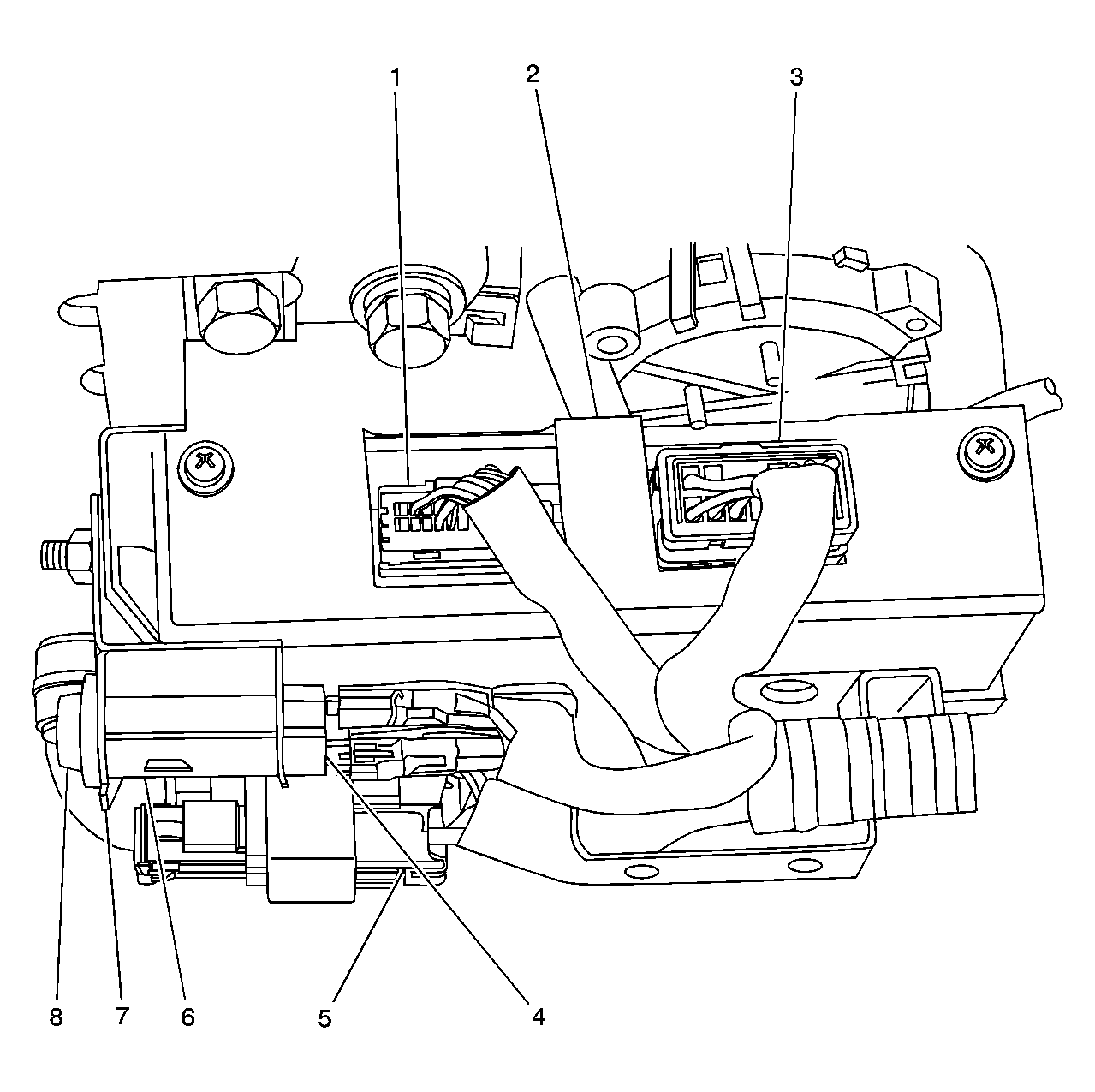

Fig 10: Underside of Sit-N-Lift Seat/Sit-N-Lift Seat Module
GM1388306Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Sit-N-Lift Seat Module C2
2 Sit-N-Lift Seat Module
3 Sit-N-Lift Seat Module C1
4 8A Circuit Breaker
5 25A Sit-N-Lift Seat Circuit Breaker
6 Sit-N-Lift Seat/Ignition Relay
7 Sit-N-Lift Seat/Door Jamb Switch Relay
8 Sit-N-Lift Seat/Brake Transmission Shift Interlock Relay
9 Sit-N-Lift Seat Remote Connector

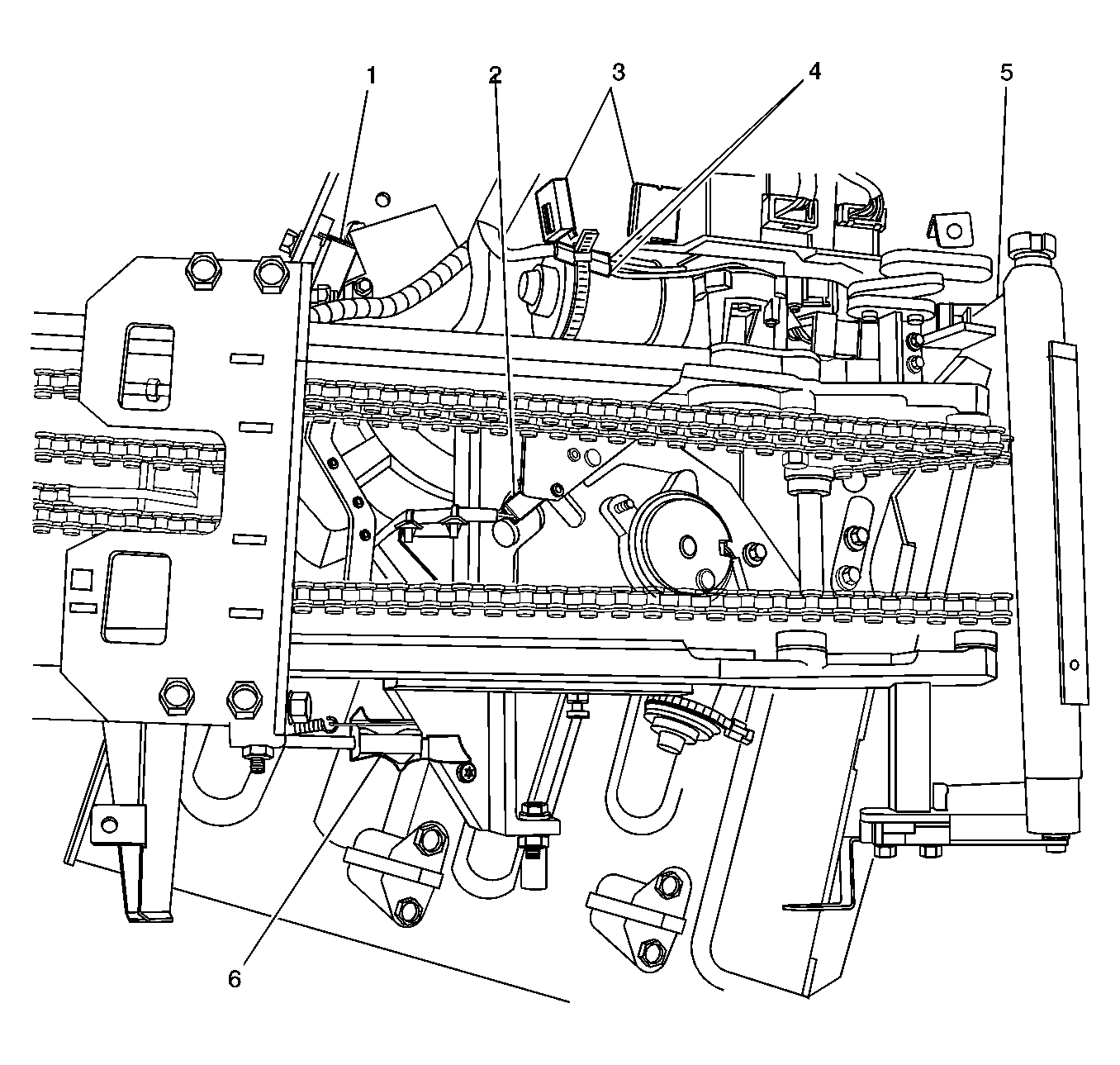

Fig 11: Underside of Sit-N-Lift Seat
GM1388308Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Swivel Inside Limit Switch
2 Swivel Outside Limit Switch
3 Splice Pack 1 and 2
4 Sit-N-Lift Seat Lift Motor
5 Lift Upper Limit Switch
6 Lift Lower Limit Switch
