Removal Procedure

WARNING: This page is about a different car, the 2003 Pontiac Montana, 2003 Oldsmobile Silhouette, and 2003 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable. Refer to BATTERY NEGATIVE CABLE DISCONNECT/CONNECT PROCEDURE in Battery.
  2. Remove the instrument panel insulator. Refer to CLOSEOUT/INSULATOR PANEL REPLACEMENT - LEFT in Instrument Panel, Gages and Console.
    Fig 1: Disconnecting Connector
    G01534048Courtesy of GENERAL MOTORS CORP.
  3. Slide the daytime running lamp module from the bracket.
  4. Disconnect the electrical connectors.

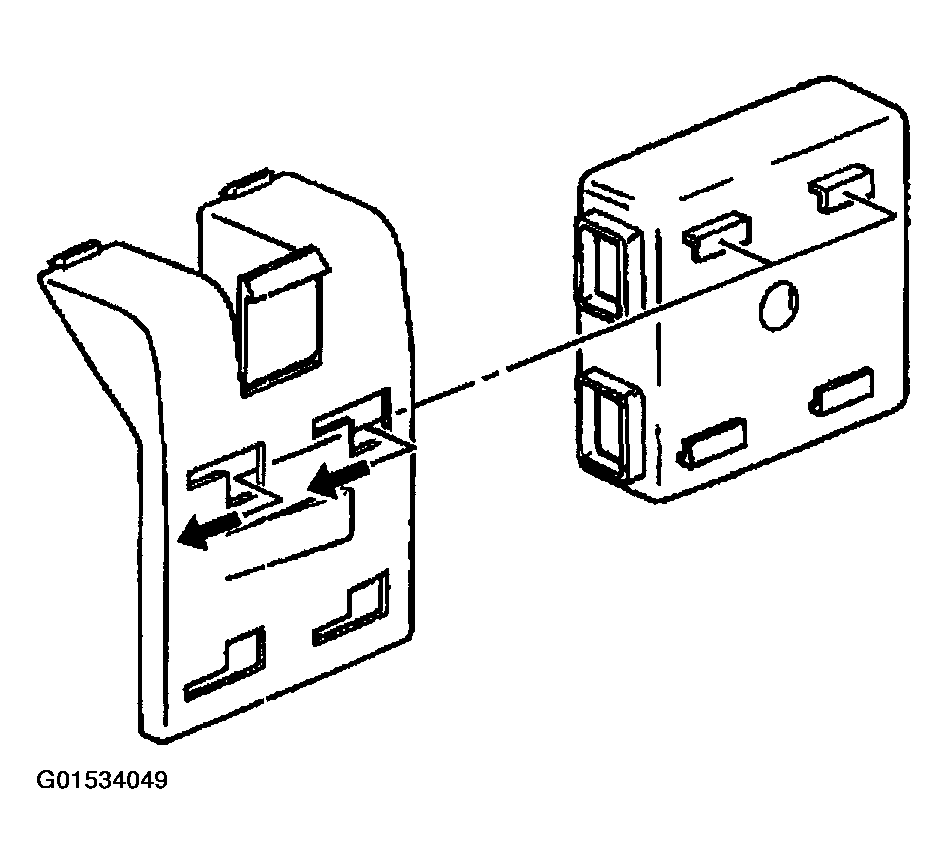

    Fig 2: Disconnecting Electrical Connector
    G01534049Courtesy of GENERAL MOTORS CORP.
