Test Description

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

The numbers below refer to the step numbers on the diagnostic table.

2. A partial malfunction in the class 2 serial data circuit uses a different procedure from a total malfunction of the class 2 serial data circuit.
3. DTCs U1300, U1301, or U1305 may be retrieved with a history status. These DTCs are not the cause of the present condition.
6. A state of health DTC with a history status may be present along with a U1000 having a current status. This indicates the malfunction occurred when the ignition was on.
7. Data link connector terminals 2 and 5 provide the connection to the class 2 serial data circuit and the signal ground circuit respectively.
9. poor connection at the DLC terminal would cause this condition but will not set a DTC.
10. An open in the class 2 serial data circuit between the DLC and the star connector will prevent the scan tool from communicating with any module. This condition will not set a DTC.
11. The class 2 serial data circuit is shorted to voltage or ground. The condition may be due to the wiring or due to a malfunction in one of the modules. When testing the wiring for a short, make sure there is not a module connected to the wire being tested. This test isolates the PCM class 2 serial data circuit.
13. his test isolates the SDM class 2 serial data circuit.
15. This test isolates the EBCM class 2 serial data circuit.
17. This test isolates the IPC class 2 serial data circuit.
19. This test isolates the PK3 class 2 serial data circuit.
21. This test isolates the DIC class 2 serial data circuit.
23. This test isolates the Radio class 2 serial data circuit.
33. If there are no current DTCs that begin with a "U", the communication malfunction has been repaired.
35. The communication malfunction may have prevented diagnosis of the customer complaint.

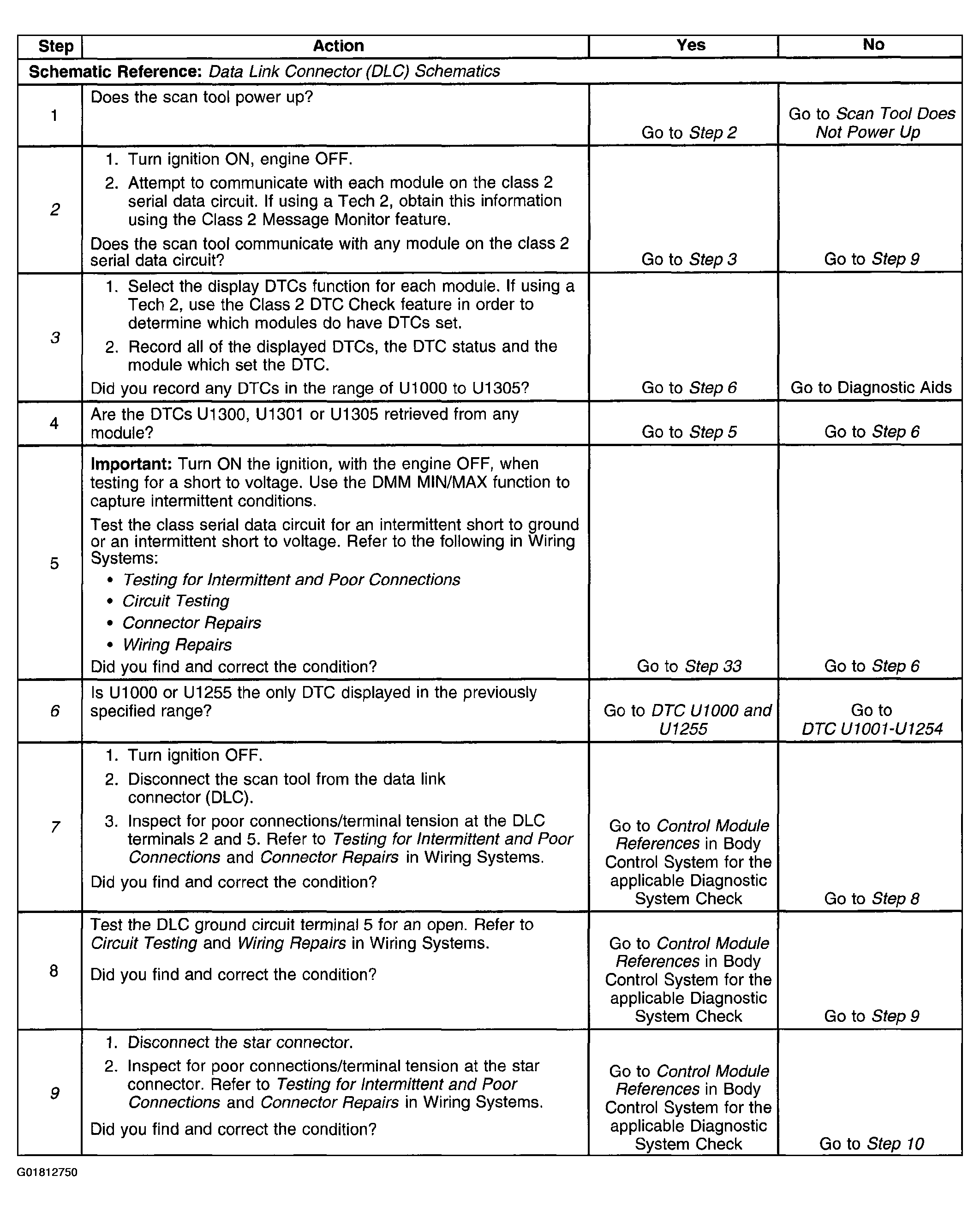

Fig 1: Scan Tool Does Not Communicate With Class 2 Device (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

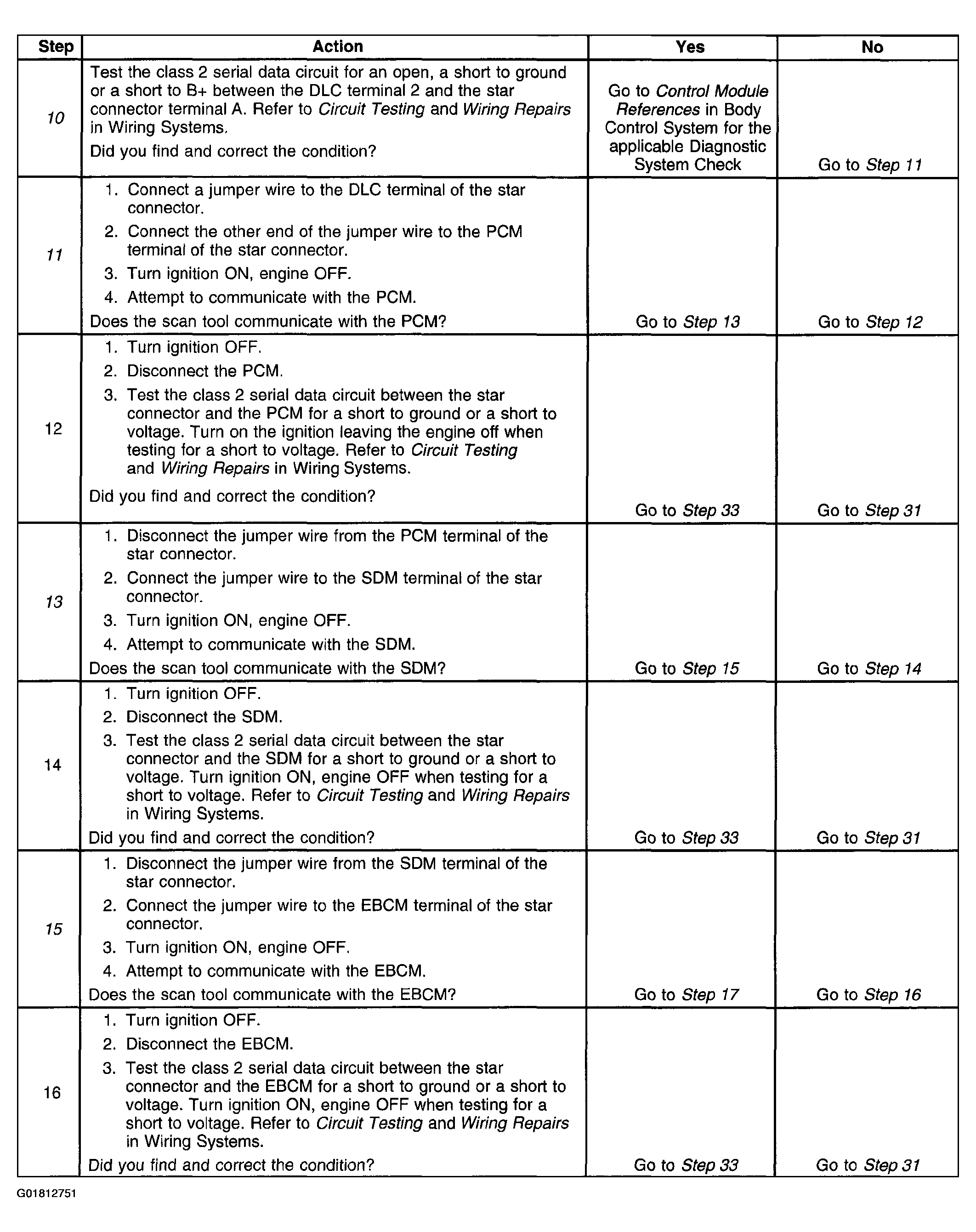

Fig 2: Scan Tool Does Not Communicate With Class 2 Device (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

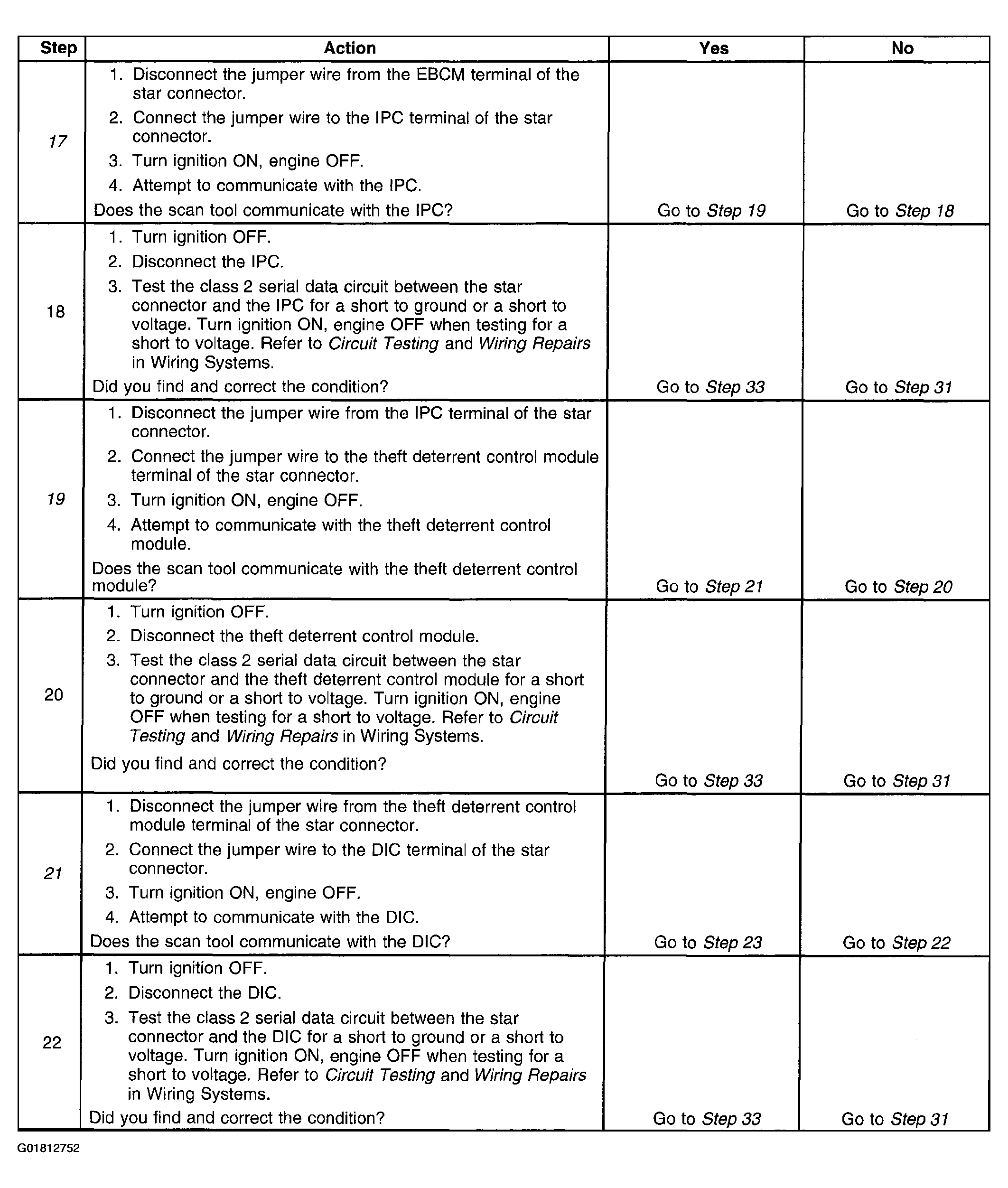

Fig 3: Scan Tool Does Not Communicate With Class 2 Device (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

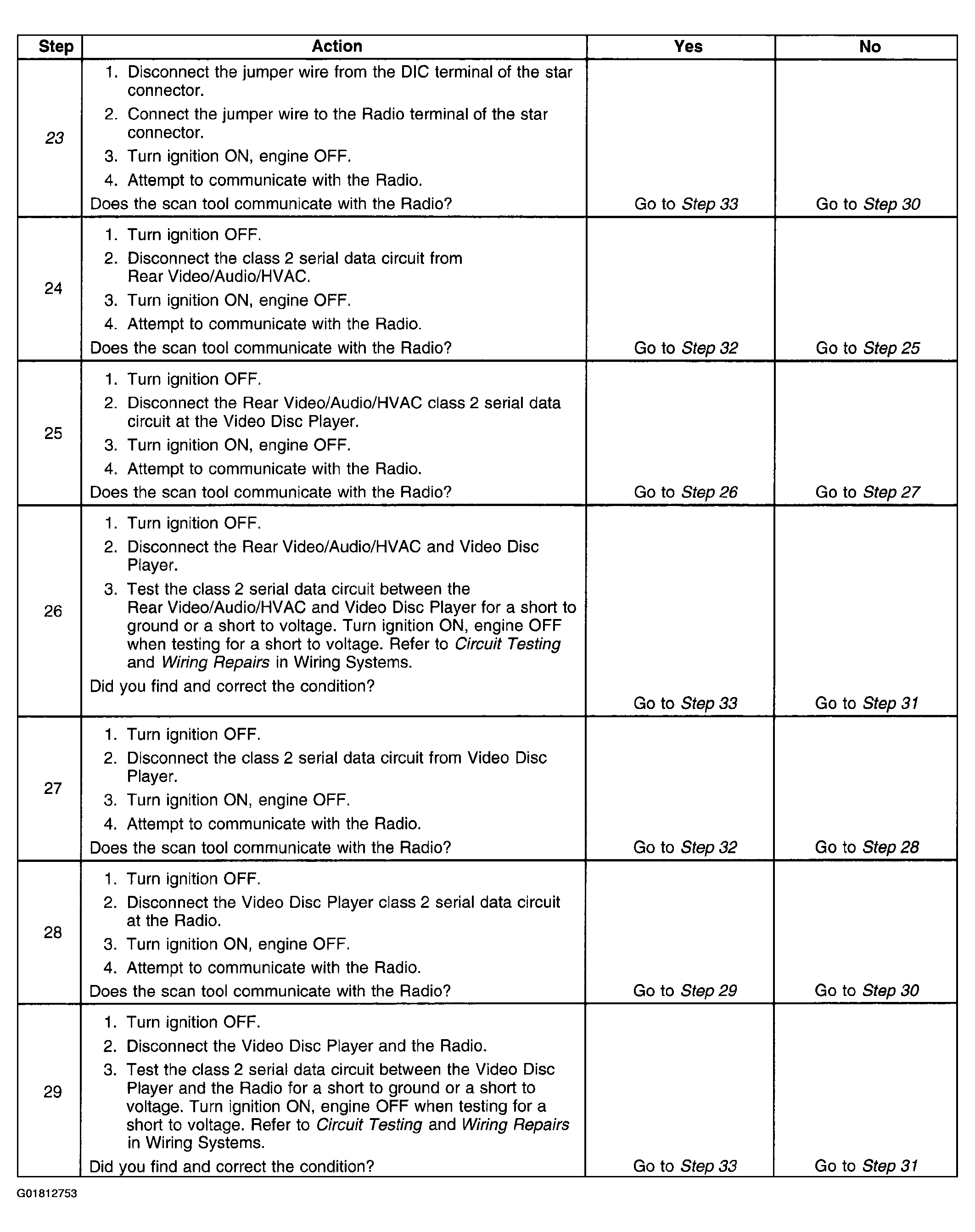

Fig 4: Scan Tool Does Not Communicate With Class 2 Device (4 Of 5)
Courtesy of GENERAL MOTORS CORP.

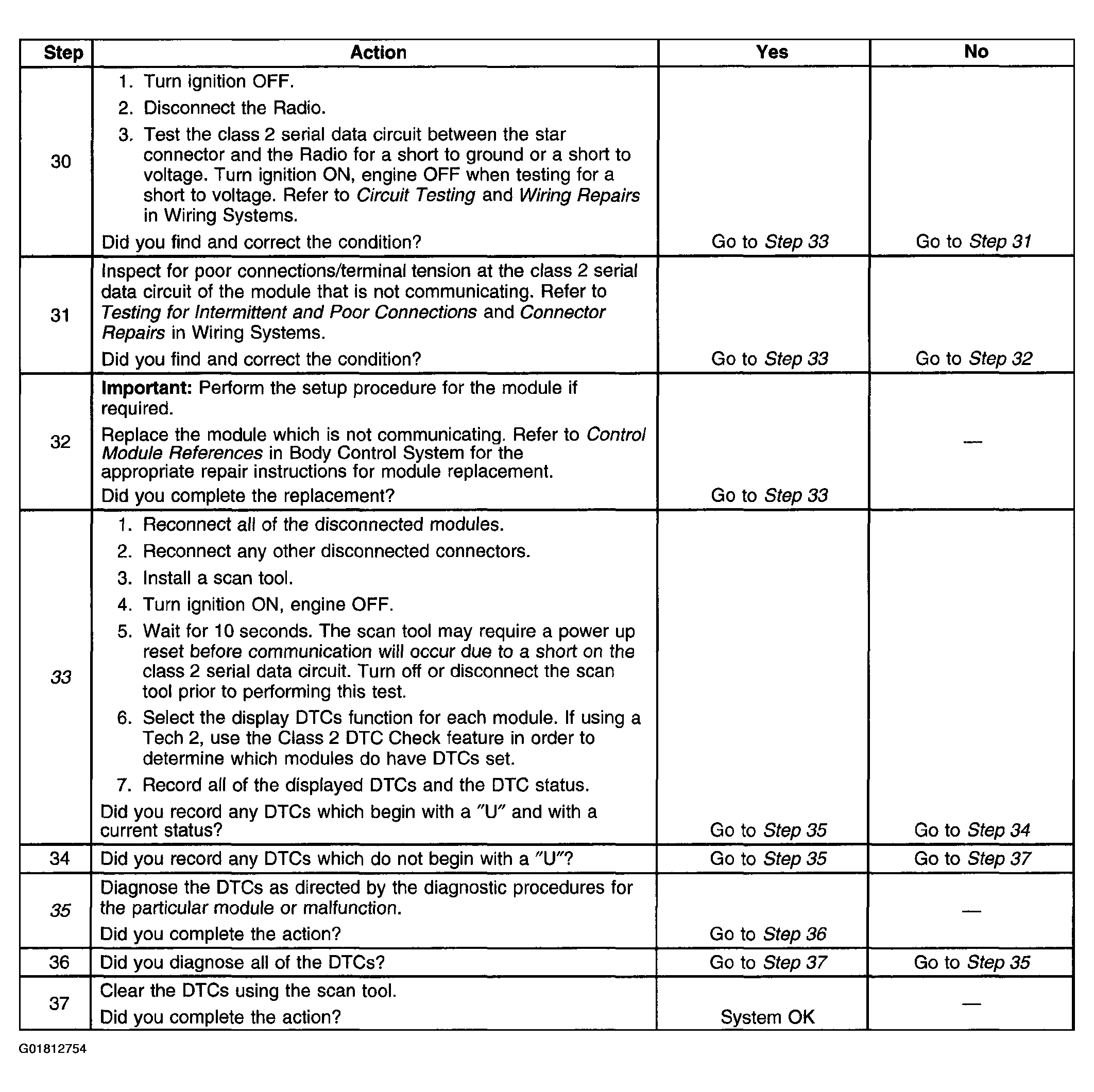

Fig 5: Scan Tool Does Not Communicate With Class 2 Device (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
