Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Montana, 2002 Oldsmobile Silhouette, and 2002 Chevrolet Venture. However, it is still accessible from the selected car via links, so may be relevant.

Place the data link connector into position.
NOTE: Refer to FASTENER NOTICE .

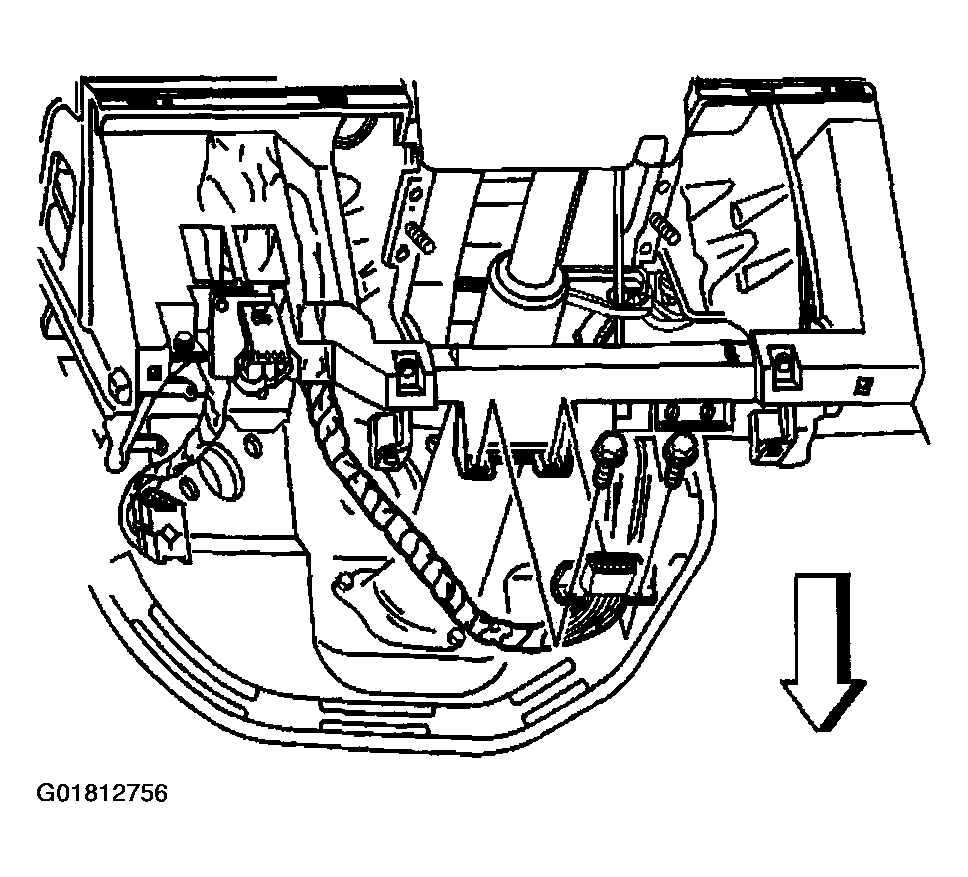

Fig 1: Installing Lower Data Link Connector
Courtesy of GENERAL MOTORS CORP.
Install the bolts/screws to the data link connector.

Tighten

Tighten the bolts/screws to 2 N.m (18 lb in).
