Wheel Alignment Specifications

SMU - Revised Wheel Alignment Specifications #04-03-07-001 - (Jan 6,2004)

Revised Wheel Alignment Specifications


2004 Chevrolet Venture


2004 Oldsmobile Silhouette


2004 Pontiac Montana


This bulletin is being issued to revise the rear camber adjustment specification in the Wheel Alignment sub-section of the Service Manual. Please replace the current information in the Service Manual with the following information.

The following information has been updated within SI. If you are using a paper version of this Service Manual, please make a reference to this bulletin on the affected page.

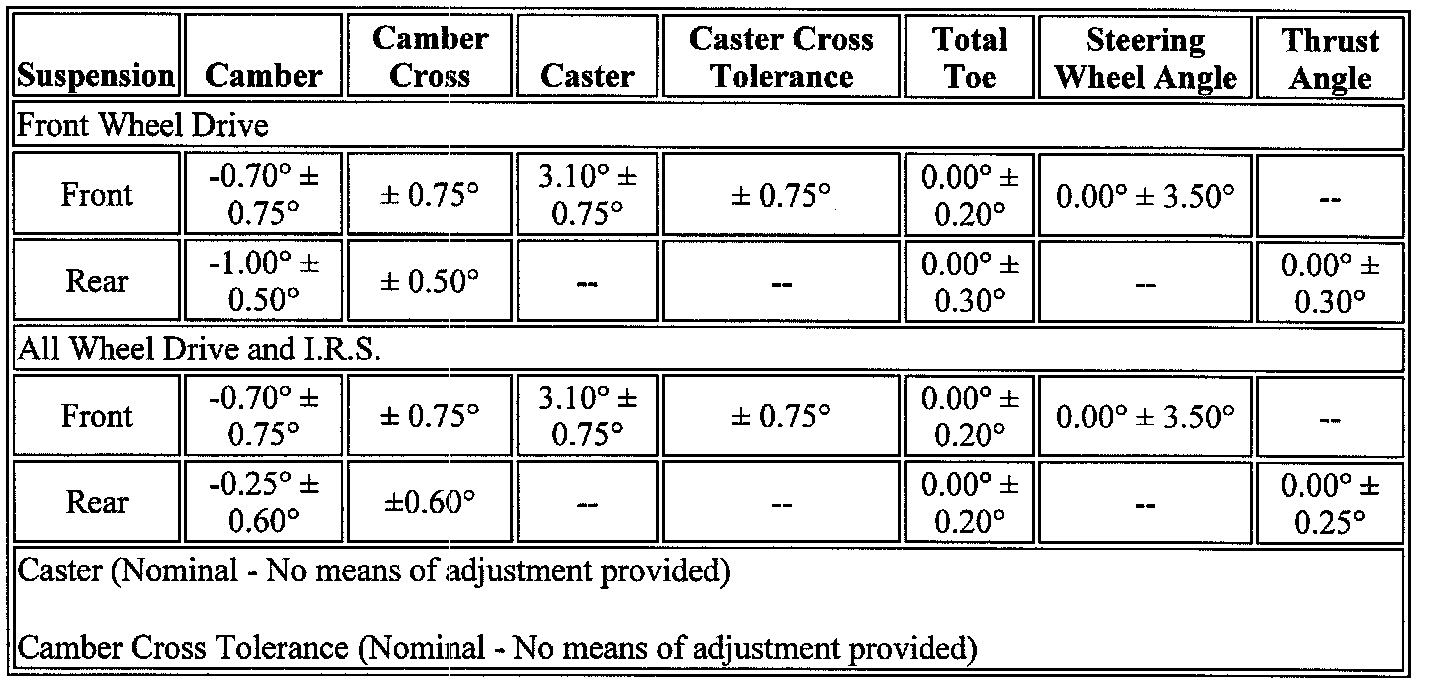

The new rear camber adjustment specification is -1.0+1- .50.
