Removal Procedure

CAUTION: Refer to Cracked Window Caution in Cautions and Notices.

IMPORTANT: Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and the interior trim.

When replacing or removing the left side stationary window. Refer to Trim Replacement - Third Pillar Left in Interior Trim or Trim Replacement - Fourth Pillar Left in Interior Trim.
When replacing or removing the right side stationary window. Refer to Trim Replacement - Third Pillar Right in Interior Trim or Trim Replacement - Fourth Pillar Right in Interior Trim.

CAUTION: Refer to Defroster Outlet Caution in Cautions and Notices.

Cover to protect the following parts from broken glass:
1. Upper dash pad
2. Defroster outlets and A/C outlets
3. Seats and carpeting

Fig 1: Using Utility Knife To Remove Reveal Molding

Courtesy of GENERAL MOTORS CORP.

CAUTION: Refer to Glass and Sheet Metal Handling Caution in Cautions and Notices.

Using a sharp utility knife, make a preliminary cut around the perimeter of the stationary window.

Fig 2: Separating Urethane Adhesive From Window

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Keep the cutting edge of the tool against the stationary window. Do this from inside the vehicle.

This will allow the urethane adhesive to be separated from the stationary window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
- Use J 24402-A , J 39032 or equivalent in order to remove the stationary window. See Special Tools .

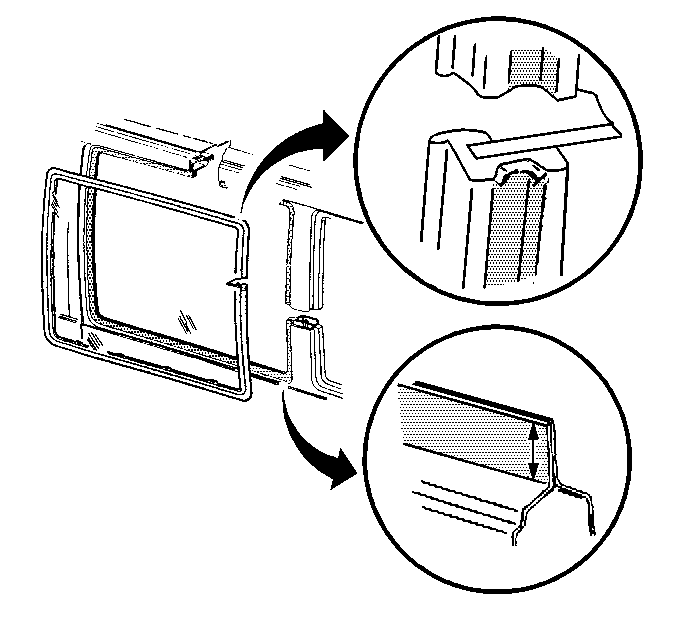

Fig 3: Expanded View Of Stationary Window Opening

Courtesy of GENERAL MOTORS CORP.

With the aid of an assistant, remove the stationary window from the opening.
