Removal Procedure

Fig 1: View Of Spark Plug Wire

Courtesy of GENERAL MOTORS CORP.

Disconnect the spark plug wire from the ignition coil.
- Twist the spark plug boot 1/2 turn.
- Pull only on the boot in order to remove the wire from the ignition coil.
Disconnect the ignition coil electrical connector.

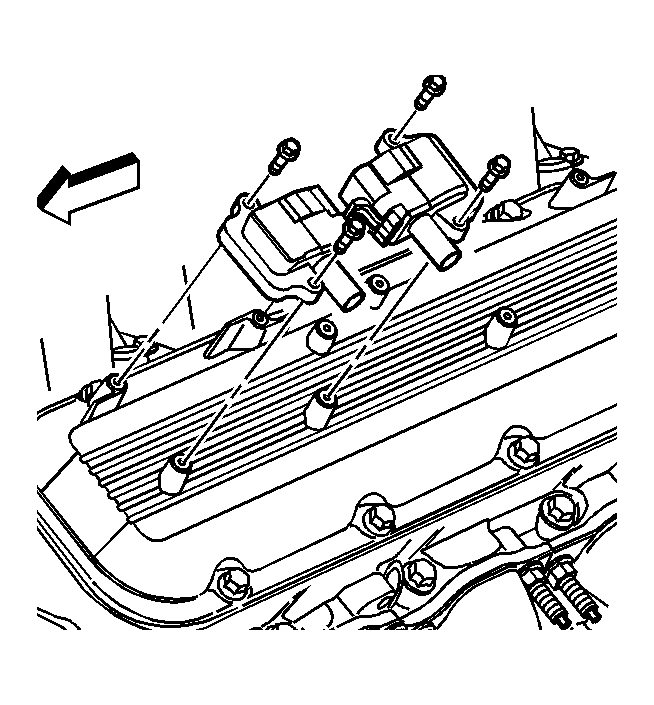

Fig 2: Locating Ignition Coils

Courtesy of GENERAL MOTORS CORP.

Remove the ignition coil bolts.
Remove the ignition coil.
