Computer/Integrating Systems Component Views

WARNING: This page is about a different car, the 2005 GMC Sierra and 2005 Chevrolet Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Component Views - Body Control Module (BCM)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Fuse Block - Left I/P
2	Instrument Panel
3	Body Control Module (BCM)
4	Body Harness to Body Control Module (BCM)

Fig 2: Component Views - Lower Left Of The I/P

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness Connector
2	Body Control Module (BCM) Connectors
3	Splice Pack SP205
4	Fuse Block - Left I/P
5	Data Link Connector (DLC)
6	I/P Courtesy Lamp - Left
7	I/P Courtesy Lamp Connector - Left
8	Instrument Panel
9	Left Windshield Pillar

Fig 3: Component Views - Splice Pack, SP205

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	I/P Harness Connector
2	I/P Harness
3	Splice Pack - SP205
4	I/P Courtesy Lamp - Left
5	Fuse Block - Left I/P

Fig 4: Component Views - Splice Pack, SP207

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Splice Pack SP207
2	Relay Block - I/P
3	I/P Extension Harness

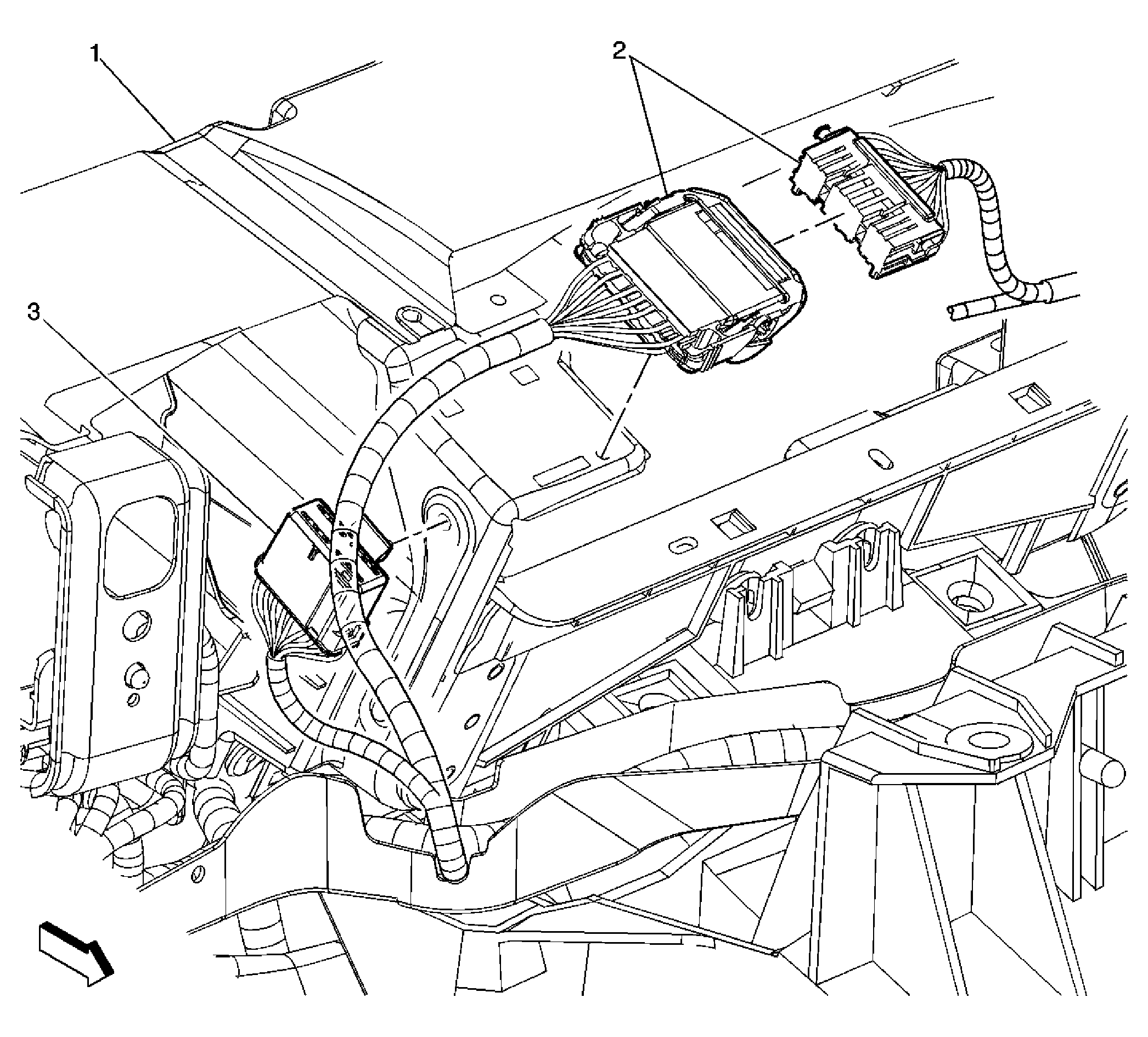

Fig 5: Splice Pack SP250 (RPO Code UQ7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Instrument Panel
2	C220
3	SP250
