Electrical Diagrams

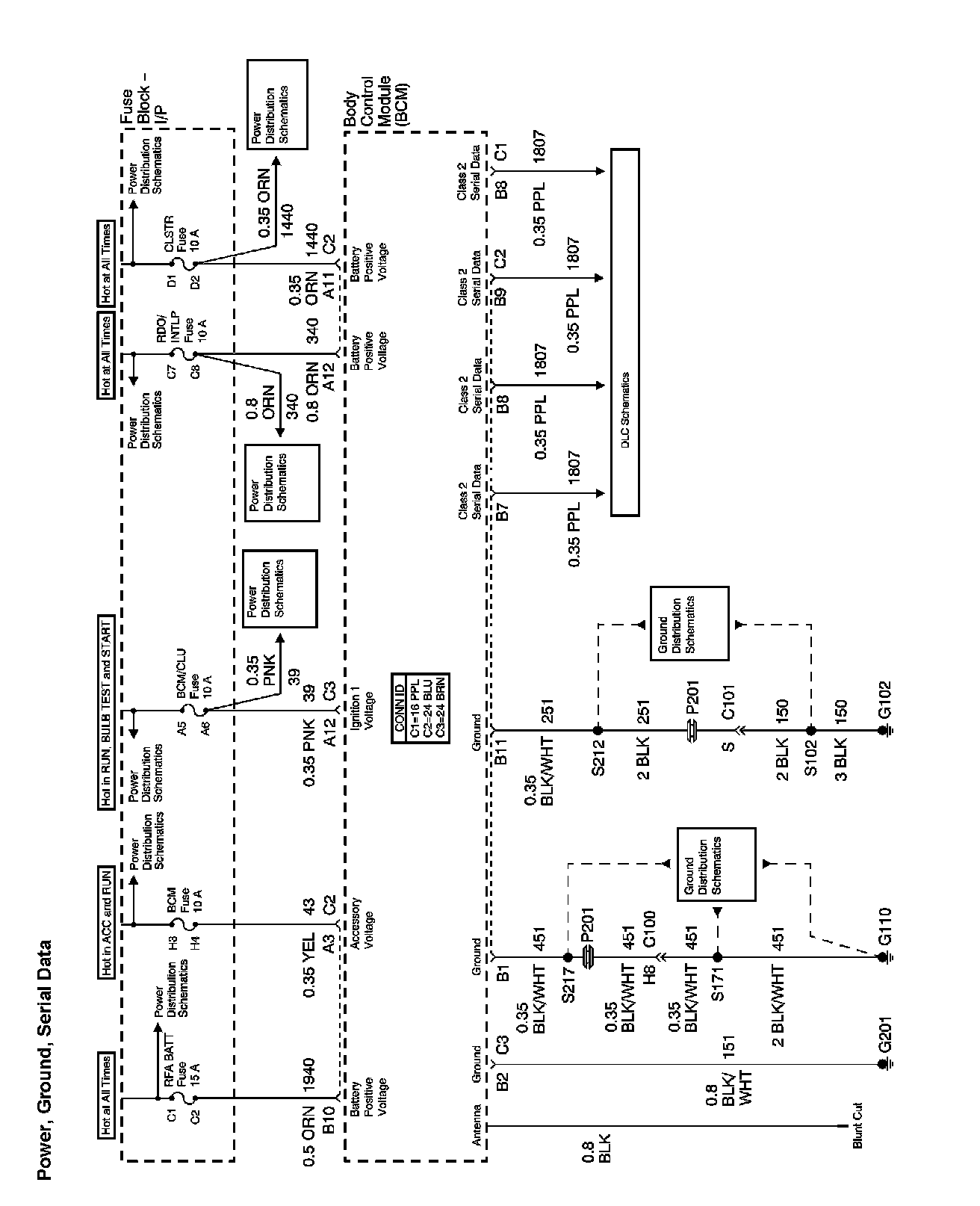

Body Control System Diagram 1:

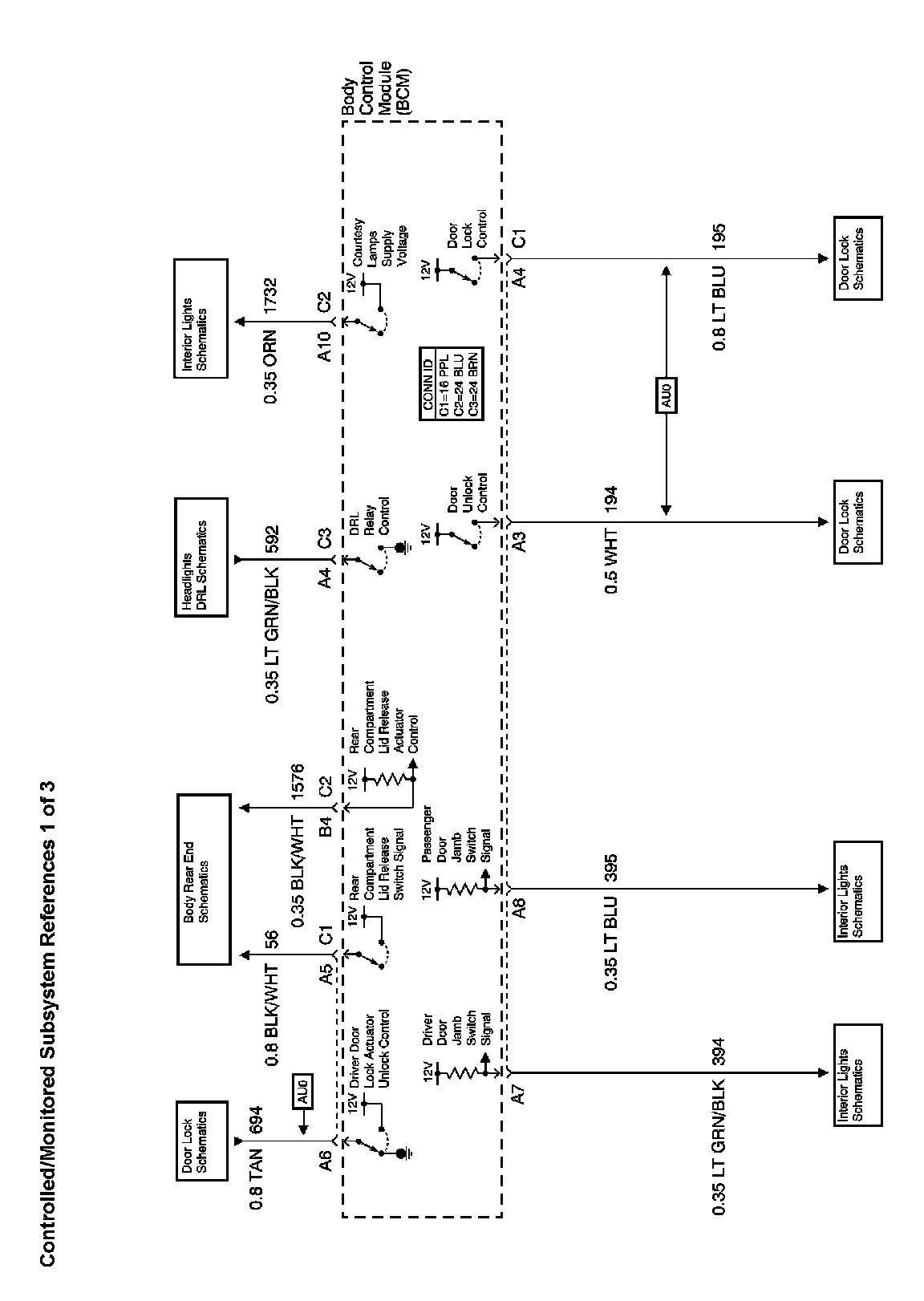

Body Control System Diagram 2 (1 Of 3):

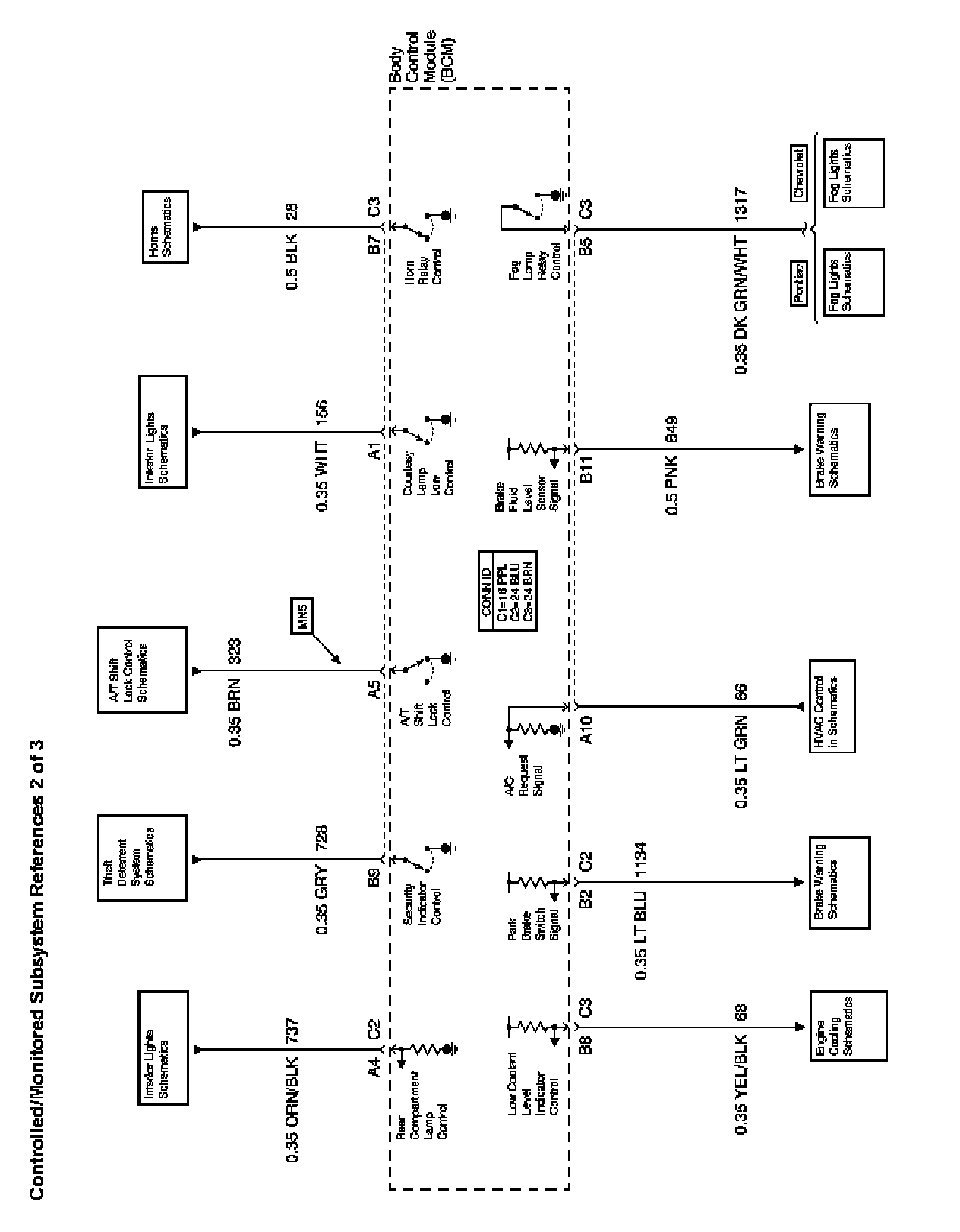

Body Control System Diagram 2 (2 Of 3):

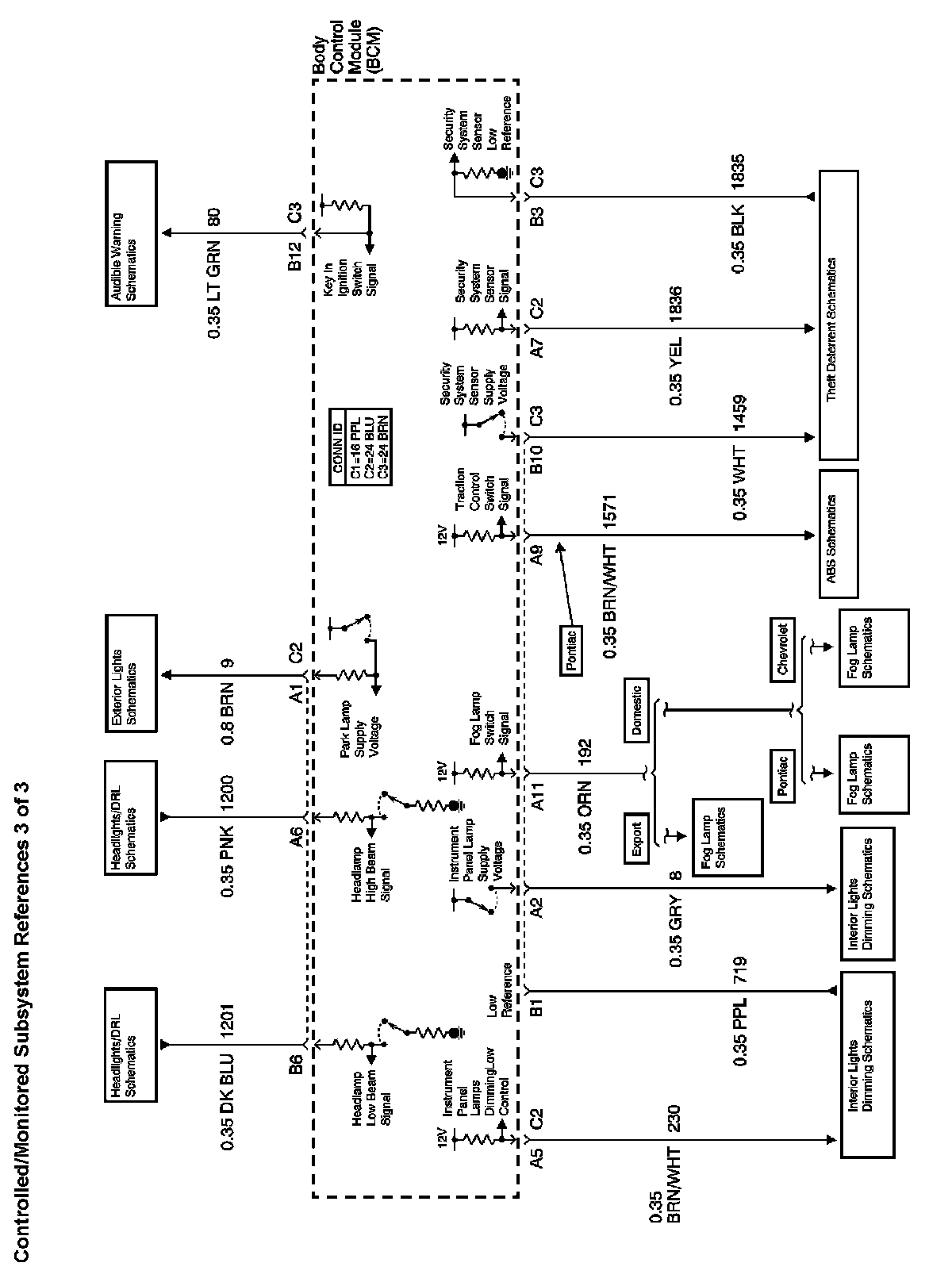

Body Control System Diagram 3 (3 Of 3):






Locations: The locations for the Connectors, Grounds, Splices, and Grommets shown within these diagrams can be found via their numbers at Vehicle Locations. Locations
