Normal Scan Tool Data Values

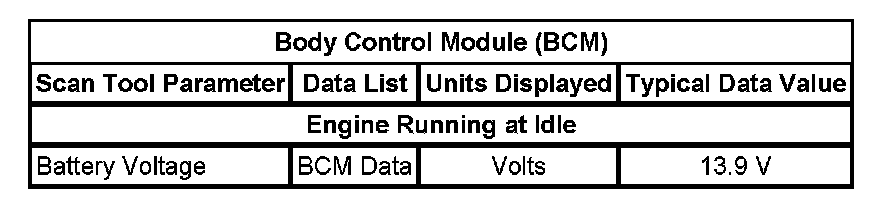

Body Control Module (BCM):

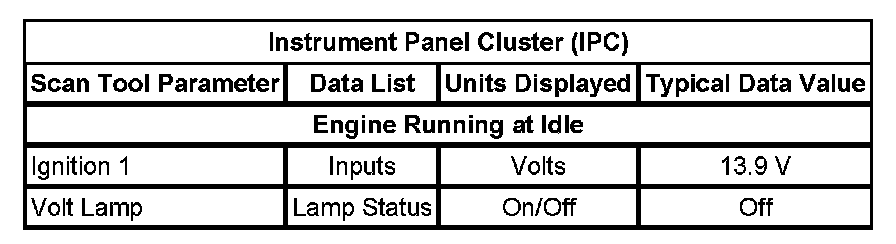

Instrument Panel Cluster (IPC):

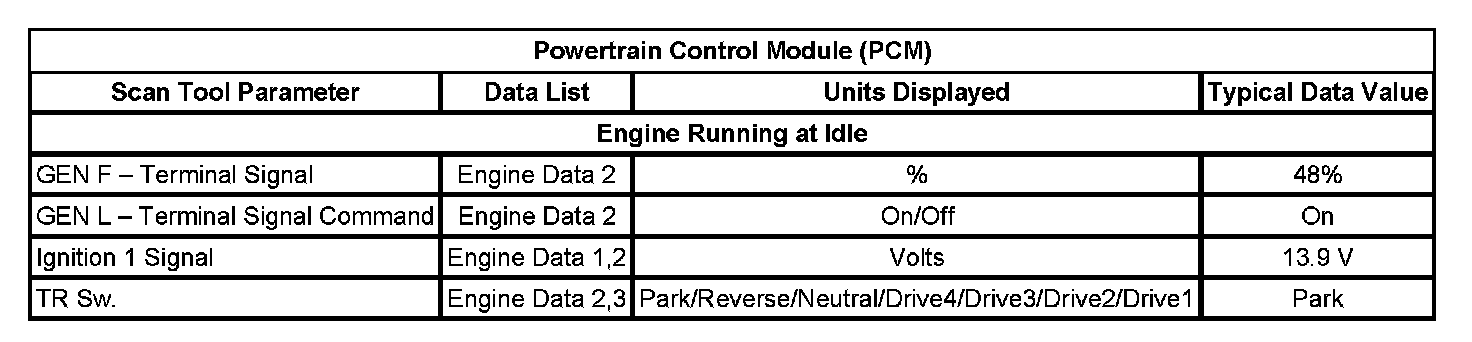

Powertrain Control Module (PCM):
