Engine Controls Schematics

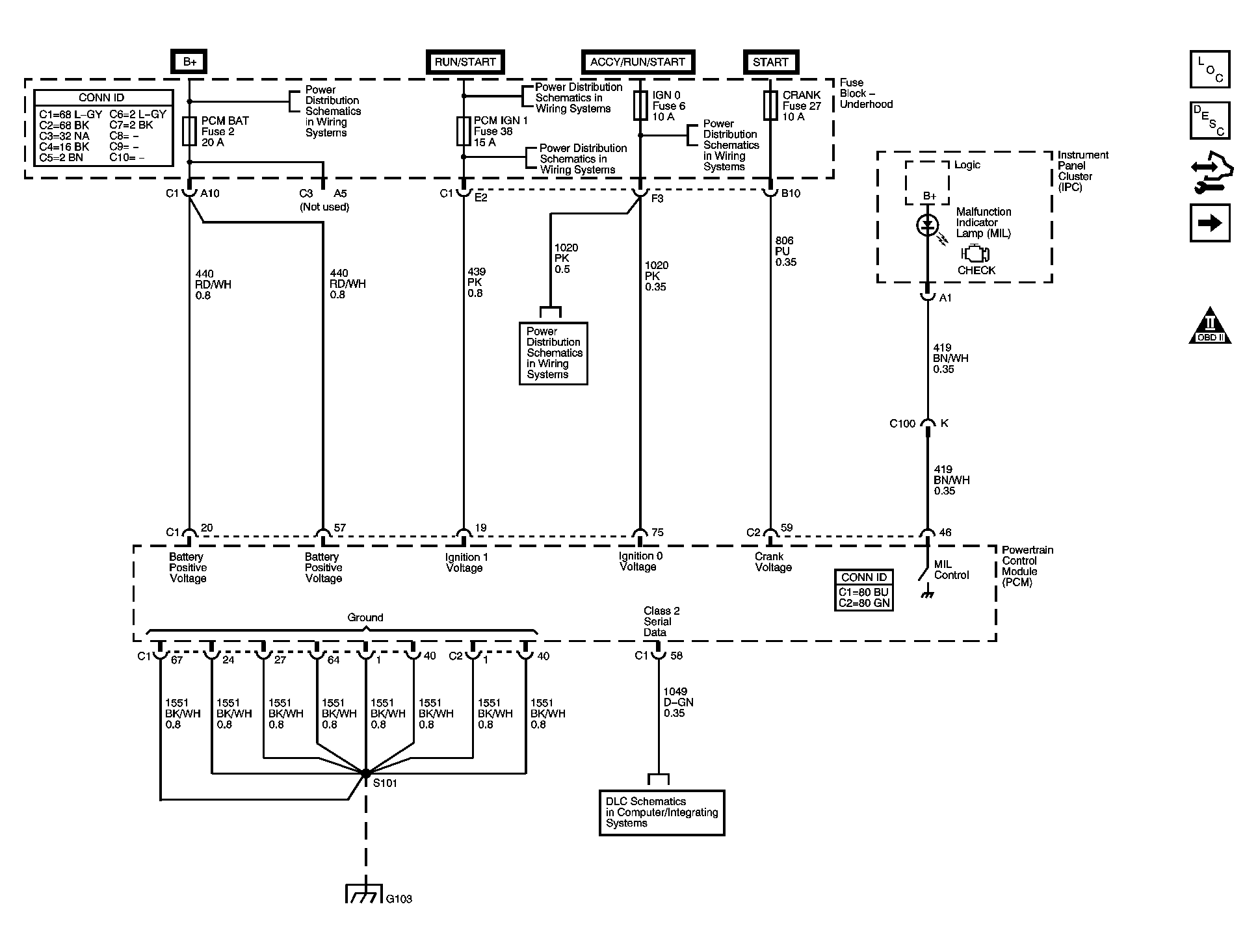

Fig 1: Module Power, Ground, Serial Data and MIL Schematics

Courtesy of GENERAL MOTORS CORP.

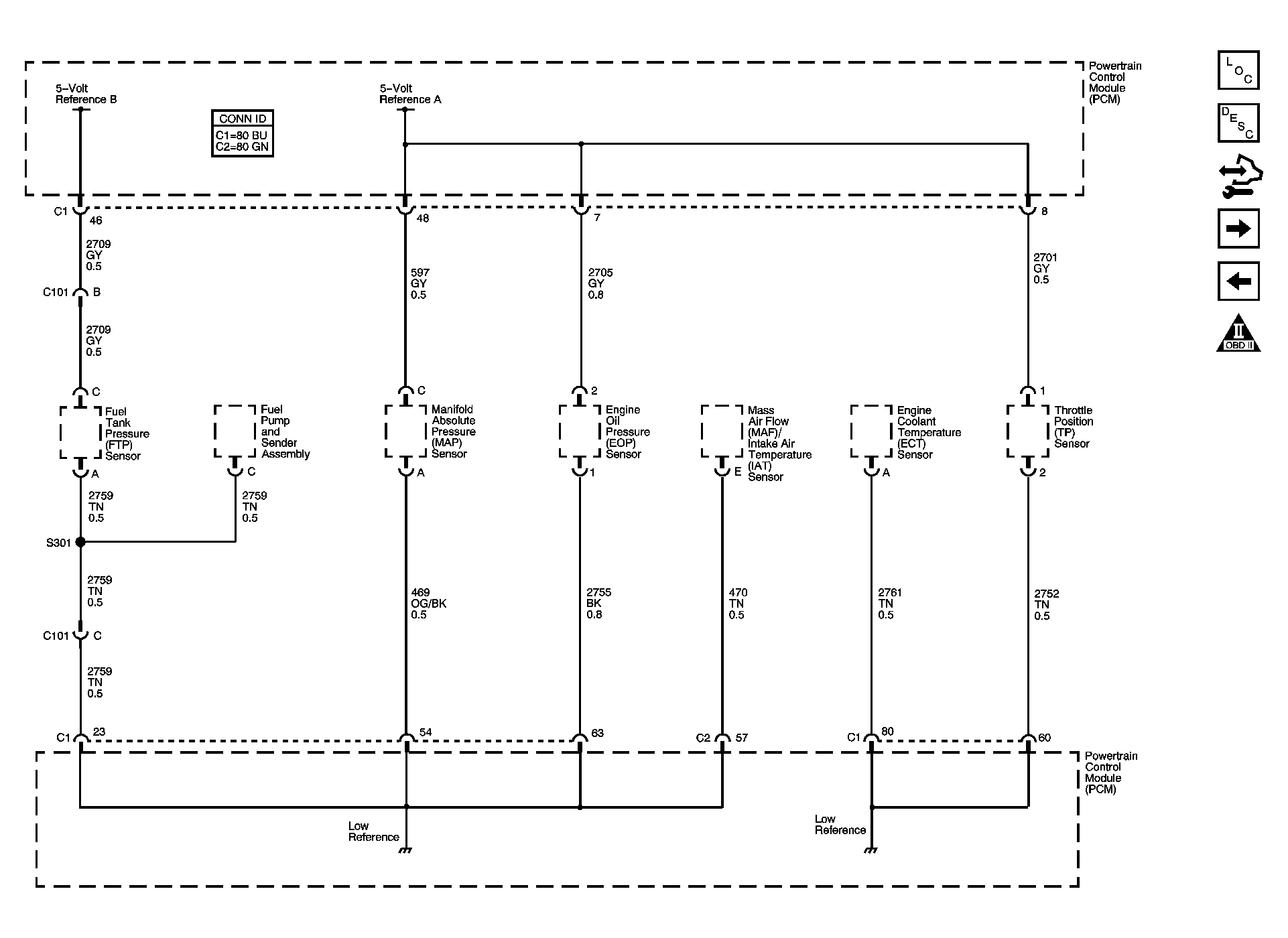

Fig 2: Engine Data Sensors - 5-Volt and Low Reference Schematics

Courtesy of GENERAL MOTORS CORP.

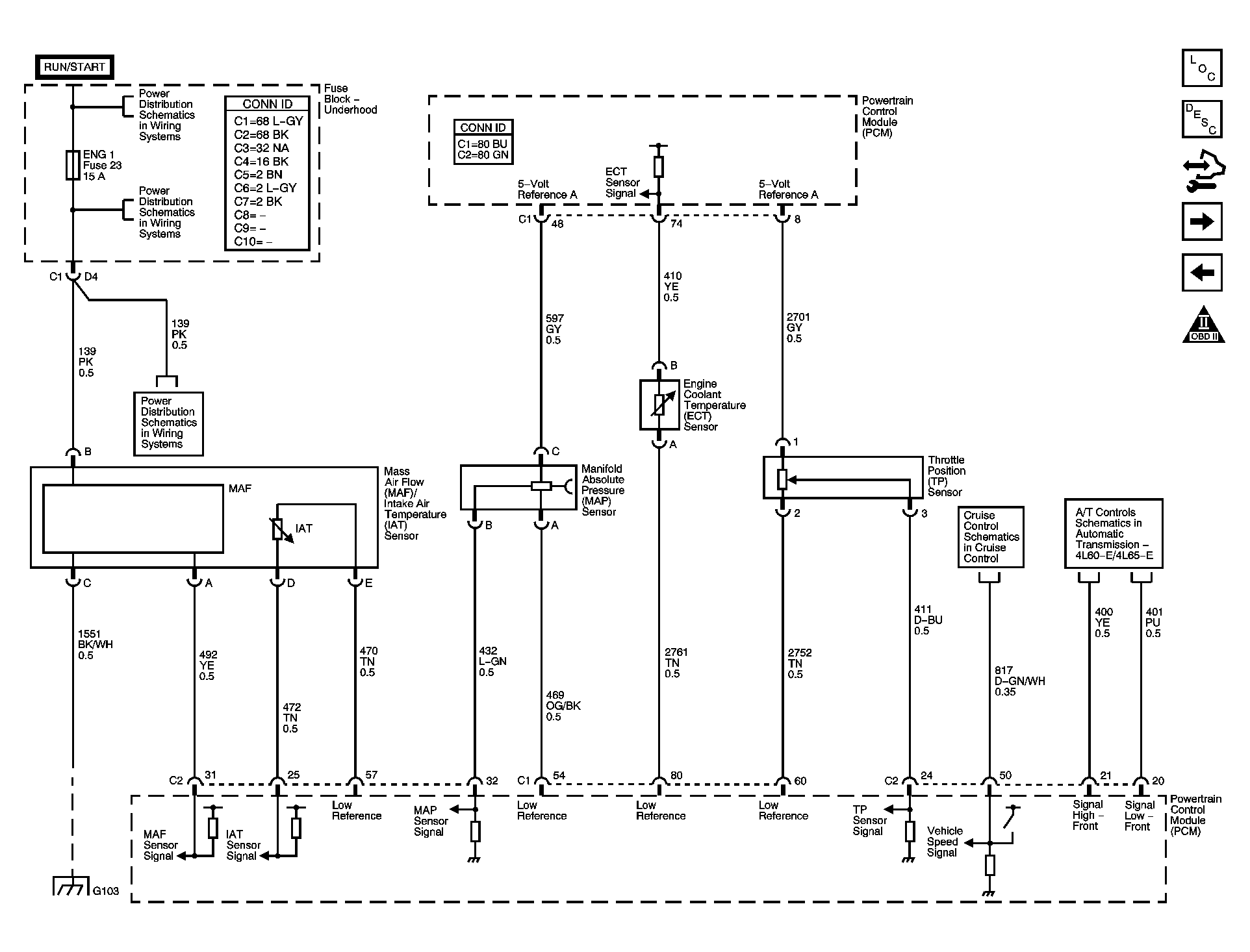

Fig 3: Engine Data Sensors - Pressure, Temperature and Position Schematics

Courtesy of GENERAL MOTORS CORP.

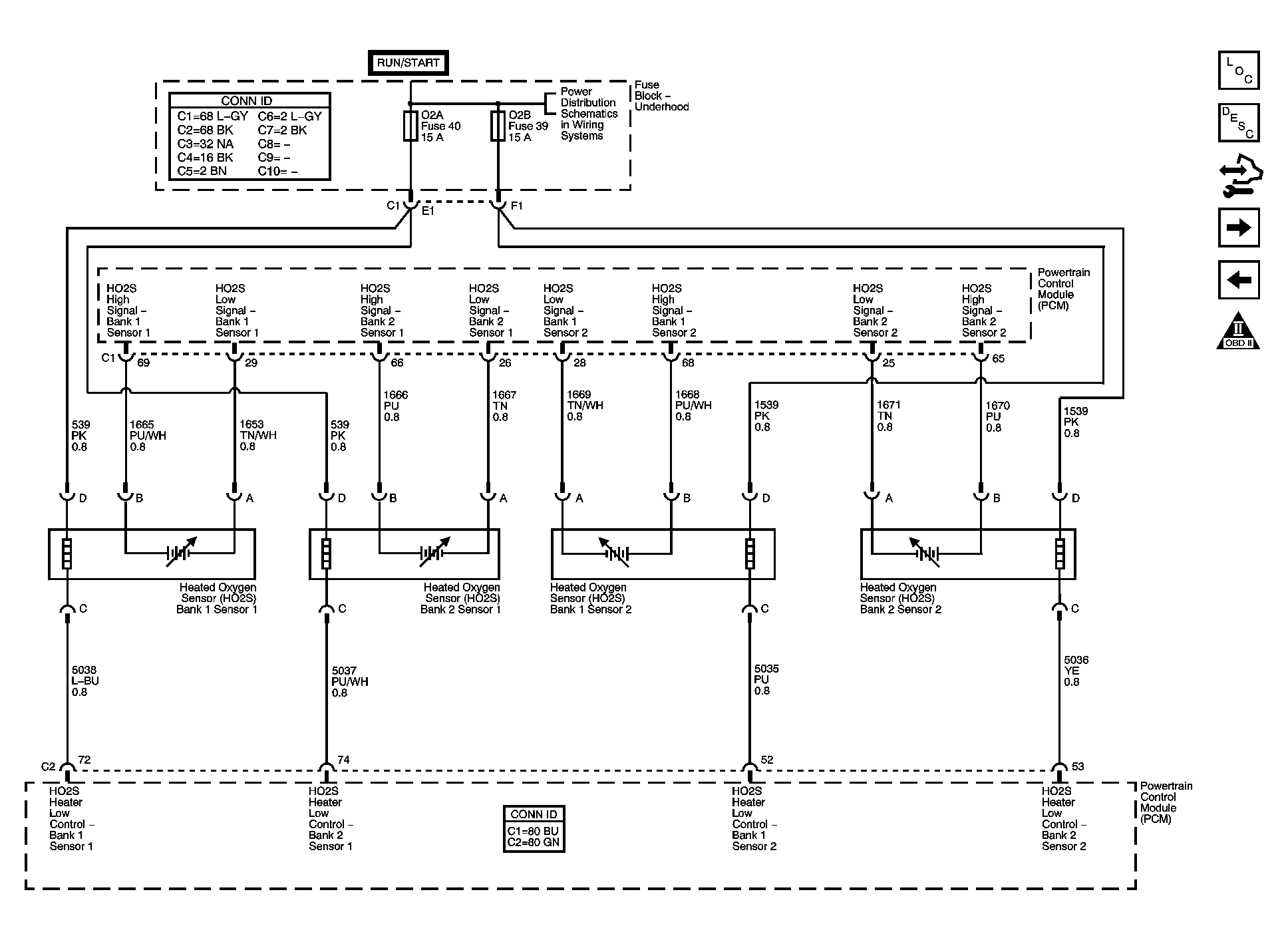

Fig 4: Engine Data Sensors - Oxygen Sensors Schematics

Courtesy of GENERAL MOTORS CORP.

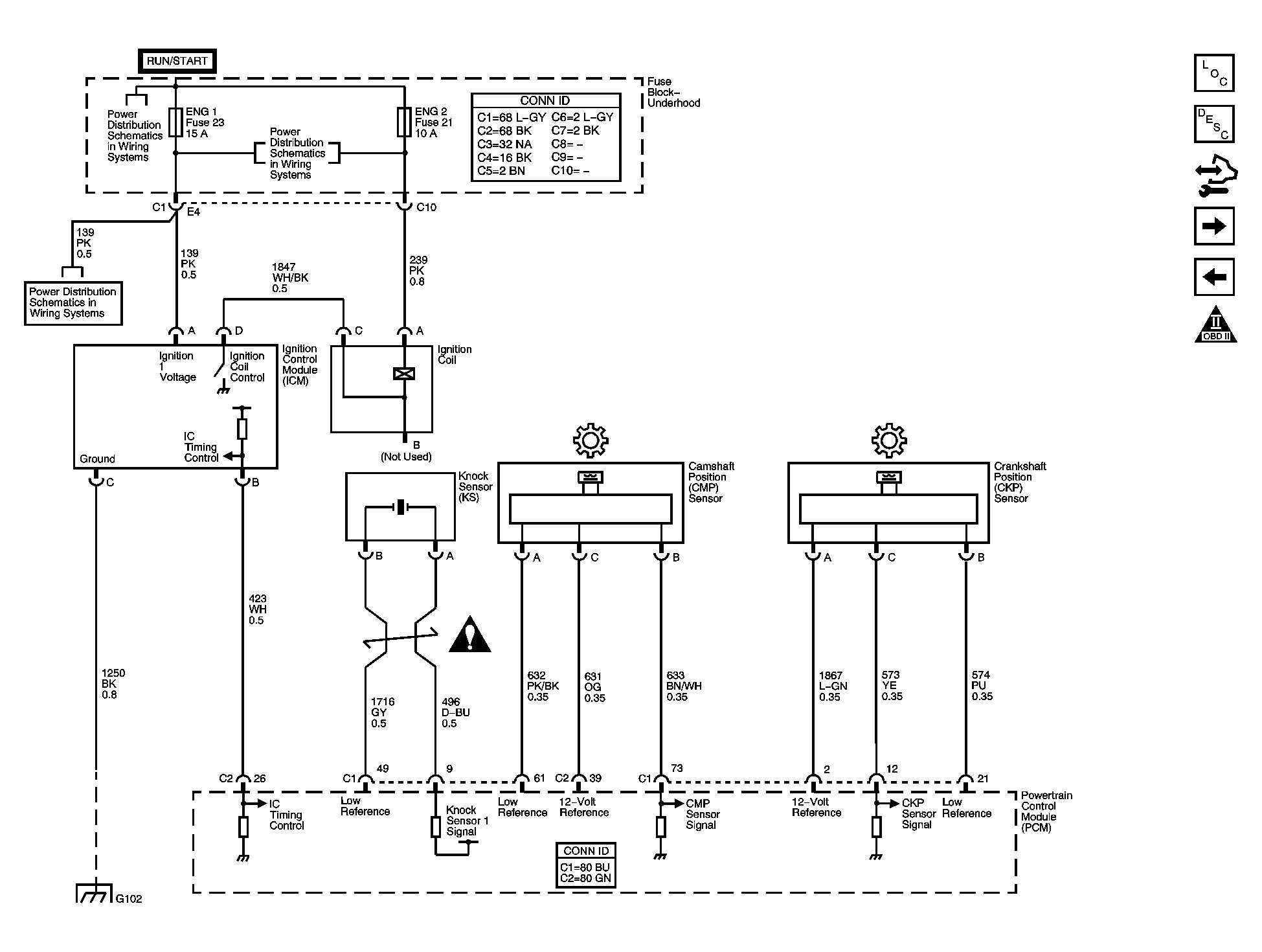

Fig 5: Ignition Controls Schematics

Courtesy of GENERAL MOTORS CORP.

Fig 6: Fuel Controls - Fuel Pump Controls Schematics

Courtesy of GENERAL MOTORS CORP.

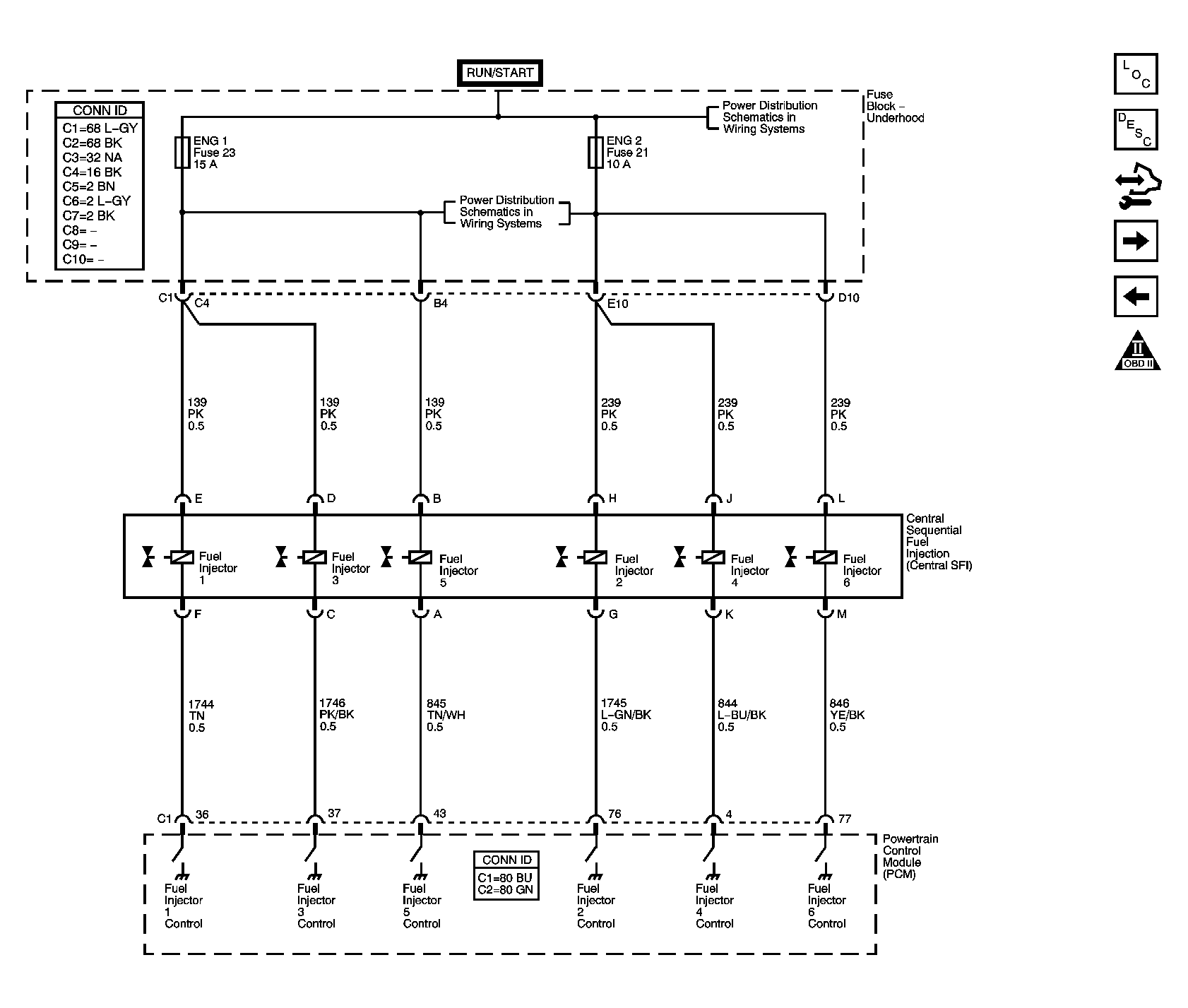

Fig 7: Fuel Controls - Fuel Injectors Schematics

Courtesy of GENERAL MOTORS CORP.

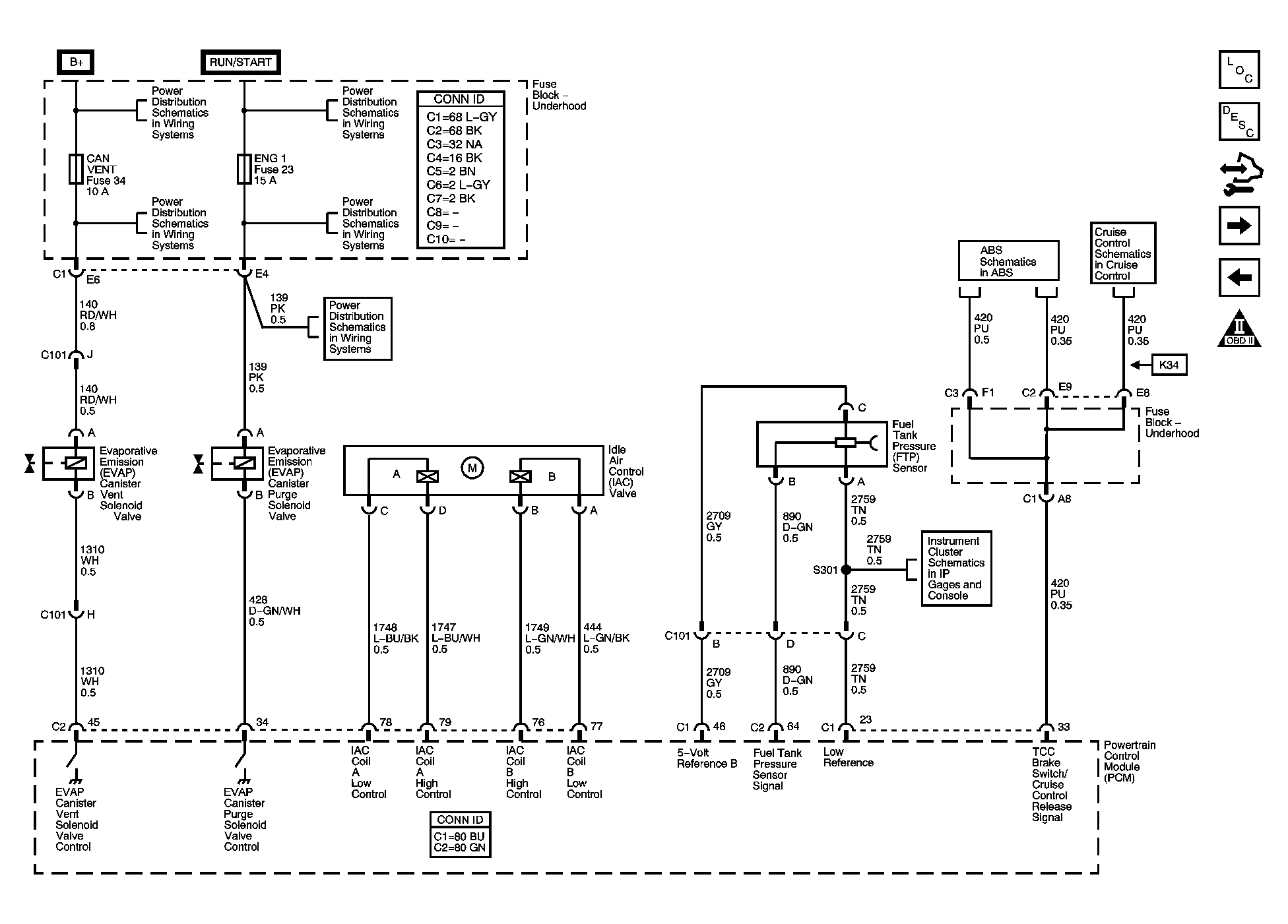

Fig 8: Fuel Controls - EVAP and Device Controls Schematics

Courtesy of GENERAL MOTORS CORP.

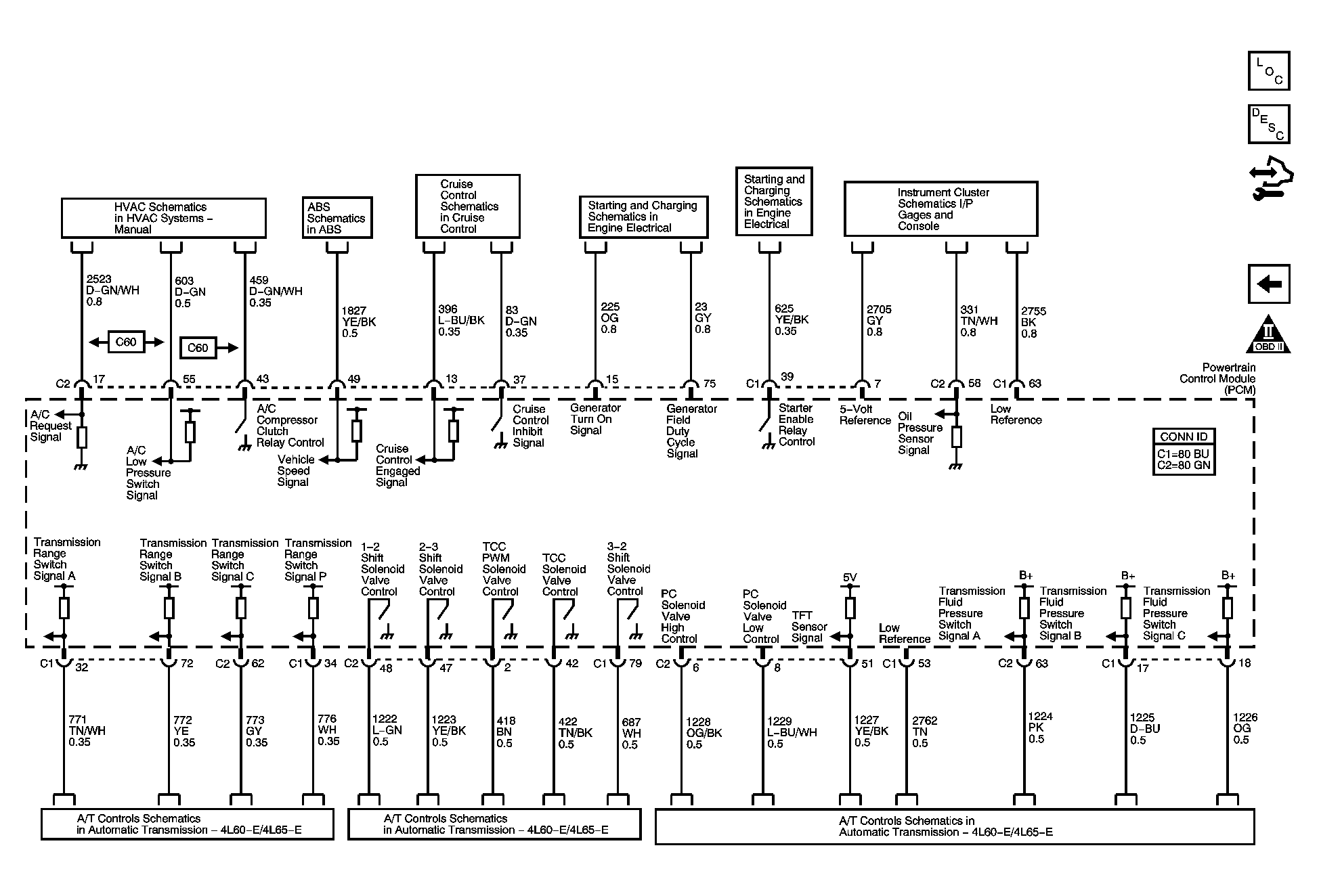

Fig 9: Controlled/Monitored Subsystem and Transmission References Schematics

Courtesy of GENERAL MOTORS CORP.
