Data Link Connector: Service and Repair

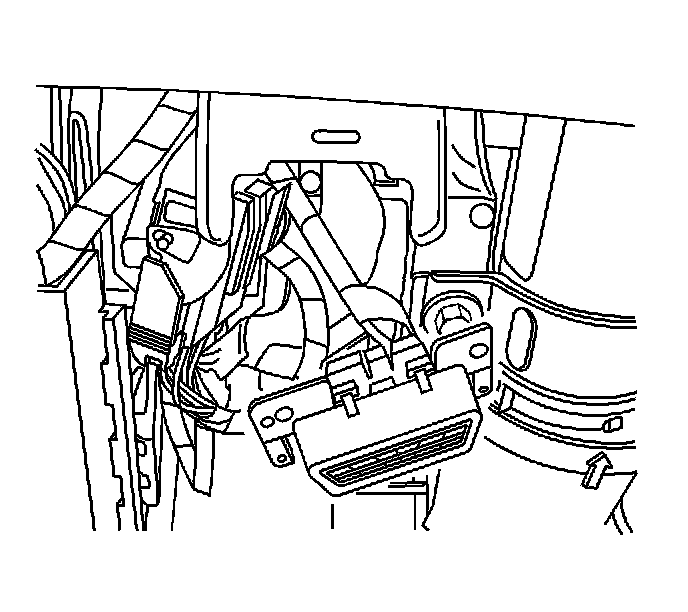

DATA LINK CONNECTOR REPLACEMENT

REMOVAL PROCEDURE




1. Disengage the data link connector (DLC) retainer from the bracket.
2. Reposition the DLC as required.

INSTALLATION PROCEDURE




1. Align the DLC to the bracket.
2. Press the DLC into the bracket. Make sure the retainer is completely engaged.
