Alignment

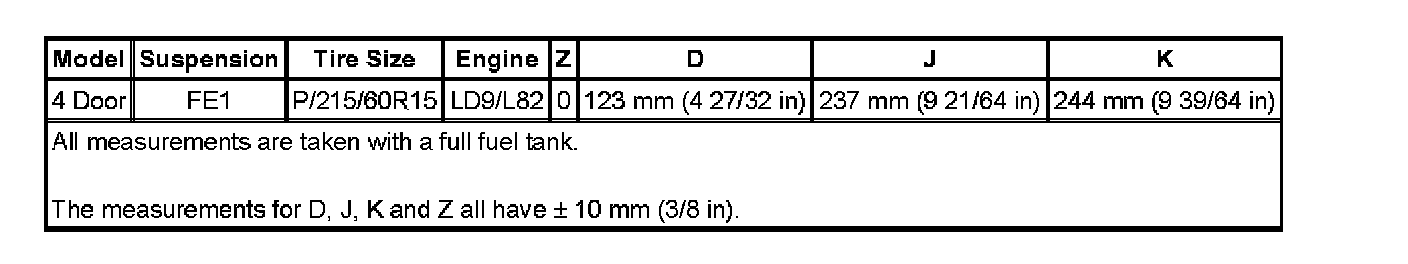

Ride Height Specifications:

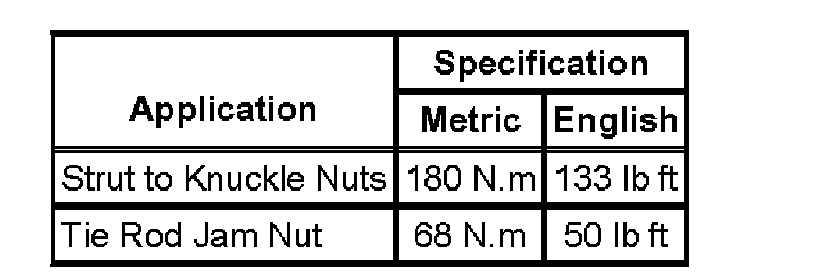

Fastener Tightening Specifications:

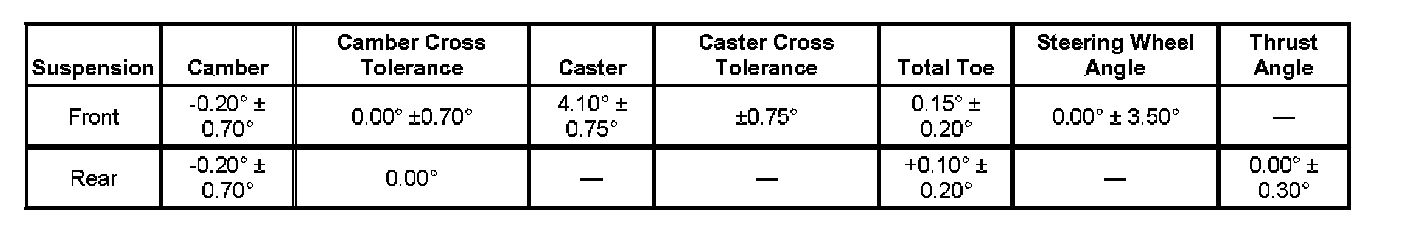

Wheel Alignment Specifications:
