Engine Mechanical Specifications

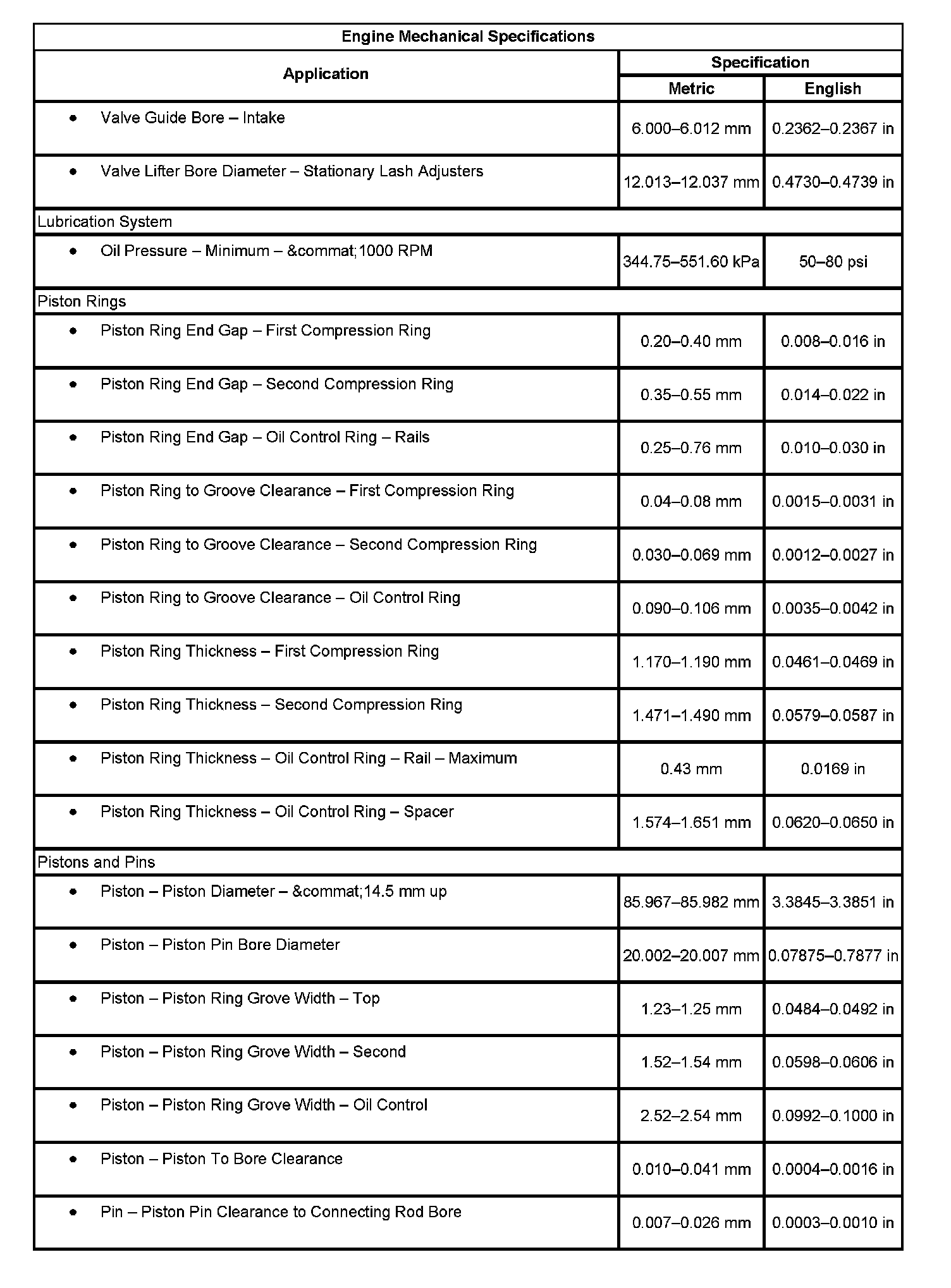

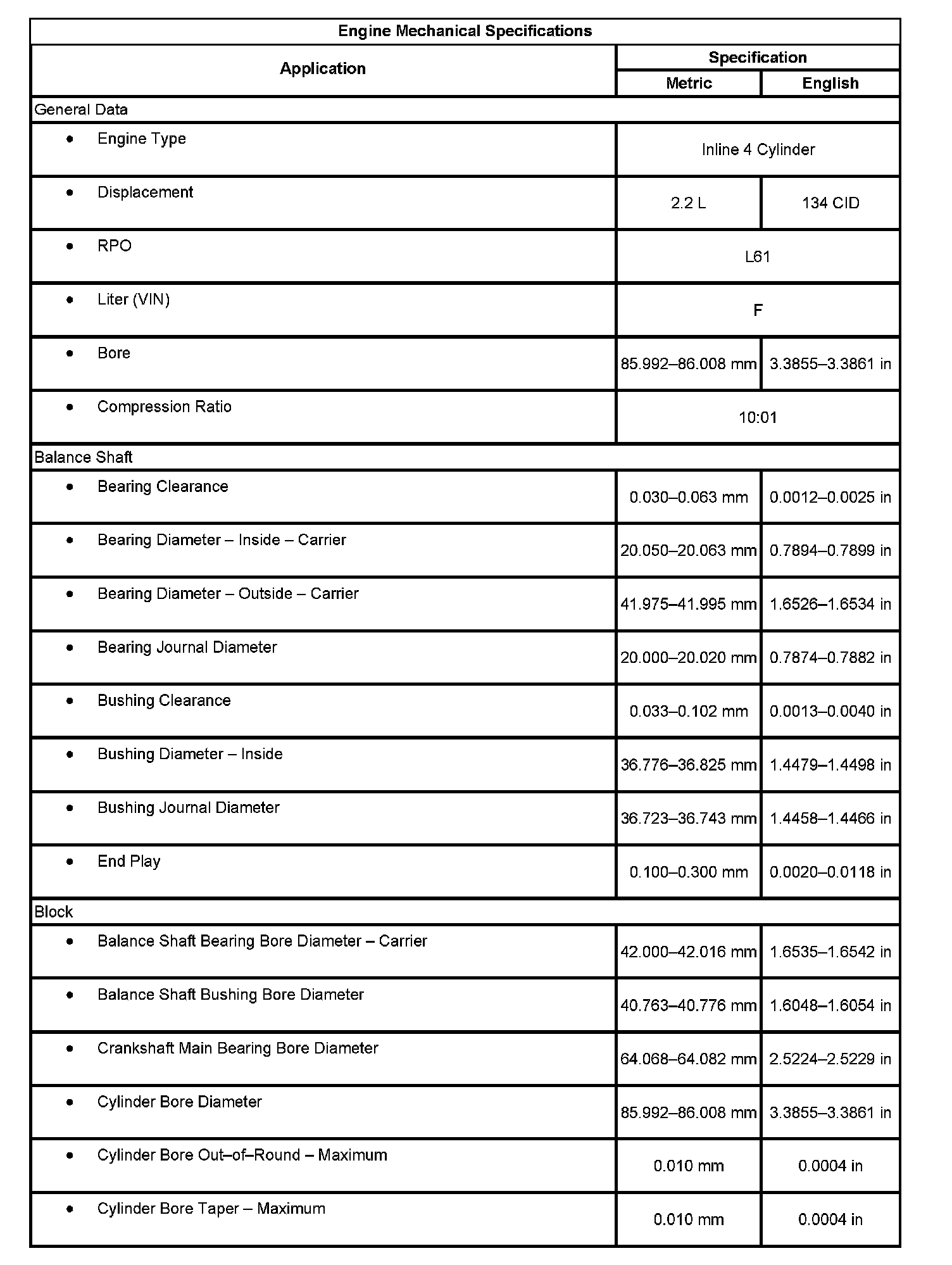

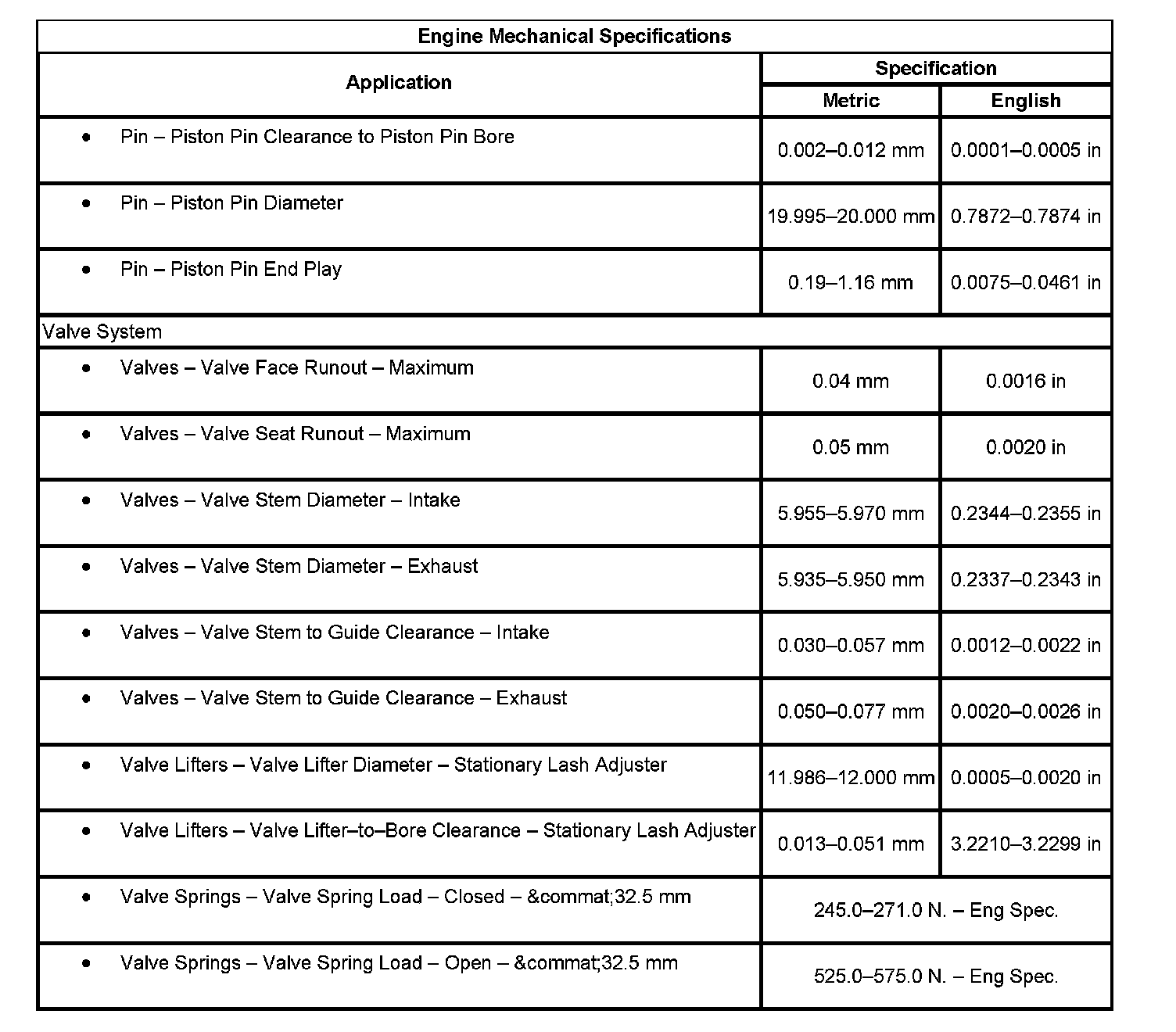

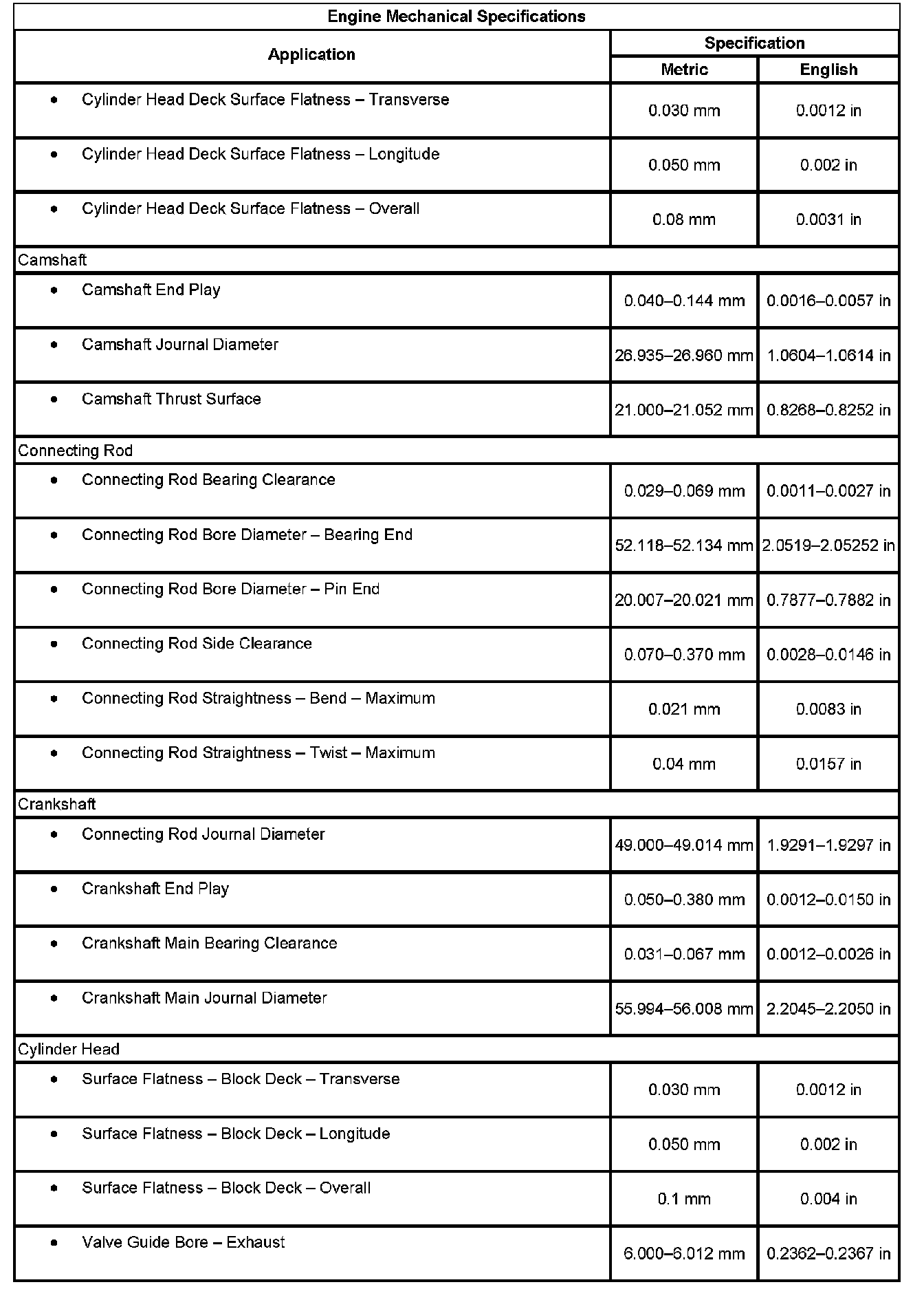

Engine Mechanical Specifications, Part 1:



Engine Mechanical Specifications, Part 2:



Engine Mechanical Specifications, Part 3:



Engine Mechanical Specifications, Part 4:
